2-1
CCP-8000 IM
Section 2
Installing the Options

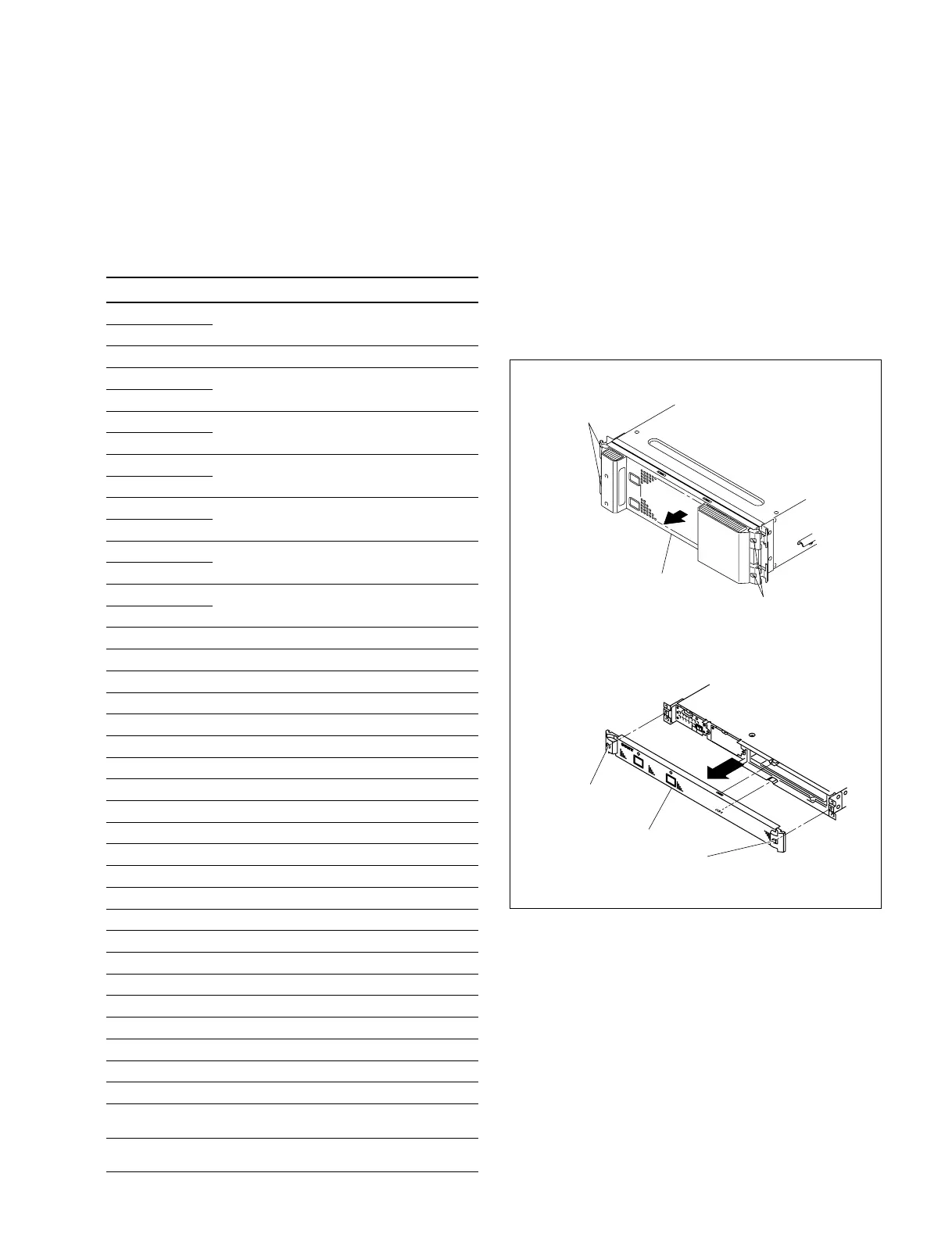

2-1. Opening and Closing the Front
Panel
Opening/Closing
1. Turn off the main power of the MKS-8010/8010A and
disconnect the AC power cord from the outlet.
2. Loosen the four screws (MKS-8010A : two screws)
(with drop-safe) and remove the front panel in the
direction of the arrow.
CCP-8000
The CCP-8000 is shipped from the factory with the neces-
sary modules (see below) already installed in the CCP-8000
in accordance with the system configuration for use.
The following options are available for the CCP-8000.
Model name
MKS-8010 SYSTEM CONTROL UNIT
MKS-8010A
MKS-8011 MENU PANEL
MKS-8013 32 AUX BUS MODULE
MKS-8013B
MKS-8014 24 AUX BUS MODULE
MKS-8014B
MKS-8015 16 AUX BUS MODULE
MKS-8015B
MKS-8017 32 XPT MODULE
MKS-8017B
MKS-8018 24 XPT MODULE
MKS-8018B
MKS-8019 16 XPT MODULE
MKS-8019B
MKS-8020 STANDARD TRANSITION MODULE
MKS-8021 SIMPLE TRANSITION RIGHT MODULE
MKS-8022 SIMPLE TRANSITION LEFT MODULE
MKS-8023 COMPACT KEY TRANSITION MODULE
MKS-8024 FLEXIPAD MODULE
MKS-8025 MEMORY CARD/USB MODULE
MKS-8025MS MEMORY STICK/USB MODULE
MKS-8026 10 KEY PAD MODULE
MKS-8027 COMPACT TRANSITION RIGHT MODULE
MKS-8028 COMPACT TRANSITION LEFT MODULE
MKS-8030 KEY FRAME MODULE
MKS-8031JS JOYSTICK MODULE
MKS-8031TB TRACKBALL MODULE
MKS-8032 DSK FADER MODULE
MKS-8033 UTILITY/SHOTBOX MODULE
MKS-8034DK DSK/FTB MODULE
MKS-8034FB FTB MODULE
MKS-8035 KEY CONTROL MODULE
MKS-8040 BLANK PANEL (1/3)
MKS-8041 BLANK PANEL (1/2)
MKS-8075 EXTENSION ADAPTOR
MKS-8076 MEMORY CARD/USB ADAPTOR
HK-PSU02 BACKUP POWER SUPPLY UNIT
(for MKS-8010A)
HK-PSU03 BACKUP POWER SUPPLY UNIT
(for MKS-8010)
Screws
(with drop-safe)
Screws
(with drop-safe)
Front panel
MKS-8010
MKS-8010A
Screw
(with drop-safe)
Screw
(with drop-safe)
Front panel
To Next Page
