Sony CDX-GT27 Service Manual

CDX-GT130/GT180/GT230/GT280/GT280S/GT282S
10

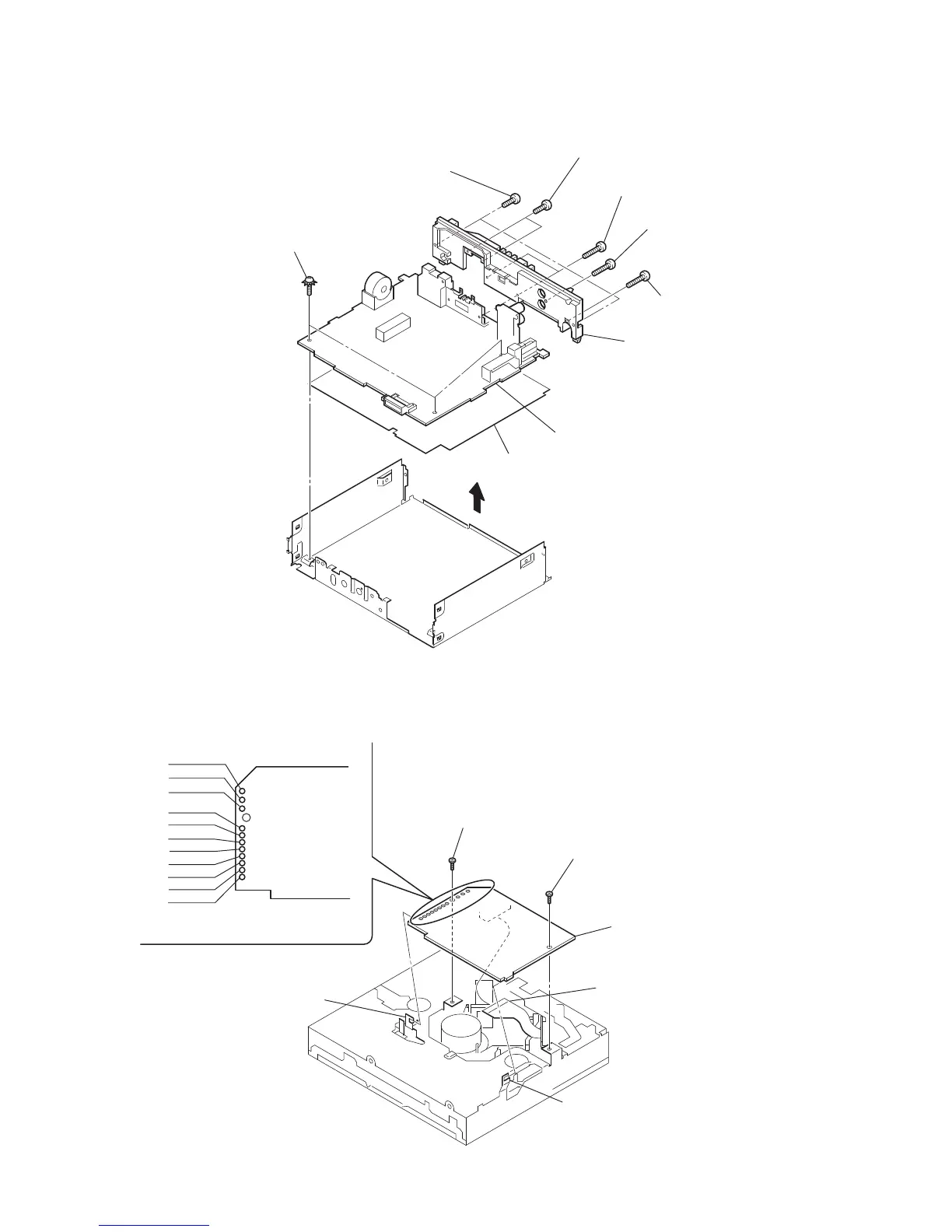

3-3. MAIN BOARD
3-4. SERVO BOARD
insulating sheet

 three ground point screws
(+PTT 2.6 × 6)
 heat sink
 MAIN board
 two screws
(+PTT 2.6 × 8)
 two screws
(+P 2.6 × 8)
 two screws
(+PTT 2.6 × 10)
 screw
(+P 2.6 × 10)
 screw
(+PTT 2.6 × 10)
SERVO board
claw
claw
SERVO board
toothed lock screw
(M 1.7 × 2.5)
toothed lock screw
(M 1.7 × 2.5)
Remove the eleven solders.
GRY
YEL
BLU
ORG
RED
BLK
RED
WHT
BLK
RED
WHT
optical pick-up (16 core)
(CN101)
