Sony CDX-GT27 Service Manual

30
CDX-GT130/GT180/GT230/GT280/GT280S/GT282S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1283-704-A MECHANICAL BLOCK ASSY (08)
102 A-1283-705-A DAXEV08//C
0 103 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
104 2-626-869-21 SCREW (M2X3), SERRATION

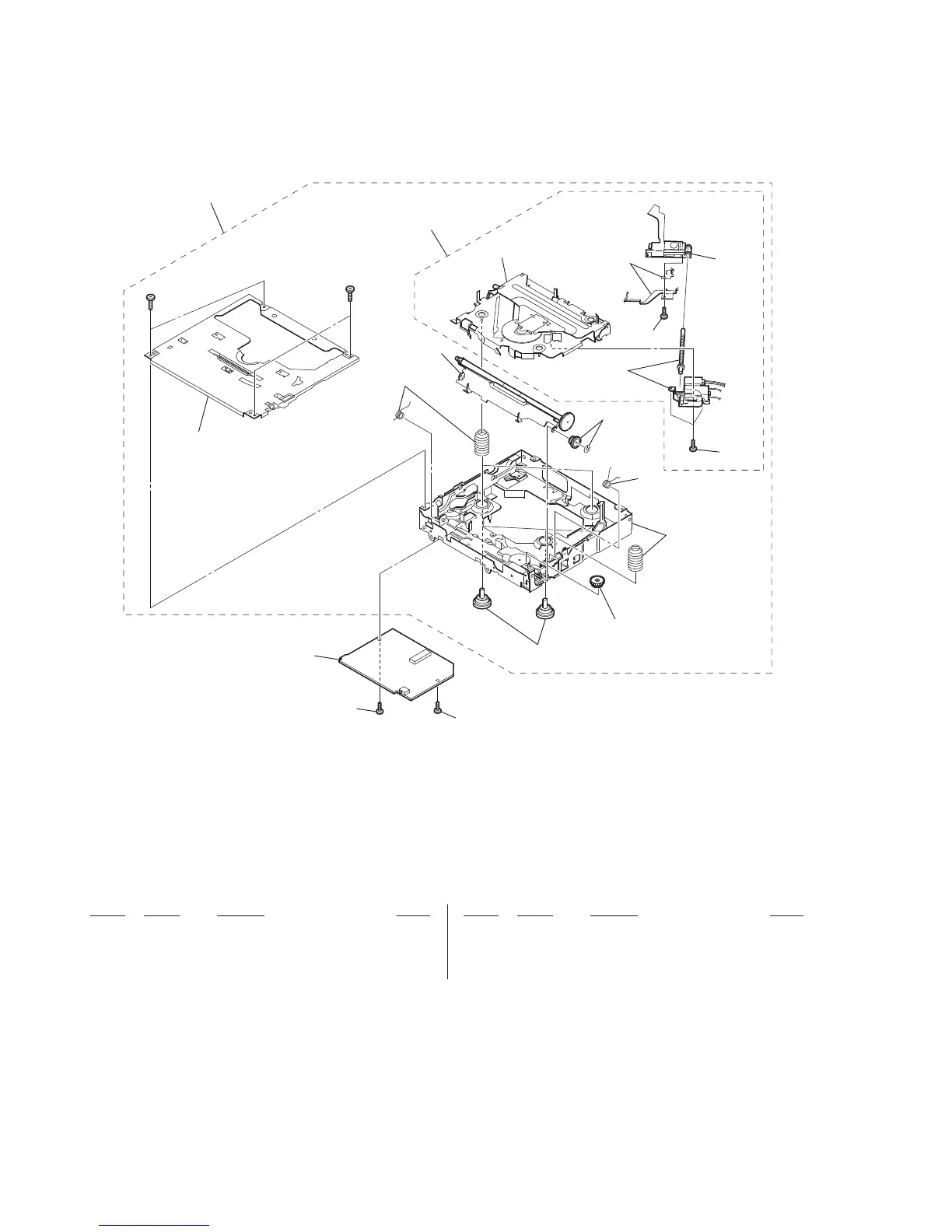

5-3. CD MECHANISM SECTION
(MG-101L-188/C)
105 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN
106 3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK
107 A-1542-217-A SERVO BOARD, COMPLETE
#7 7-627-000-00 SCREW, PRECISION +P 1.7X2.2 TYPE3
not supplied
#7
#7
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
101
102
103
105
104
107
106
106
