CDX-GT130/GT180/GT230/GT280/GT280S/GT282S
2
Type of disc Label on the disc
CD-DA
MP3*
WMA*
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
TEST DISCS
Please use the following test discs for the check on the CD
section.
YDES-18 (Part No. 3-702-101-01)
PATD-012 (Part No. 4-225-203-01)
SAFETY-RELATED COMPONET WARNING!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostat-
ic break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc refl ective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
• CD Play back
You can play CD-DA (also containing CD TEXT) and CD-
R/CD-RW (MP3/WMA fi les).
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-
NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
Dimensions: Approx. 178 × 50 × 179 mm
(7
1
/8 × 2 × 7
1
/8 in.) (w/h/d)
Mounting dimensions: Approx.
182 × 53 × 162 mm
(7
1
/4 × 2
1
/8 × 6
1
/2 in.) (w/h/d)
Mass: Approx. 1.2 kg (2 lb 11 oz)
Supplied accessories:
Card remote commander:
CDX-GT230/GT280/GT280S/GT282S: RM-X151
Parts for installation and connections (1 set)
Design and specifi cations are subject to change
without notice.
• Abbreviation
CND : Canadian model
MX : Mexican model
IND : Indian model
Model Part No.
CDX-GT130: US
4-000-325-0[]
CDX-GT180: E
4-106-962-0[]
4-106-963-0[]
CDX-GT230: CND
4-106-939-0[]
CDX-GT280: E
4-106-837-0[]
4-106-904-0[]
CDX-GT280: MX
4-106-910-0[]
CDX-GT280S: E
4-106-915-0[]
4-106-935-0[]
CDX-GT282S: IND
4-106-937-0[]

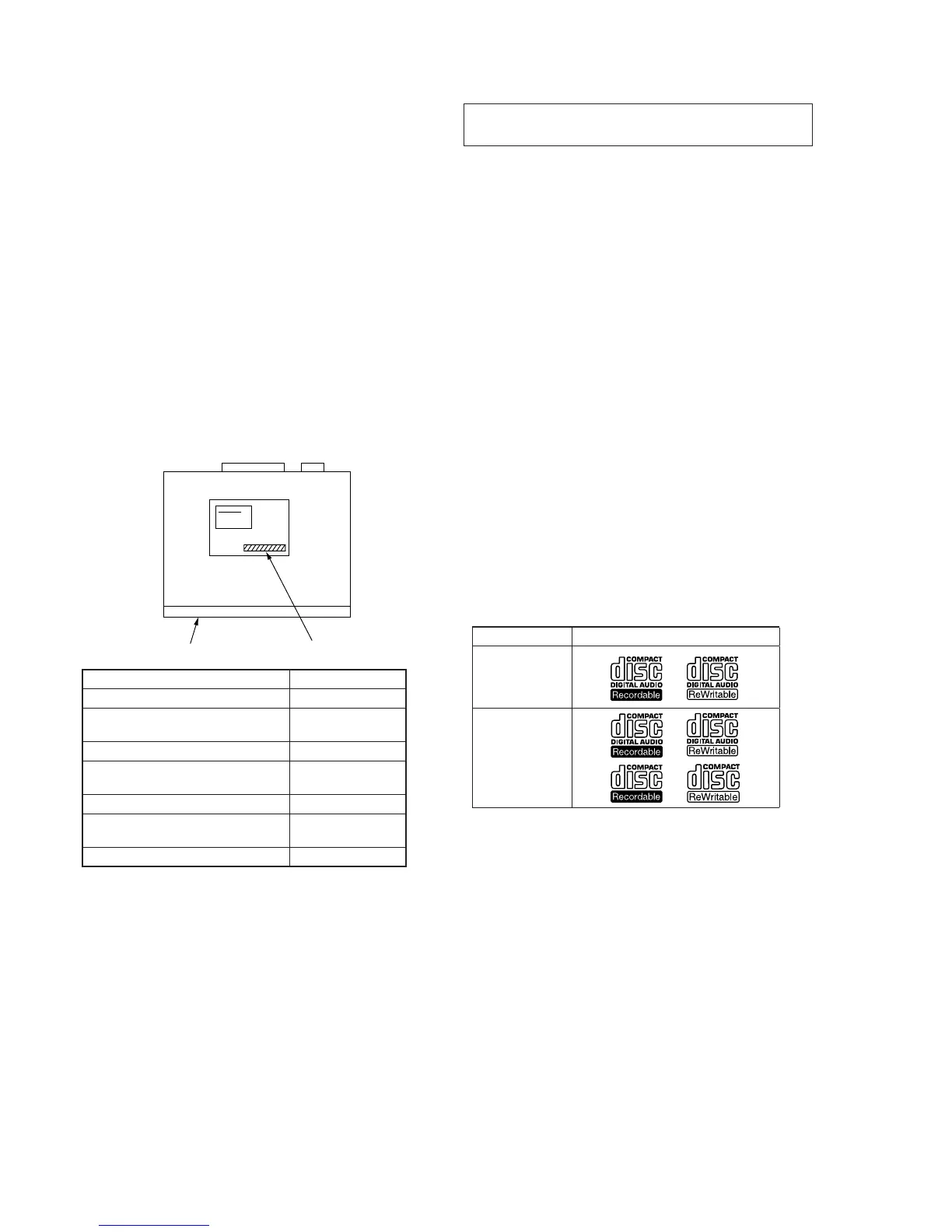

MODEL IDENTIFICATION
The CDX-GT180, CDX-GT230, CDX-GT280 and CDX280S
include the model manufactured in Chinese and the model manu-
factured in Thai.
This service manual guides the model manufactured in Chinese.
Check the part number specifi ed on the model number label when
performing service and inspection.
FRONT PANEL Part.No.
–Bottom View–
* CDX-GT230/GT280/GT280S/GT282S only
To Next Page
