CDX-GT130/GT180/GT230/GT280/GT280S/GT282S
12

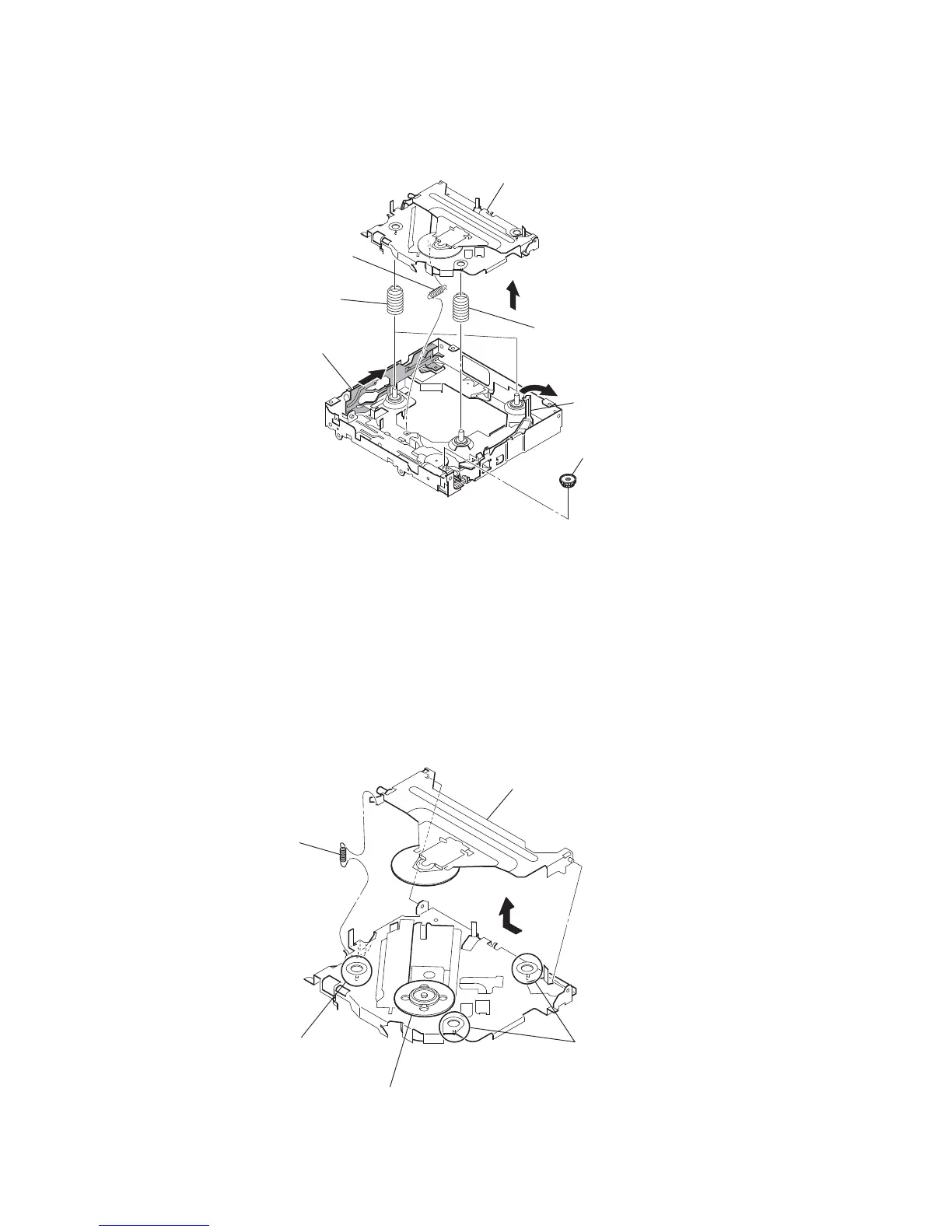

3-7.
CHASSIS (OP)
ASSY
3-8.
CHUCKING
ARM SUB ASSY
coil spring (damper) (natural)
coil spring (damper) (green)
chassis (OP) assy
tension spring (KF)
gear (LE1)
lever (D)
slider (R)
chucking arm sub assy
spring
Note: Have this portion receive the chassis.
Note: Have this portion receive the chassis.
Note: Be careful not to touch the turn table.
11
13
Table of Contents
Default Chapter
2
Dimensions
2
Table of Contents
3
1 Servicing Notes
5
Location of Controls
5
Card Remote Commander
5
Connections
6
Connections CDX-Gt180/280/280S/282S
7
2 General
5
3 Disassembly
8
Sub Panel Assy
9
CD Mechanism Block
9
Main Board
10
Servo Board
10
Chassis (T) Sub Assy
11
Roller Arm Assy
11
Chassis (OP) Assy
12
Chucking Arm Sub Assy
12
Sled Motor Assy
13
3-10. Optical Pick-Up Section
14
3-11. Optical Pick-Up
14
4 Diagrams
15
Block Diagram -Main Section
15
Block Diagram -Display Section
16
Printed Wiring Board -Main Section
17
Schematic Diagram -Main Section (1/3)
18
Schematic Diagram -Main Section (2/3)
19
Schematic Diagram -Main Section (3/3)
20
Printed Wiring Boards -Key Section
21
Schematic Diagram -Key Section
22
IC Block Diagrams
23
5 Exploded Views
28
Main Section
28
Front Panel Section
29
CD Mechanism Section (Mg-101L-188/C)
30
6 Electrical Parts List
31
