Cautions
This unit is designed for negative ground (earth) 12 V
DC operation only.
Do not get the leads under a screw, or caught in moving
parts (e.g. seat railing).
Before making connections, turn the car ignition off to
avoid short circuits.
Connect the yellow and red power supply leads only
after all other leads have been connected.
Run all ground (earth) leads to a common ground
(earth) point.
Be sure to insulate any loose unconnected leads with
electrical tape for safety.
The use of optical instruments with this product will
increase eye hazard.
Notes on the power supply lead (yellow)
When connecting this unit in combination with other
stereo components, the connected car circuit’s rating
must be higher than the sum of each component’s fuse.
When no car circuits are rated high enough, connect
the unit directly to the battery.
Parts Iist
The numbers in the list are keyed to those in the
instructions.
The bracket and the protection collar are
attached to the unit before shipping. Before mounting
the unit, use the release keys to remove the bracket
from the unit. For details, see “Removing the
protection collar and the bracket ()” on the reverse
side of the sheet.
Keep the release keys for future use as they are
also necessary if you remove the unit from your
car.
Caution
Handle the bracket carefully to avoid injuring your
fingers.
Catch
Note
Before installing, make sure that the catches on both sides of the bracket
are bent inwards 2 mm (
3
/32 in). If the catches are straight or bent
outwards, the unit will not be installed securely and may spring out.

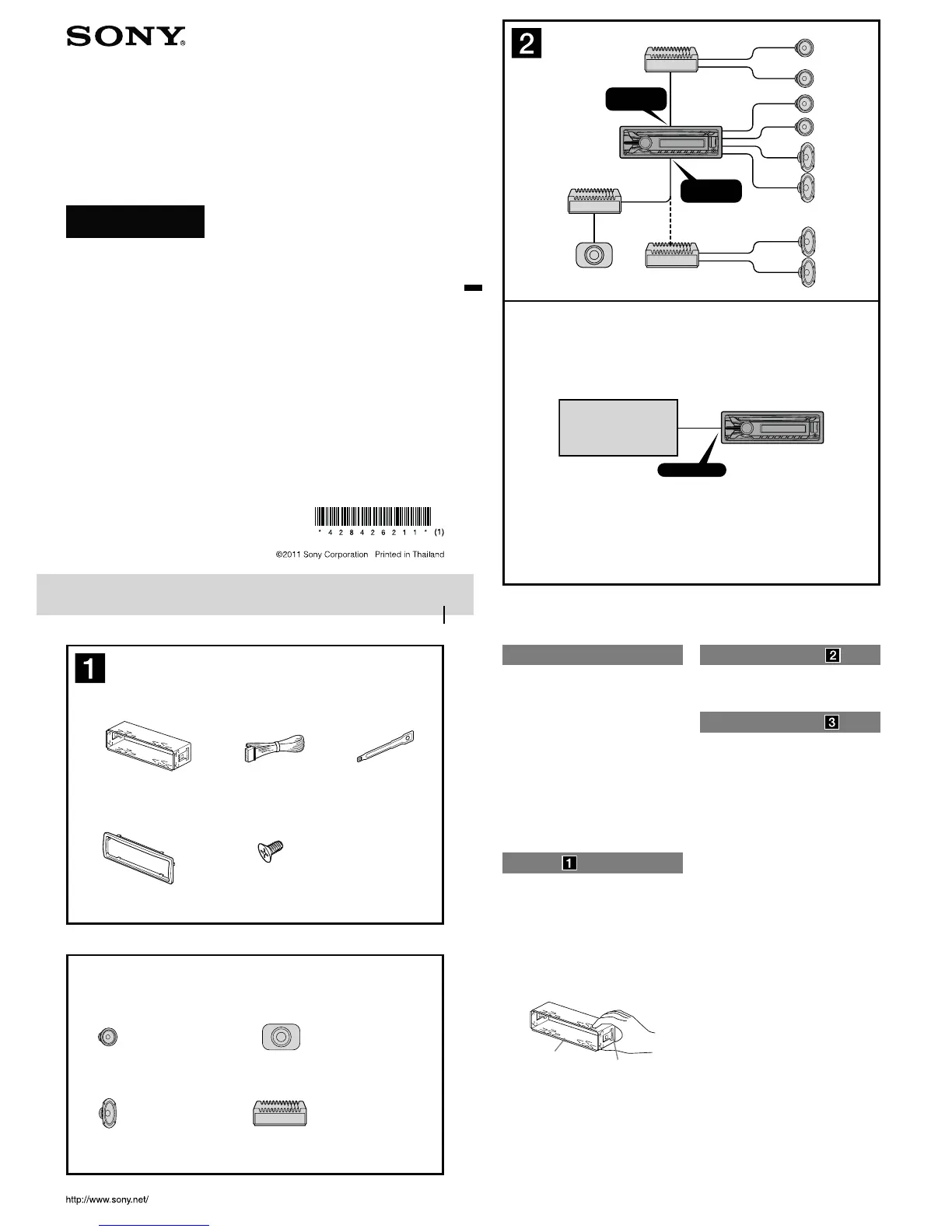

Connection example
Notes (-A)
Be sure to connect the ground (earth) lead before connecting the
amplifier.
The alarm will only sound if the built-in amplifier is used.
Connection diagram
To a metal surface of the car
First connect the black ground (earth) lead, then connect the yellow
and red power supply leads.
To the power antenna (aerial) control lead or
power supply lead of antenna (aerial) booster
Notes
It is not necessary to connect this lead if there is no power
antenna (aerial) or antenna (aerial) booster, or with a
manually-operated telescopic antenna (aerial).
When your car has a built-in FM/AM antenna (aerial) in the rear/
side glass, see “Notes on the control and power supply leads.”
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting any other system
may damage the unit.
To a car’s illumination signal
Be sure to connect the black ground (earth) lead to a metal surface
of the car first.
To the +12 V power terminal which is energized
in the accessory position of the ignition switch
Notes
If there is no accessory position, connect to the +12 V power
(battery) terminal which is energized at all times.
Be sure to connect the black ground (earth) lead to a metal
surface of the car first.
When your car has a built-in FM/AM antenna (aerial) in the rear/
side glass, see “Notes on the control and power supply leads.”
To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground (earth) lead to a metal surface
of the car first.
A
SIRIUSXM IN
Satellite radio tuner
(SiriusXM)*
Syntoniseur radio satellite
(SiriusXM)*
* not supplied
non fourni
Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
× 2
× 4
Power amplifier
Amplificateur de puissance
Front speaker
Haut-parleur avant
Subwoofer
Caisson de graves
Rear speaker
Haut-parleur arrière
B
4-284-262-11 (1)
FM/AM
Compact Disc Player
Installation/Connections
Installation/Connexions
CDX-GT565UP
FRONT
AUDIO OUT
REAR
/
SUB
AUDIO OUT
To Next Page
