Getting Started
The connector and color tube of the speaker cords are the same color as the label of the jacks to be
connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker
cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the
speaker cord insulation in the speaker terminals.
When connecting to the unit, insert the connector until it clicks.
DAV-DZ270

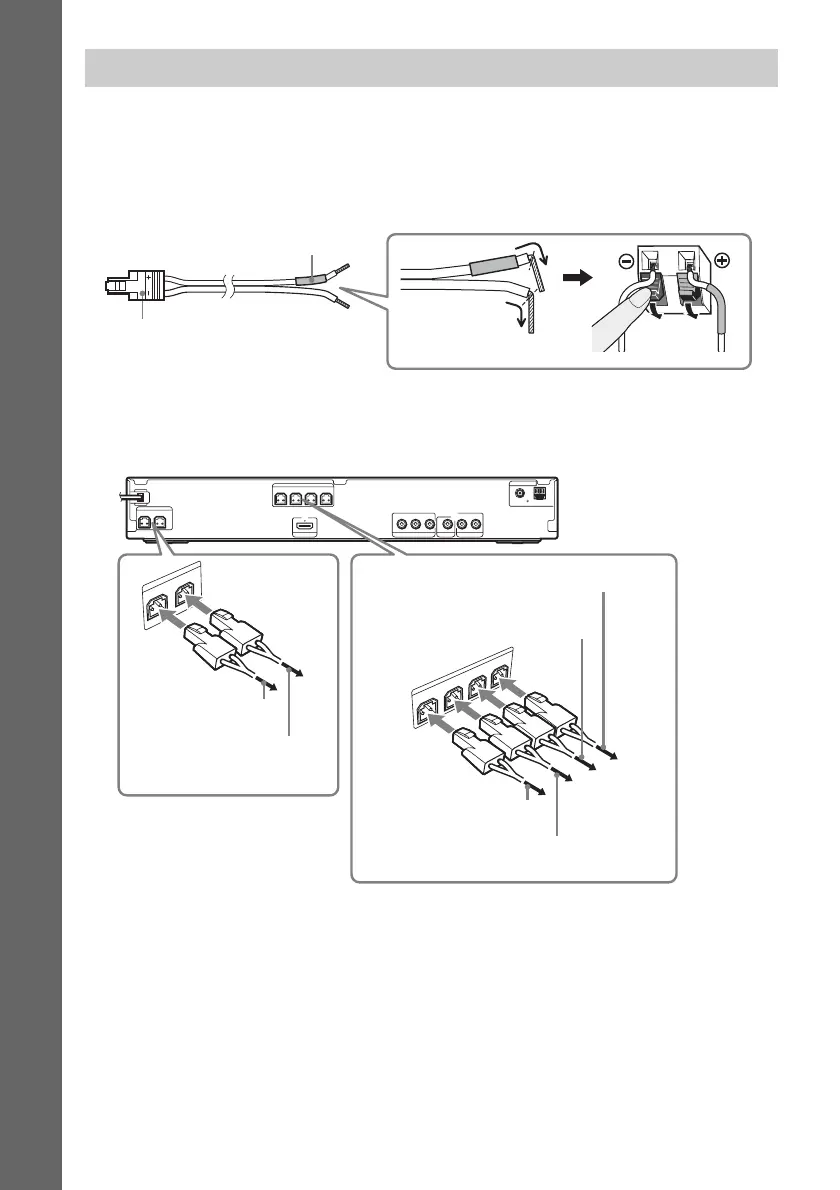

1 Connecting the Speakers
Color tube
(–)
(+)
Connector
Rear of speaker
CENTER SUBWOOFER
AUDIO IN
P
B
/C
B
P
R
/C
R
Y
LR
FRONT R FRONT L SUR R SUR L
SPEAKER
VIDEO OUT TV/VIDEO
SPEAKER
COMPONENT VIDEO OUT
COAXIAL 75
AM
FM
ANTENNA
HDMI OUT
SPEAKER
F
R
O
N
T
L
S
U
R
R
S
U
R L
F
R
O
N
T
R
SPEAKER
S
U
B
W
O
O
F
E
R
C
E
N
T
E
R
Rear panel
To the center speaker
(green)
To the subwoofer
(purple)
To the front speaker (R)
(red)
To the front speaker (L) (white)
To the surround speaker (L)
(blue)
To the surround speaker (R)
(gray)
