Sony DAV-FX100W - MAIN Board, H;P Board; FL Board, KEY Board, LED Board

13
HCD-FX100W
7 LED board
8 disc button sub assy
qs play button sub assy
qa KEY board
4 FL board
6 six screws
(DIA. 2.6
× 8)
5 five screws
(DIA. 2.6
× 8)
0 five screws
(DIA. 2.6
× 8)
9 four screws
(DIA. 2.6
× 8)
1 four screws
(DIA. 2.6
× 8)
2 connector
(CN801)
3 wire (flat type)
15p(CN802)
qg MAIN board
2 H/P board
qs heat sink
qf five screws
(+BV 3)
1 two screws
(+BV 3)
qd four screws
(+BV 3)
0 two screws
(+BV 3)
7 wire (flat type)
23p(CN507)
6 wire (flat type)
27p(CN502)
4 wire (flat type)
19p(CN509)
5 wire (flat type)
11p(CN505)
8 wire (flat type)
11p(CN504)
9 wire (flat type)
11p(CN512)
3 connector (CN309
)
qa screw
(+BVTP 3
× 14)

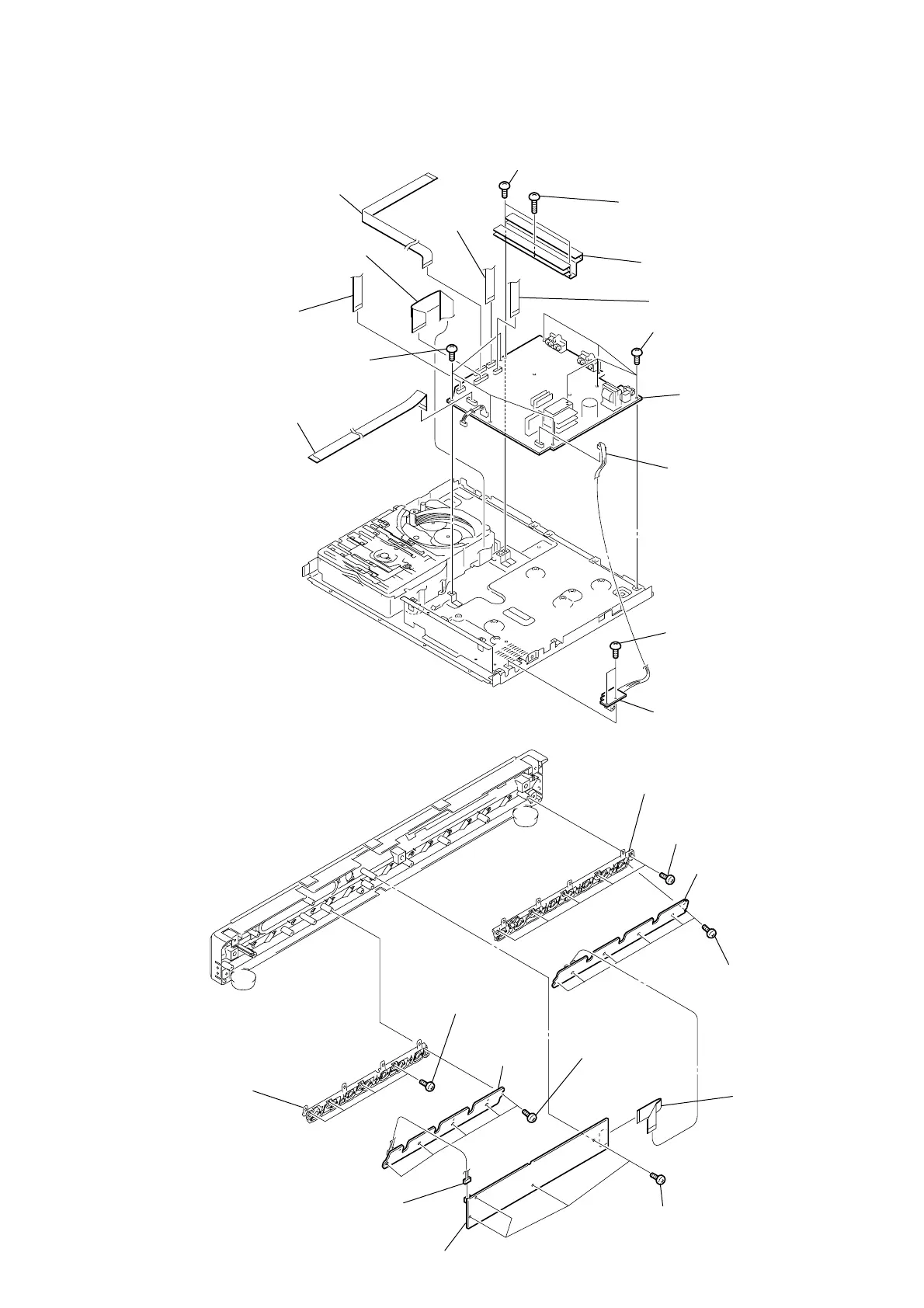

3-7. MAIN BOARD, H/P BOARD
3-8. FL BOARD, KEY BOARD, LED BOARD
