Sony DAV-FX100W - Cam (Gear); SENSOR Board

19
HCD-FX100W
qf cam (gear)
: Note
qs gear(mode cam)
0 gear (mode C)
:Note
4 gear (mode 5)
8 gear (mode D)
6 gear (mode 5)
1 screw(PTPWH2.6 × 8)
7 screw (PTPWH2.6 × 8)
9 screw
(PTPWH2.6
× 8)
qa screw
(PTPWH2.6
× 8)
3 screw (PTPWH2.6 × 8)
5 screw (PTPWH2.6 × 8)
2 pulley
(mode deceleration)
qd screw
Note: Refer to assembly
(Section 4).
ql harness
qd gear (eject lock)
q; cam (eject lock)
: Note
qh two claws
qj rotary encode
r
(S771)
qf gear
(mode B)
w; screw
(BVTP2.6
× 8)
qg screw
(PTPWH2.6
× 8
)
wa SENSOR board
8 shaft
(shutter)
7 compression spring
(shutter)
qs cam (BU U/D)
qa screw
(PTPWH2.6
× 8)
3 screw
(BVTP2.6
× 8)
1 screw
(PTPWH2.6
× 8)
4 two screws
(BVTP2.6
× 8)
2 lever shutter (A)
5 base (shutter) block
6 gear (mode A)
9 screw
(PTPWH2.6
× 8)
qk claw
Note: Refer to assembly (Section 4).

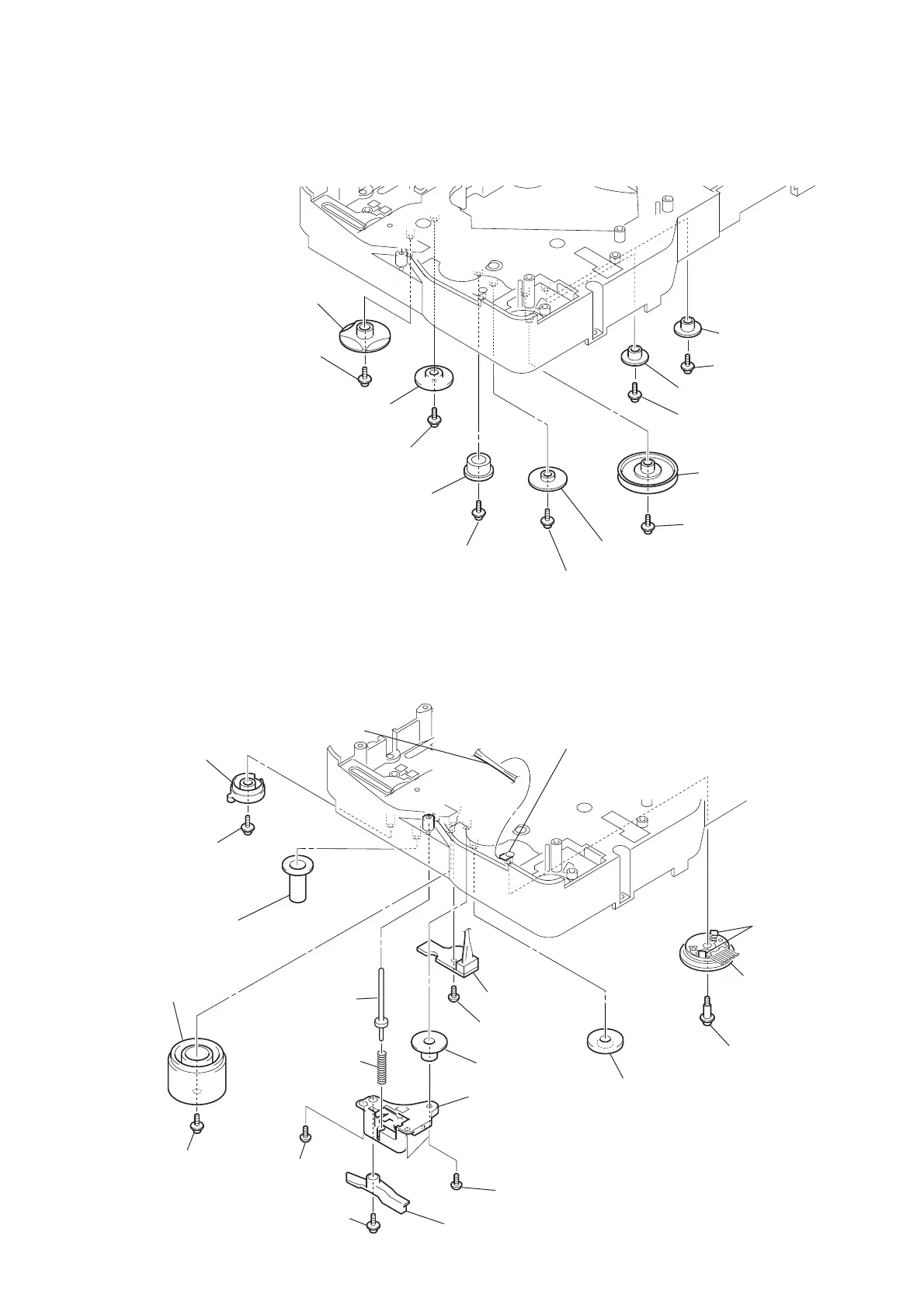

3-19. CAM (GEAR)
3-20. SENSOR BOARD
