HCD-FX100W
HCD-FX100W

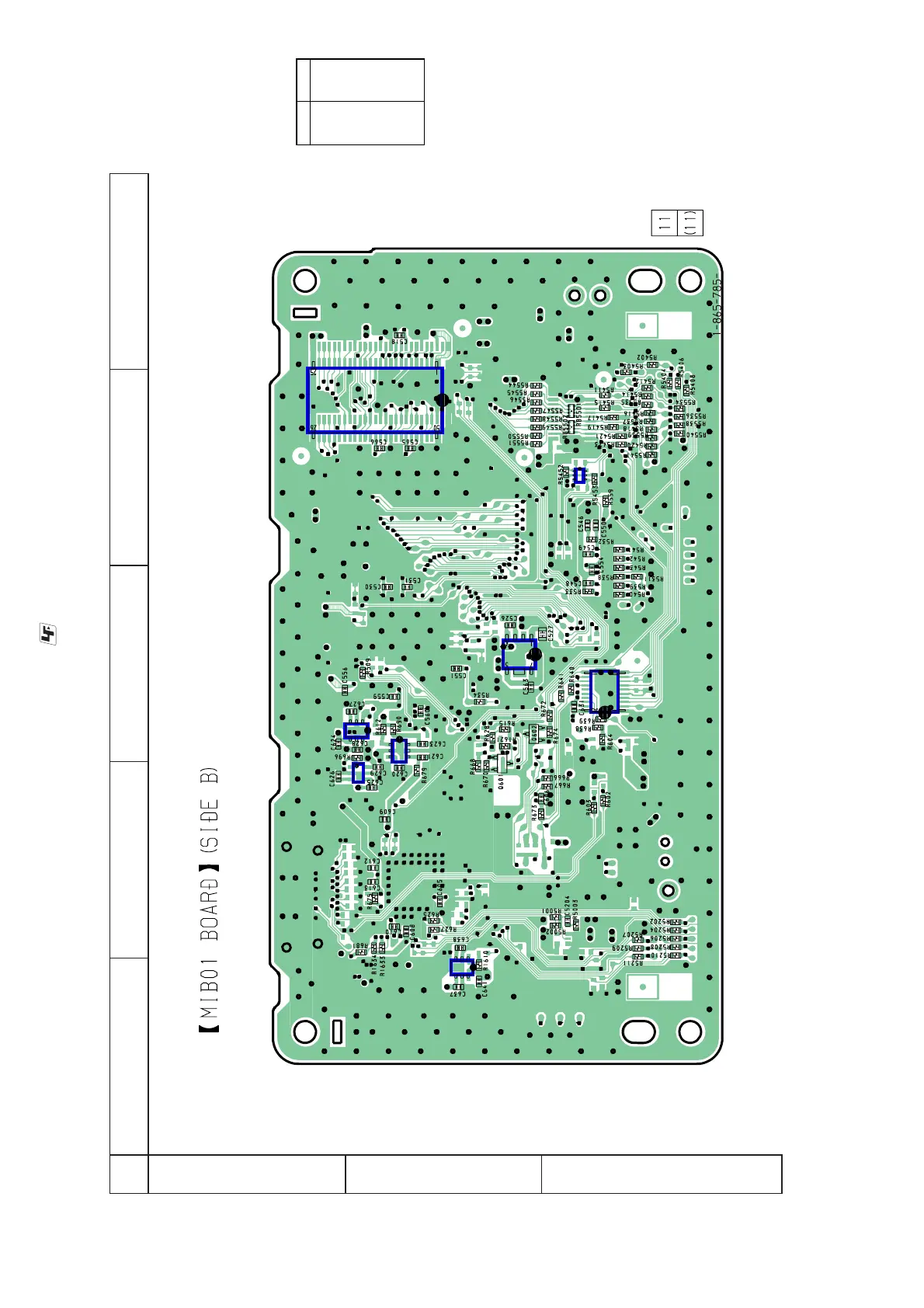

7-28. PRINTED WIRING BOARD – MIB01 SECTION (SIDE B) –
• See page 29 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No.
Location
IC111 C-4 IC505 B-3 IC509 B-4 IC604 B-2 IC605 B-1 IC606 B-2 IC607 A-3 IC608 C-3 Q601 B-2 Q602 B-3
IC509
IC505
IC111
IC604
IC605
IC606
IC607
IC608
4 61
3
3
S
S
1
46
31
46
31 46
12
A B
C
345

Sony DAV-FX100W Specifications

General

Type	Home Theater System
Channels	5.1
Total Power Output	1000 W
DVD Player	Yes
USB Input	No
Bluetooth	No
Radio Tuner	FM/AM
Optical Digital Input	Yes
Coaxial Digital Input	Yes
Speaker Type	Satellite
Subwoofer	Yes
