HCD-FX100W

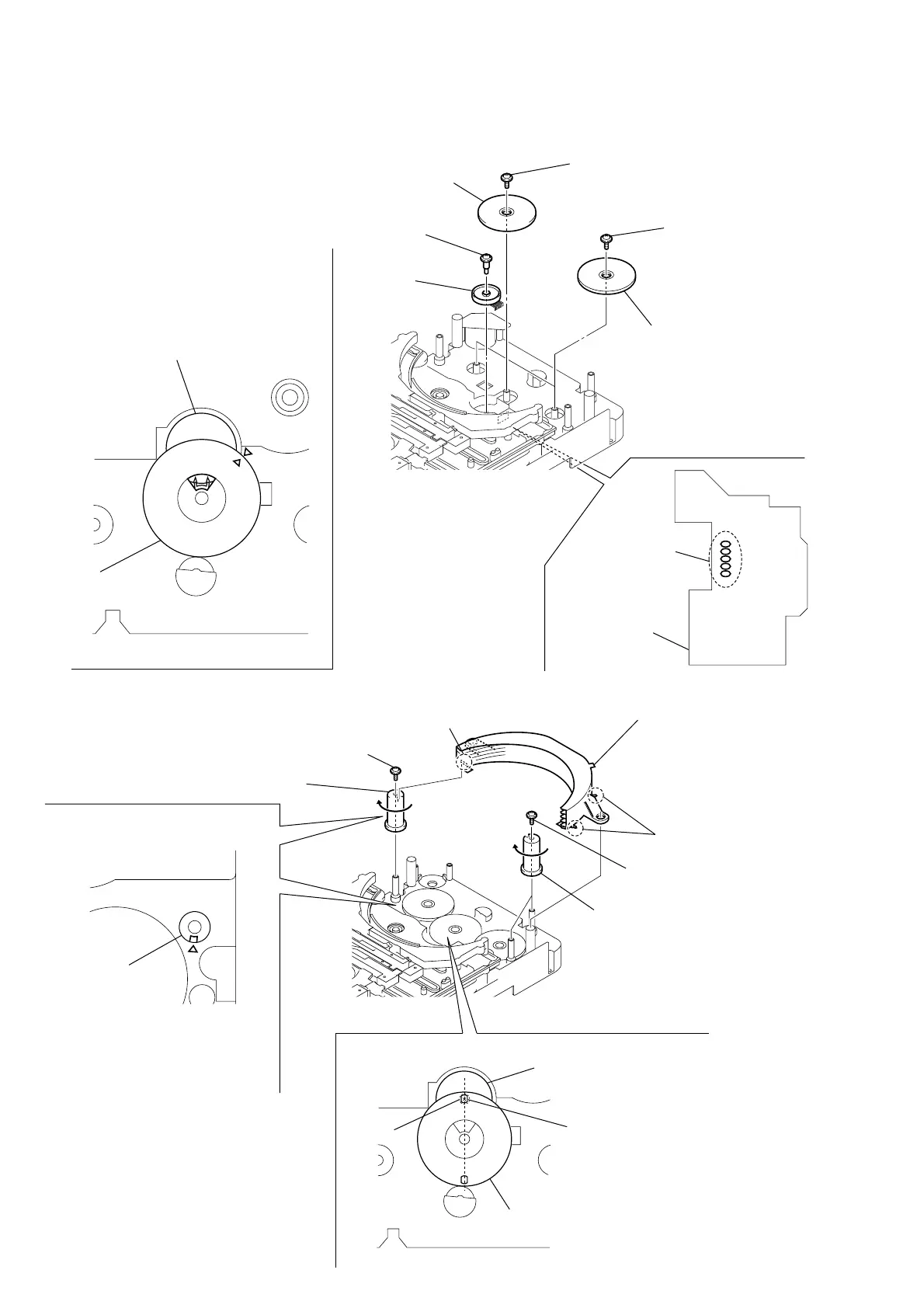

4-5. HOW TO INSTALL THE ROTARY ENCORDER (S702), GEAR (STOCKER COMMUNICATION)
2 five solders
6 two gears
(stocker communication)
4 gear
(stocker communication)
RELAY board
7 two screws
(PTPWH2.6
× 8)
5 screw
(PTPWH2.6
× 8)
3 screw
(PWH2
× 6)
rotary encoder
(S702)
gear
(stocker
communication)
– rear –
1 rotary encoder
(S702)
Engage the rotary encoder (S702)
and the gear (stocker communication)
as shown below in the figure.
2 cam
(stocker V)
3 screw
(PTPWH2.6
× 8)
4 two cams
(stocker U/D)
5 two screws
(PTPWH2.6
× 8)
boss
boss
rotary encoder
(S702)
Install the stocker assy
fitting three bosses into the
each groove of cam
then fix by rotating the cams
in the direction of arrow.
hole
gear
(stocker communication)
– rear –
screw
1 Position the hole on the gear
(stocker communication) on the
screw of the rotary encoder (S702).
To install three cams, align each groove
of the cam with each
f mark on the
chassis as shown in the figure.
cam
4-6. HOW TO INSTALL THE STOCKER ASSY
