5. REPAIR PARTS LIST
5. REP
AIR PARTS LIST
DCR-HC17E/HC19E/HC21/HC21E/HC22E/HC32/HC32E/HC33/HC33E
5-1-1. OVERALL ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-078-889-31 SCREW (M1.7)
2 3-080-198-11 SCREW (M1.7), LOCK ACE, P2
3 2-188-477-01 COVER, JACK
4 CAUTION TAPE (A)
5 2-188-481-01 COVER (103), SHOE
6 2-188-478-01 LID, CPC
7 A-1101-182-A VC-376 BOARD, COMPLETE (SERVICE)
(HC17E/HC19E)
7 A-1101-183-A VC-376 BOARD, COMPLETE (SERVICE)
(HC21/HC21E)
7 A-1101-184-A VC-376 BOARD, COMPLETE (SERVICE)
(HC22E)
7 A-1101-185-A VC-377 BOARD, COMPLETE (SERVICE)
(HC32: EXCEPT KR/HC33)
7 A-1101-190-A VC-377 BOARD, COMPLETE (SERVICE)
(HC32E/HC33E)
7 A-1113-387-A VC-377 BOARD, COMPLETE (SERVICE)
(HC32: KR)
8 X-2023-772-1 FRAME ASSY, MD
9 3-080-204-21 SCREW, TAPPING, P2
10 3-089-520-01 SCREW
11 3-080-198-31 SCREW (M1.7), LOCK ACE, P2
12 3-062-214-01 SCREW (M1.4X1.5)
13 3-081-221-01 LABEL (Z), LS
14 1-829-774-11 CABLE, FLEXIBLE FLAT (FFC-038)

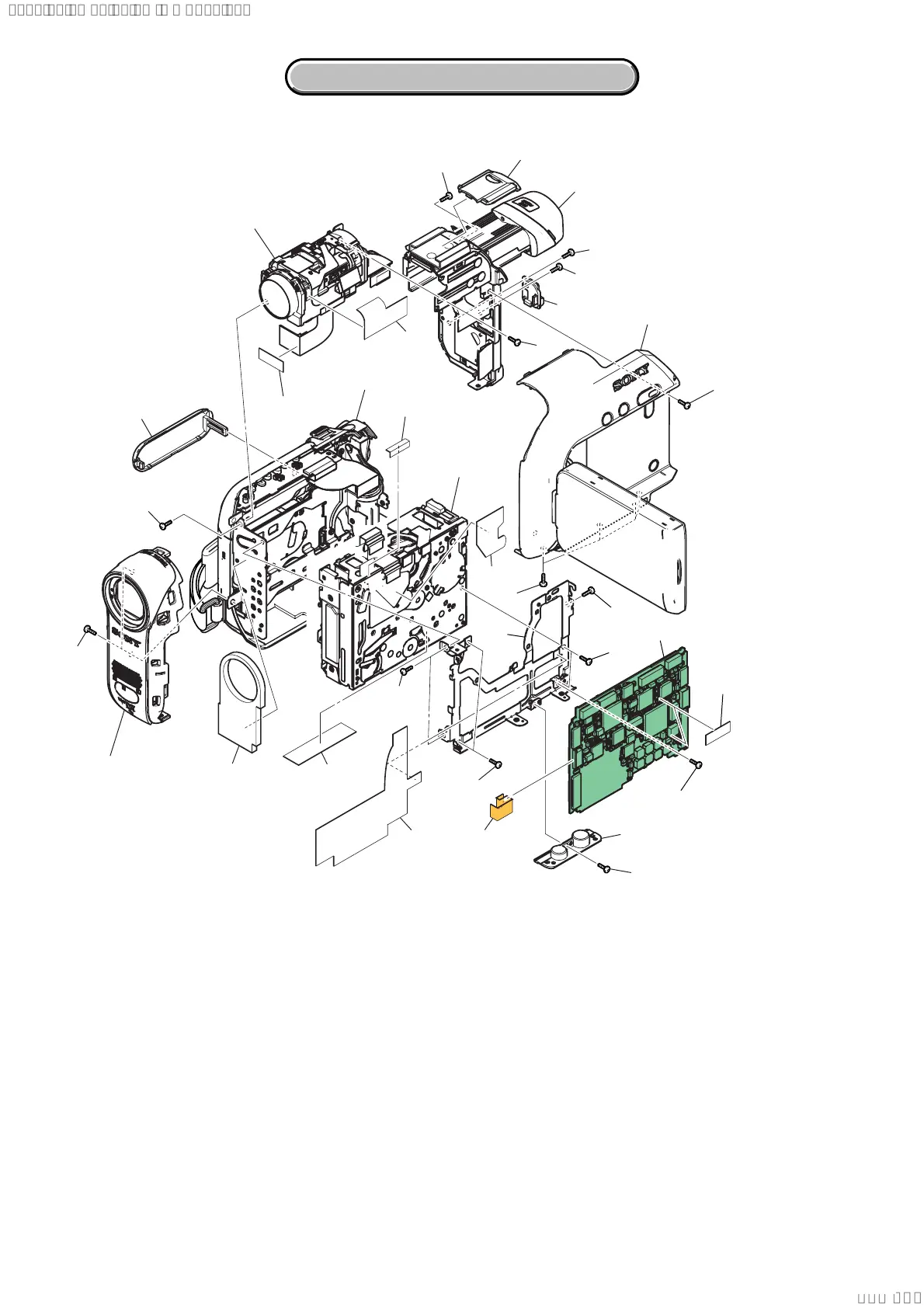

5-1. EXPLODED VIEWS
ns: not supplied
CAUTION :
For the part of 4 : TAPE (A) (3-080-272-01), cut
WOVEN (T0.25), FABRIC NON (3-941-343-21) into
the desired length and use it.
VC-377
ns
ns
ns
ns
ns
ns
cabinet (R) block assembly
(See Page 5-5)
Mechanism deck
(See Page 5-8)
F panel block assembly
(See Page 5-3)
CS block assembly
(See Page 5-6)
Lens block assembly
(See Page 5-4)
BAT EVF block assembly
(See Page 5-7)
1
1
2
2
3
5
6
9
2
2
1
11
7
8
14
13
10
12
2
2
2
12
4
(9mm X 28mm
)
SYSSET
2022/01/2407:45:44(GMT+09:00)
