Sony DCR-HC21 - Lens Block

5-4
5. REPAIR PARTS LIST
5. REP
AIR PARTS LIST
DCR-HC17E/HC19E/HC21/HC21E/HC22E/HC32/HC32E/HC33/HC33E
Note 2: Be sure to read “Precuations for Replacement of CCD
Imager” on page 4-5 when changing the CCD imager.
Ref. No. Part No. Description Ref. No. Part No. Description
101 1-788-210-11 OPTICAL UNIT (EG03)
102 2-188-472-01 FRAME LENS
103 3-080-204-01 SCREW, TAPPING, P2
104 1-788-242-11 OPTICAL FILTER BLOCK
105 3-080-204-21 SCREW, TAPPING, P2
106 A-1081-698-A CD-533 BOARD, COMPLETE

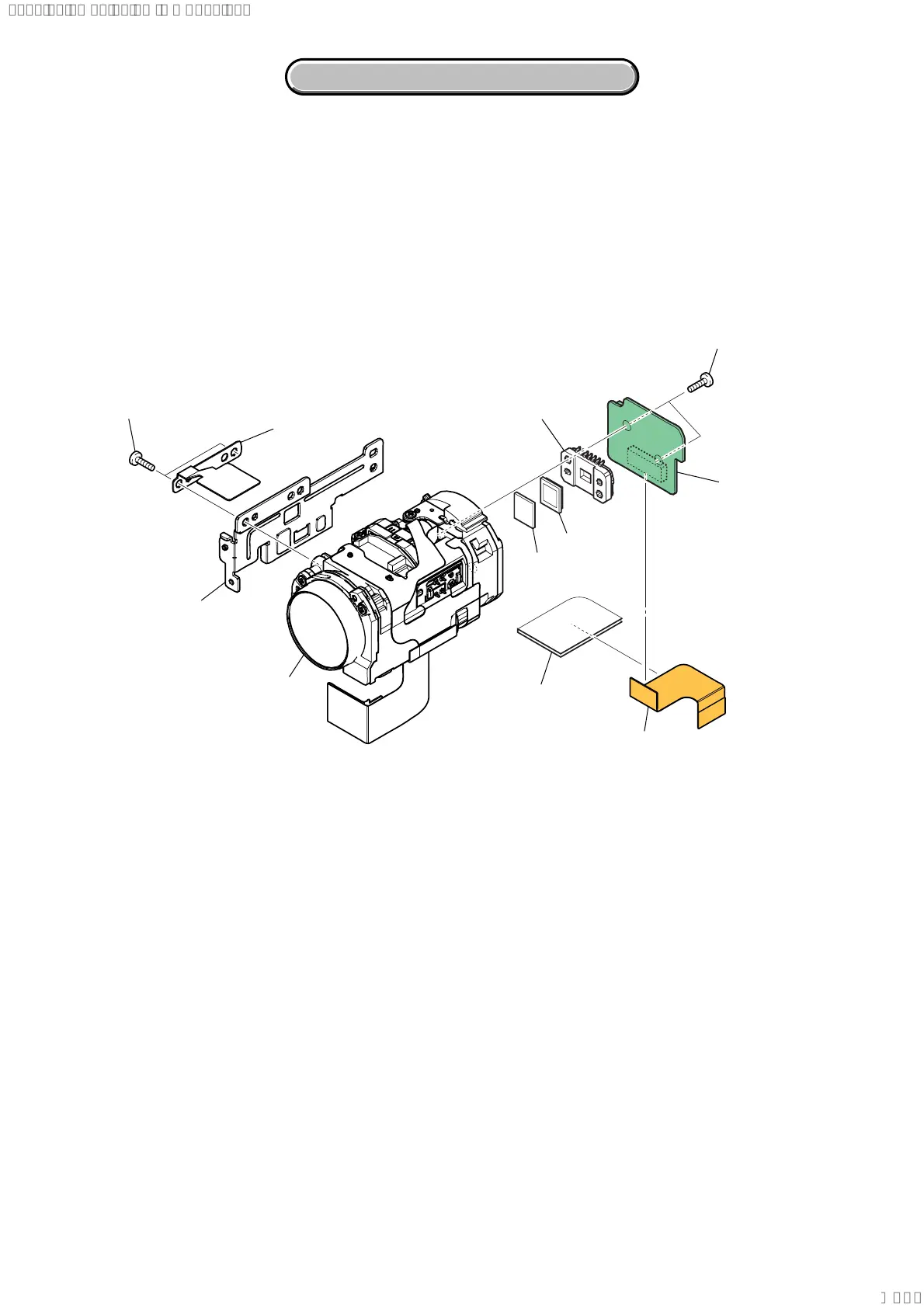

5-1-3. LENS BLOCK
107 1-864-754-11 FP-178 FLEXIBLE BOARD
108 2-188-482-01 SHEET, CD SHIELD
IC101 8-753-215-47 ICX440NKF-13 (CCD IMAGER)
(HC21/HC32/HC33) (Note1, 2)
IC101 8-753-215-49 ICX441NKF-13 (CCD IMAGER)
(EXCEPT HC21/HC32/HC33) (Note1, 2)
Note 1: IC101 is not included in CD-533 complete board.
ns: not supplied
CD-533
IC101
(Note1, 2)
ns
ns
101
103
102
104
105
106
107
108
