5. REPAIR PARTS LIST
5. REP
AIR PARTS LIST
DCR-HC17E/HC19E/HC21/HC21E/HC22E/HC32/HC32E/HC33/HC33E

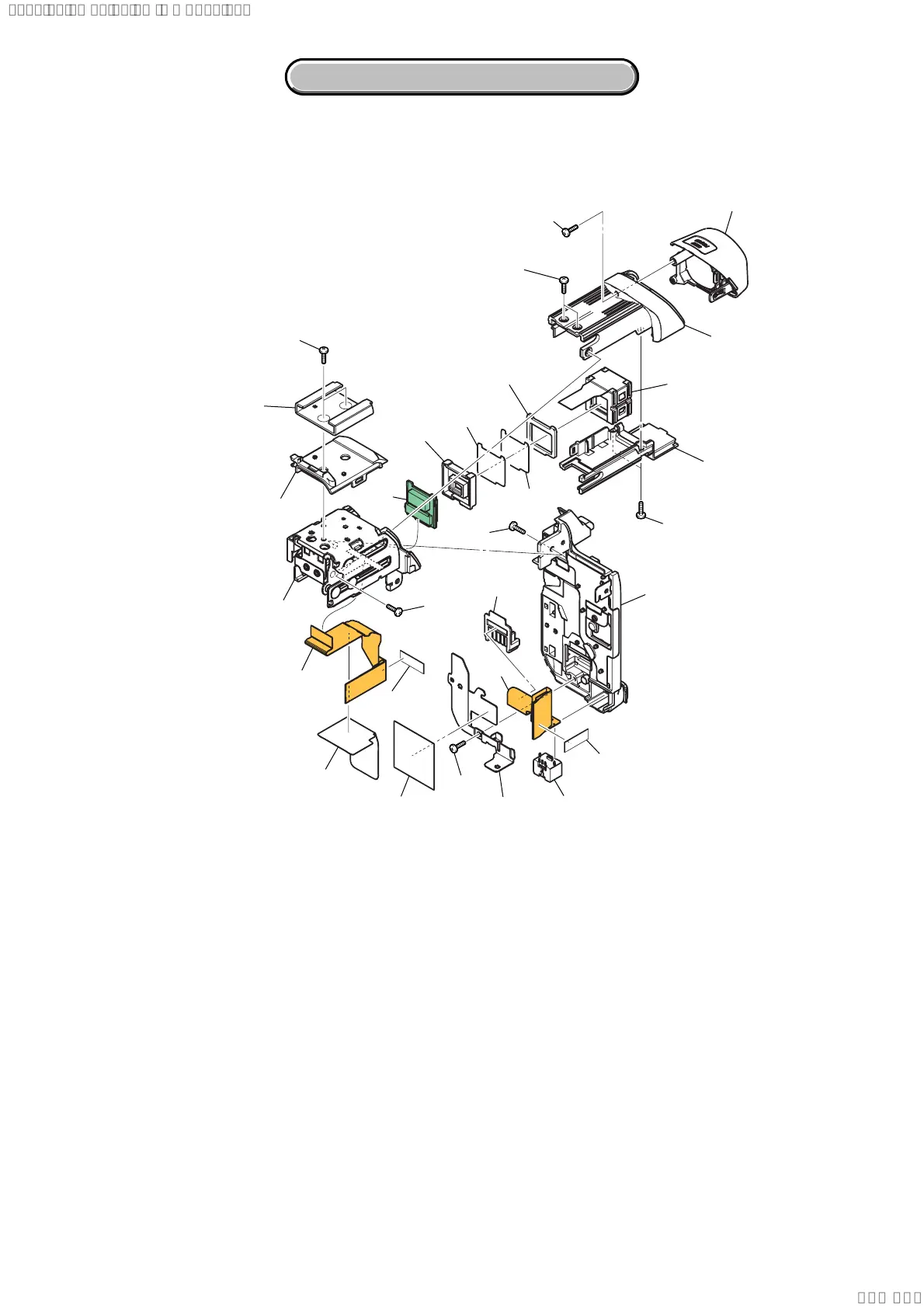

5-1-6. BAT EVF BLOCK
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
251 2-188-512-01 SHEET, VF FLEXIBLE FIXED
252 1-864-757-11 FP-181 FLEXIBLE BOARD
253 3-078-889-21 SCREW (M1.7)
254 X-2023-650-1 VF SLIDE ASSY
255 3-067-469-11 SHOE, ACCESSORY
256 2-188-479-01 BASE (103), SHOE
257 2-188-485-01 0 PLATE BIS M1.7
258 A-1081-845-A LB-109 BOARD, COMPLETE
259 3-089-415-01 GUIDE, LAMP
260 3-089-417-01 ILLUMINATOR
261 3-089-416-01 SHEET, PRISM
262 3-089-419-01 CUSHION, LCD
263 3-080-204-21 SCREW, TAPPING, P2
264 X-2023-648-1 EYE CUP ASSY
265 X-2023-647-1 CABINET UPPER ASSY VF
266 2-188-511-01 CABINET LOWER, VF
267 CAUTION 1 TAPE (A)
268 X-2048-504-1 BT PANEL ASSY
270 2-188-500-01 PLATE, BT TERMINAL RETAINER
271 3-080-204-01 SCREW, TAPPING, P2
272 CAUTION 2 TAPE (BT)
273 1-864-756-11 FP-180 FLEXIBLE BOARD
BH001 1-780-064-21 BATTERY TERMINAL BOARD
J001 1-815-792-11 CONNECTOR, DC-IN (7.2V)
LCD902 8-753-208-84 LCX059ALA-1 (EXCEPT HC33E)
LCD902 8-753-234-60 LCX059ZLA-1 (HC33E)
CAUTION 2 :
For the part of 272 : TAPE (BT) (2-349-851-01), cut
WOVEN (T0.25), FABRIC NON (3-076-631-01) into
the desired length and use it.
CAUTION 1 :
For the part of 267 : TAPE (A) (3-080-272-01), cut
WOVEN (T0.25), FABRIC NON (3-941-343-21) into
the desired length and use it.
J001
BH001
LCD902
251
252
253
253
254
256
255
257
258
259
260
261
262
263
263
253
264
265
266
268
270
273
271
267
(9mm X 28mm)
267
(9mm X 28mm)
272
(19mm X 19mm)
