5-5
5. REPAIR PARTS LIST
5. REP
AIR PARTS LIST
DCR-HC17E/HC19E/HC21/HC21E/HC22E/HC32/HC32E/HC33/HC33E

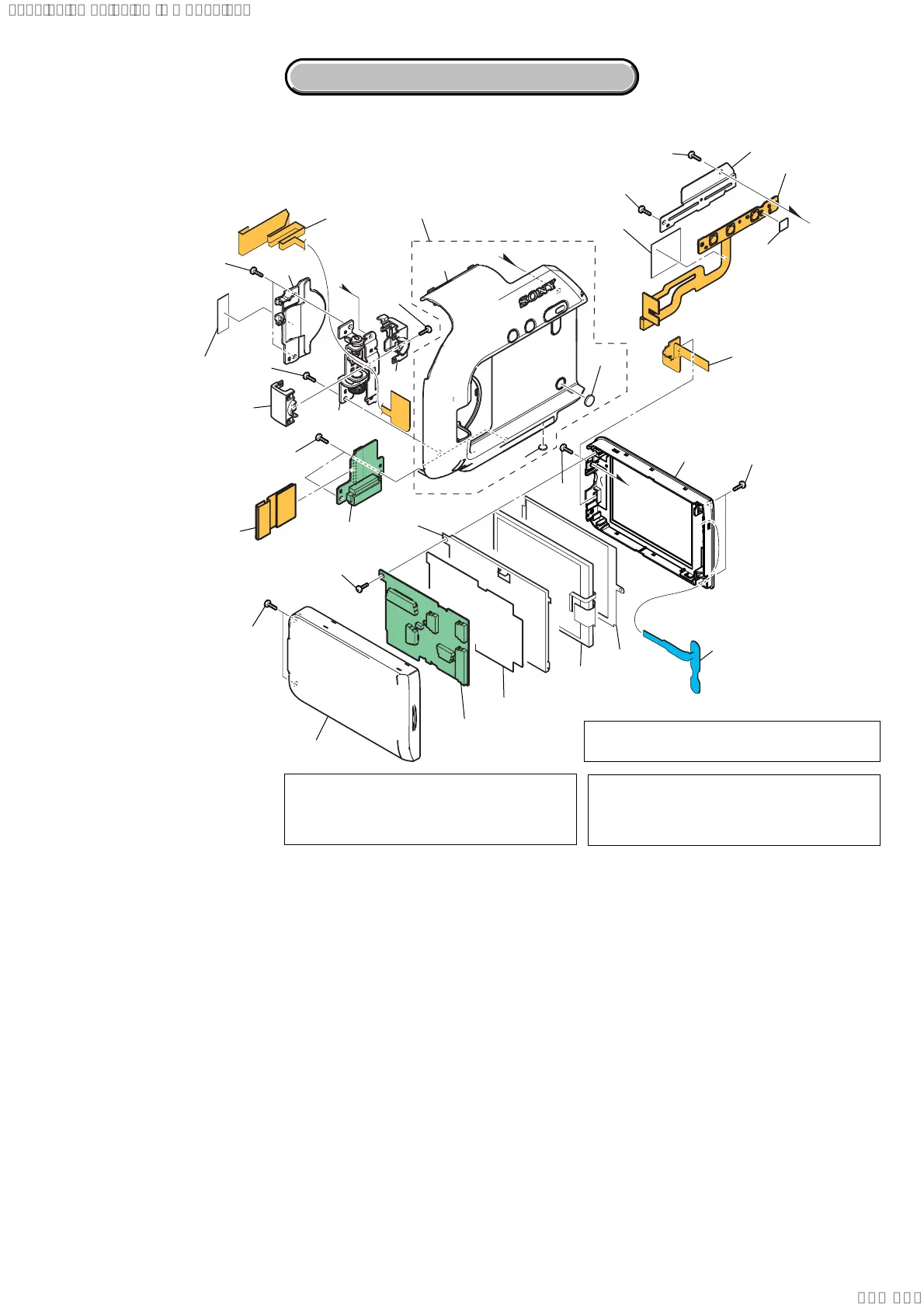

5-1-4. CABINET (R) BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
151 1-864-764-11 FP-190 FLEXIBLE BOARD
(HC22E/HC32/HC32E/HC33/HC33E)
152 A-1081-704-A CR-050 BOARD, COMPLETE
(HC22E/HC32/HC32E/HC33/HC33E)
153 3-080-204-21 SCREW, TAPPING, P2
154 2-188-434-01 COVER (C), HINGE
155 3-078-889-21 SCREW (M1.7)
156 X-2023-771-1 HINGE (103) ASSY
157 2-188-476-01 BLIND, HINGE
158 3-078-890-11 SCREW, TAPPING
159 2-188-433-01 COVER (M), HINGE
160 CAUTION 1 TAPE (BT)
161 A-1082-203-A FP-187 FLEXIBLE BOARD
162 X-2023-839-1 CABINET R ASSY (HC17E/HC19E/HC21/HC21E)
162 X-2024-694-1 CABINET R ASSY
(HC22E/HC32/HC32E/HC33/HC33E)
163 A-1082-042-A FP-186 FLEXIBLE BOARD
164 1-479-063-21 KEY BLOCK, CONTROL (SB9000)
165 2-188-436-01 CUSHION (103), PANEL
166 X-2024-273-1 CABINET (M) (103) ASSY, P
167 A-1081-848-A PD-237 BOARD, COMPLETE
168 CAUTION 2 TAPE (A)
169 2-188-432-01 CABINET (C)103, P (HC21)
169 2-188-432-11 CABINET (C)103, P (HC17E)
169 2-188-432-21 CABINET (C)103, P (HC19E)
169 2-188-432-31 CABINET (C)103, P (HC21E)
169 2-188-432-41 CABINET (C)103, P (HC32)
169 2-188-432-51 CABINET (C)103, P (HC32E)
169 2-188-432-61 CABINET (C)103, P (HC33)
169 2-188-432-71 CABINET (C)103, P (HC33E)
169 2-188-432-81 CABINET (C)103, P (HC22E)
170 3-085-397-01 SCREW
171 1-864-761-11 FP-185 FLEXIBLE BOARD
172 3-082-519-01 FOOT (R), RUBBER
173 3-089-565-01 CUSHION (R), PANEL
D901 1-479-067-11 BLOCK, LIGHT GUIDE PLATE (2.5)
LCD901 A-1090-678-A (TP) BLOCK ASSY (2.5AUMG) (HC32)
LCD901 A-1090-679-A (TP) BLOCK ASSY (2.5STFU)
(HC17E/HC19E/HC21E/HC22E)
LCD901 A-1090-680-A (TP) BLOCK ASSY (2.5STMG)
(HC21/HC32/HC32E/HC33/HC33E)
ns: not supplied
CAUTION 1 :
For the part of 160 : TAPE (BT) (2-349-851-01), cut
WOVEN (T0.25), FABRIC NON (3-076-631-01) into
the desired length and use it.
CAUTION 2 :
For the part of 168 : TAPE (A) (3-080-272-01), cut
WOVEN (T0.25), FABRIC NON (3-941-343-21) into
the desired length and use it.
PD-237
LCD901
D901
ns
ns
ns
ns
151
152
158
158
155
154
153
158
153
156
157
153
171
(Note)
159
158
161
170
162
173
163
153
164
172
166
167
165
169
168
(9mm X 28mm)
160
(19mm X 19mm)
(Note) Be sure to read “2-4. The Method of Attach-
ment of FP-185 Flexible Board” on page 2-8.
