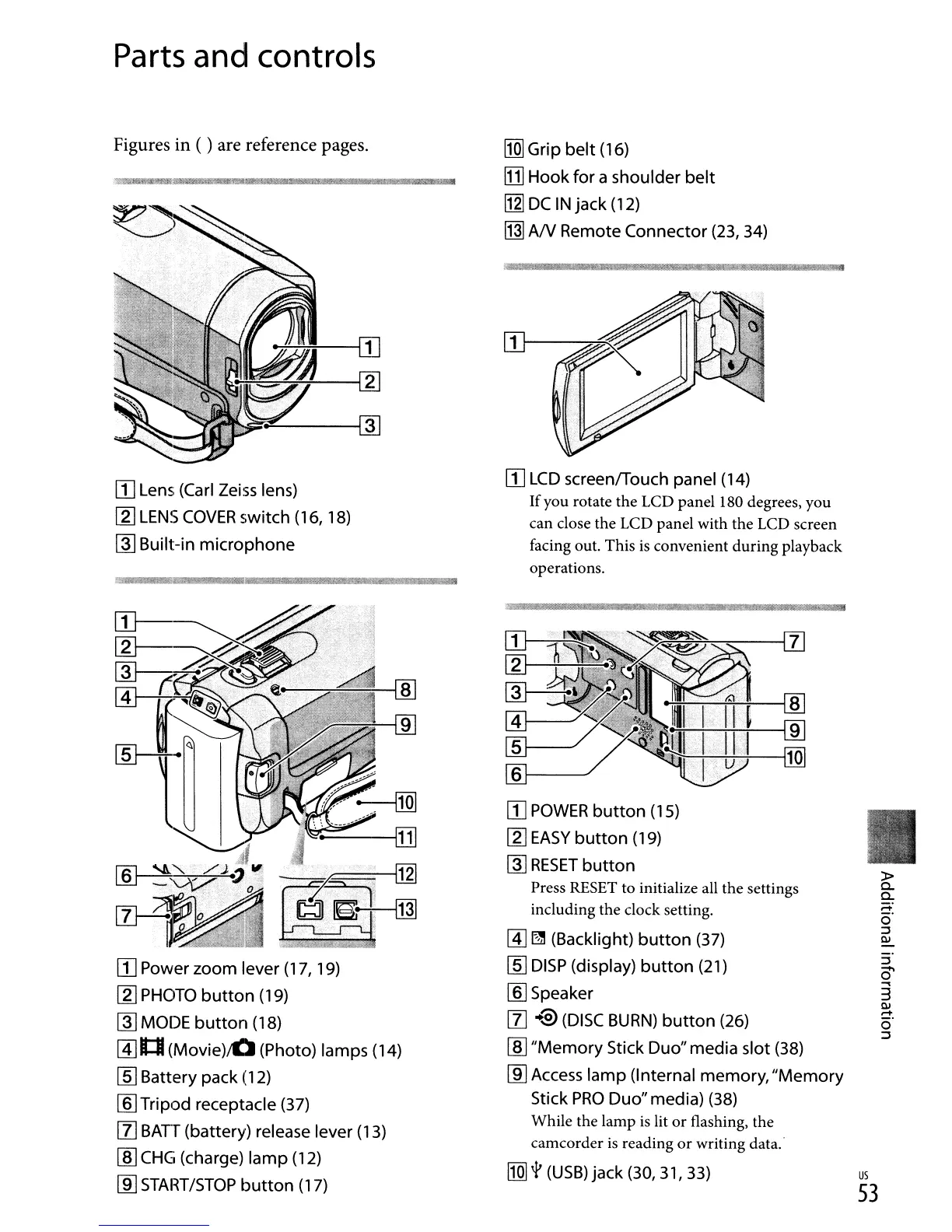

Parts and controls
Figures in ( ) are reference pages.
·m_I:wJ fu'lJiM_IliIlilliIli _
[I] Lens (Carl Zeiss lens)
[2J LENS COVER switch (16, 18)
@) Built-in microphone
[I] Power zoom lever (17, 19)
[2J PHOTO button (19)
@) MODE button (18)
@]1tI (Movie)!O (Photo) lamps (14)
[ID Battery pack (12)
[ID Tripod receptacle (37)
I1J BATr (battery) release lever (13)
[ID CHCi (charge) lamp (12)
lID START/STOP button (17)
ffQ] Grip belt (16)
[ll] Hook for a shoulder belt
!12J DC IN jack (12)
~ AN Remote Connector (23, 34)
[I] LCD screenfTouch panel (14)
Ifyou rotate the LCD panel 180 degrees, you
can close the LCD panel with the LCD screen
facing out. This
is convenient during playback
operations.
[I] POWER button (15)
[2J EASY button (19)
@) RESET button
Press RESET to initialize all the settings
including the clock setting.
@] 13'1 (Backlight) button (37)
[ID DISP (display) button (21)
[ID Speaker
I1J -@ (DISC BURN) button (26)
[ID "Memory Stick Duo" media slot (38)
lID Access lamp (Internal memory, "Memory
Stick PRO Duo"media) (38)
While the lamp is lit or flashing, the
camcorder
is reading or writing data.·
ffQ] '!' (USB) jack (30, 31,33) us
53
