Sony DFS-700 Service Manual

1-43
DFS-700/700P
Chapter 3 Basic Operation
3-58 Chapter 3 Basic Operation
To copy a matte color
To copy the color matte parameters from another color matte, use the
following procedure.
1 Press the MATTES button in the menu control section, to display page
2 of the MATTE menu. (Press the PAGE button to change pages.)
MATTE
2/2
FROM
INT V
TO
BORD
COPY
EXEC
PAGE F1 F2 F3
INTVID
Matte
PTN
1
F4 F5
2
Press the F1(FROM) button, to select the color matte to be copied.
3
Press the F2(TO) button, to select the color matte to which you want to
make the copy.
4 Press the F3(COPY) button, to carry out the copy.

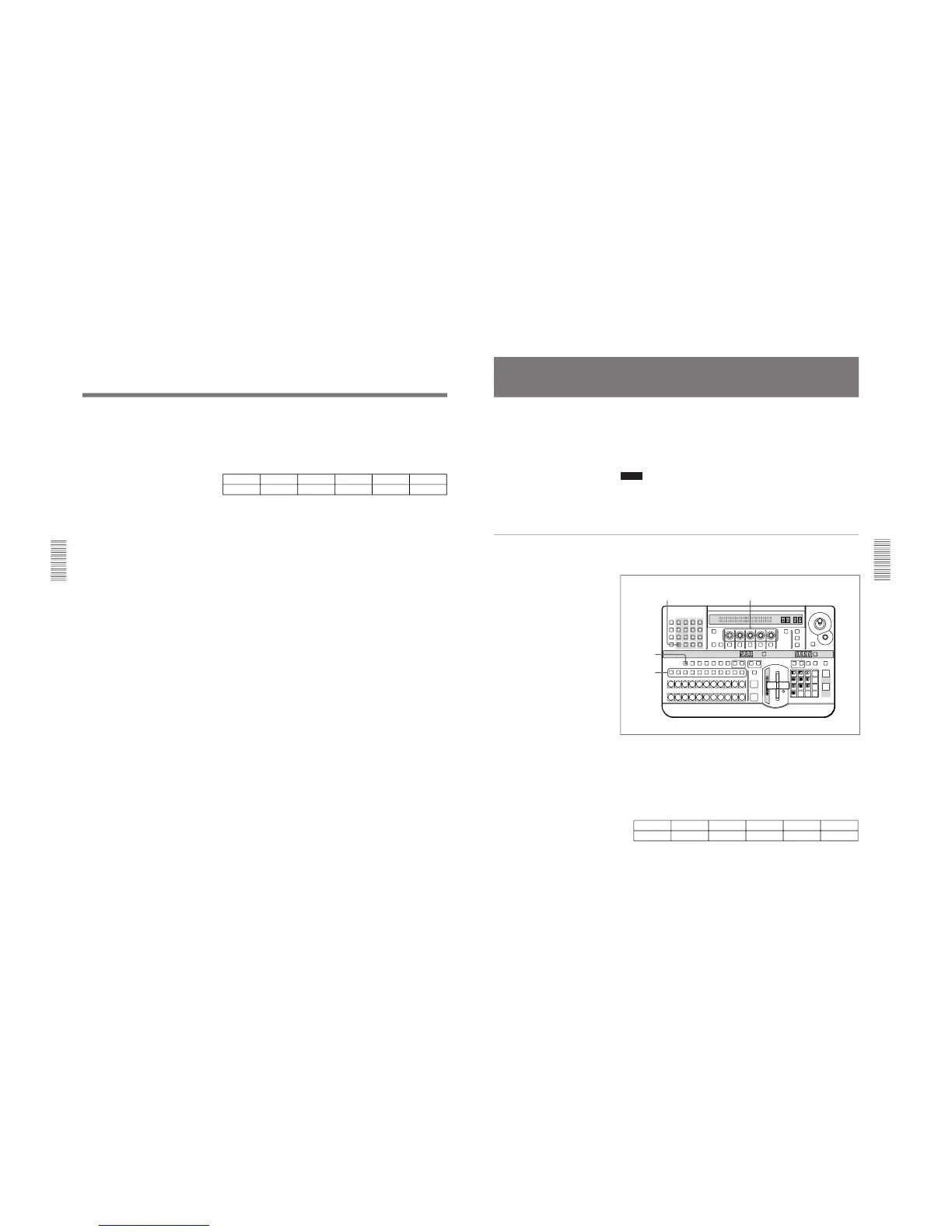

Adjusting Color Mattes
Chapter 3 Basic Operation
Chapter 3 Basic Operation
3-59
The color correction function allows you to adjust the overall color balance
of images, or correct the white balance for different lighting color
temperatures.
You can apply color correction to the signal input to any one of the
primary input connectors (VIDEO INPUT 1 to 8).
Notes
• Color correction settings cannot be saved in a snapshot.
• The color correction function cannot be used for the effect patterns
numbered 2261, 2264, 2267, 2269, and 2279.
Procedure
To adjust the color balance with the color correction function, use the
following procedure.
1 Press the CCR button in the delegation section, turning it on.
2 Press one of the AUXILIARY buttons, turning it on, to select the bus
to which the color adjustment applies.
3 Press the CCR button in the menu control section, turning it on, to
display the color correction menu (CCR).
CCR
1/1
Gain
0-100
Hue
0-99
Offset
0-100
Gamma
0-100
HueRot
0-99
PAGE F1 F2 F3 F4 F5
Adjusting Image Colors — Color Correction
LAST X
INS
RST
TITLE
12
EDITOR LUM LUM LUM
DSK EDGE
TRAIL
SHADOW
GPI CRK CRK BORDER BEVELD
EDGE
SET UP MASK MASK MASK SOFT
SHIFT CCR LIGHTING BORDERMATTES
LOCATION
LEARNEDIT
RECALL
HOLD
INPUT
INITIAL
PATTERN
ADJ
PAGE
F1 F2 F3 F4 F5
USER PGM
STATUS EDIT
SNAP SHOT
SET
PATTERN NUMBER
EFFECT
DSK
FTB
SET
TRANS RATE
789
456
123
0
DOWN UP
ENTER
FADE
TO
BLACK
P IN P
DSK
DEL
N/R REV DSK PVWDIRECT
RECALL
DIRECT
PATTERN
CCR TITLE 1
SOURCE
TITLE 2
SOURCE
DSK
FILL
SUPER BG FRGD 2 MEMORY FRAME FREEZ MIX EFFECT
BACKGROUND
BLACK MEMORY INT
VIDEO
TITLE
123 45678
CUT
AUTO
TRANS
AUXILIARY
BLACK
MEMORY
INT
VIDEO
12345678
FOREGROUND
BLACK
MEMORY
INT
VIDEO
12345678
PATTERN/KEY PAD
3
2
1
4
(continued)
