Sony DFS-700 Service Manual

1-52
DFS-700/700P
Chapter 4 Advanced Operations

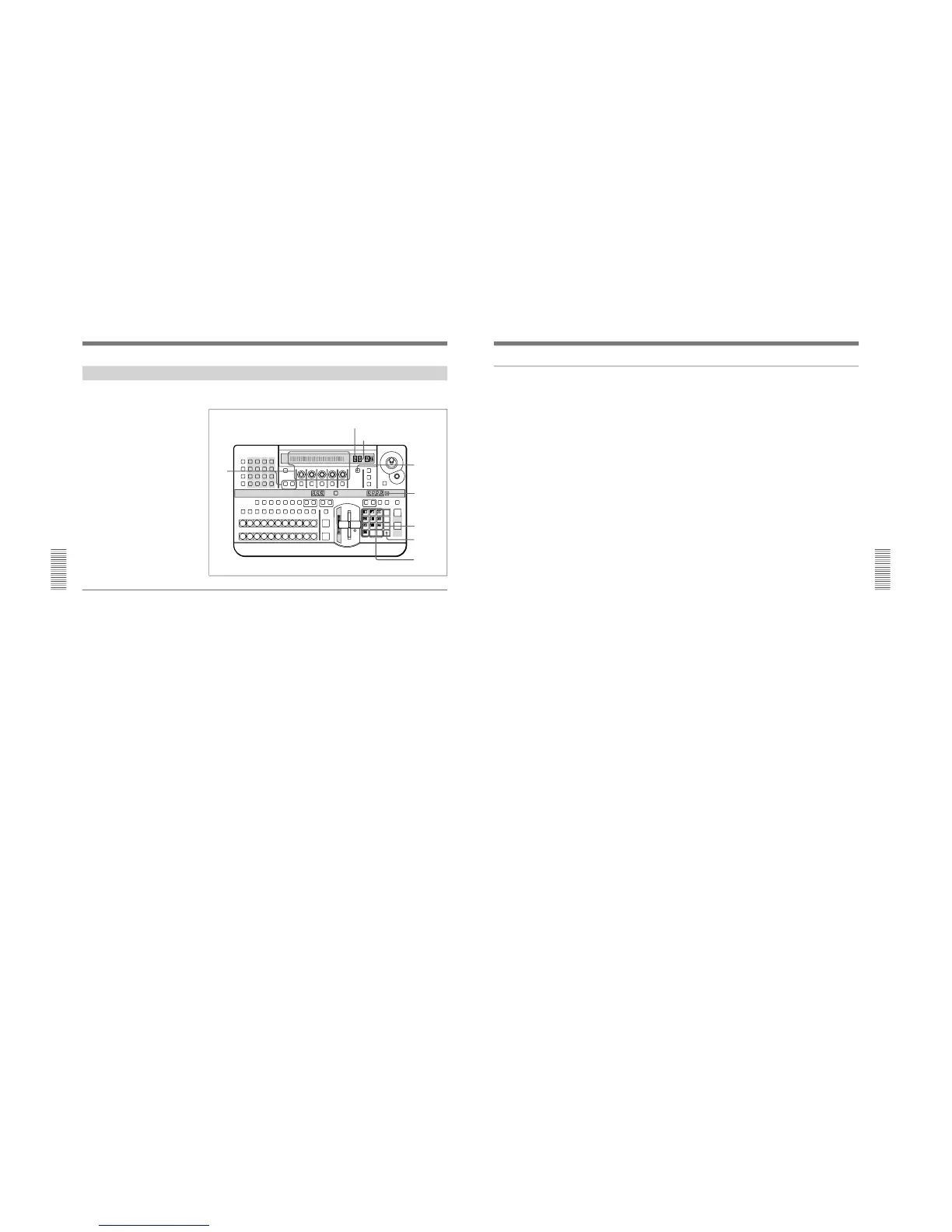

4-12 Chapter 4 Advanced Operations
User Program Effects
Editing User Program Effects
You can recall a created user program effect, and change its parameters, or
add, delete, or copy key frames.
To recall a user program effect
Use the following procedure.
1 Press the SET button.
2
Use buttons 0 to 9 to enter the user program effect number.
The number you entered appears in the PATTERN NUMBER display
window.
3
Press the ENTER button.
The STATUS display window shows the number of key frames in the
user program effect you specified in step 2.
4 Press the EDIT button.
The button lights, and the editing screen for the user program effect
you specified in step 2 (the image selected on the FOREGROUND bus
buttons) appears.
The STATUS display window shows the number of key frames saved
in the user program effect.
LAST X
INS
RST
TITLE
12
EDITOR LUM LUM LUM
DSK EDGE
TRAIL
SHADOW
GPI CRK CRK BORDER BEVELD
EDGE
SET UP MASK MASK MASK SOFT
SHIFT CCR LIGHTING BORDERMATTES
LOCATION
LEARNEDIT
RECALL
HOLD
INPUT
INITIAL
PATTERN
ADJ
PAGE
F1 F2 F3 F4 F5
USER PGM
STATUS EDIT
SNAP SHOT
SET
PATTERN NUMBER
EFFECT
DSK
FTB
SET
TRANS RATE
789
456
123
0
DOWN UP
ENTER
FADE
TO
BLACK
P IN P
DSK
DEL
N/R REV DSK PVWDIRECT
RECALL
DIRECT
PATTERN
CCR TITLE 1
SOURCE
TITLE 2
SOURCE
DSK
FILL
SUPER BG FRGD 2 MEMORY FRAME FREEZ MIX EFFECT
BACKGROUND
BLACK MEMORY INT
VIDEO
TITLE
123 45678
CUT
AUTO
TRANS
AUXILIARY
BLACK
MEMORY
INT
VIDEO
12345678
FOREGROUND
BLACK
MEMORY
INT
VIDEO
12345678
PATTERN/KEY PAD
6
2
3,7
1
5
4,8
STATUS display window
EDIT display window
Chapter 4 Advanced Operations
Chapter 4 Advanced Operations
4-13
To change the key frame parameters
After carrying out the procedure to step 4 in the section “To recall a user
program effect” above, use the following procedure.
5
Press the UP or DOWN button in the pattern/numeric keypad, so that
the number of the key frame for which you want to change the
parameters appears in the EDIT display window.
6 Change the parameters in the menu.
7 Press the ENTER button.
This saves the changed key frame parameters.
Repeat steps 5, 6, and 7, to change the key frame parameters in all
desired key frames in turn.
8 When all the changes are made, EDIT button.
The button goes off, and the modified user program effect is resaved.
