Chapter 4 Advanced Operations
4-18
Chapter 4 Advanced Operations
User Program Effects
Executing User Program Effects
You execute a user program effect in the same way as a built-in effect, by
entering the pattern number.
Transitions between the key frames in user program effect are smooth
because spline interpolation is used to generate intermediate effects. You
can control the smoothness of transitions by adjusting the spline curve.

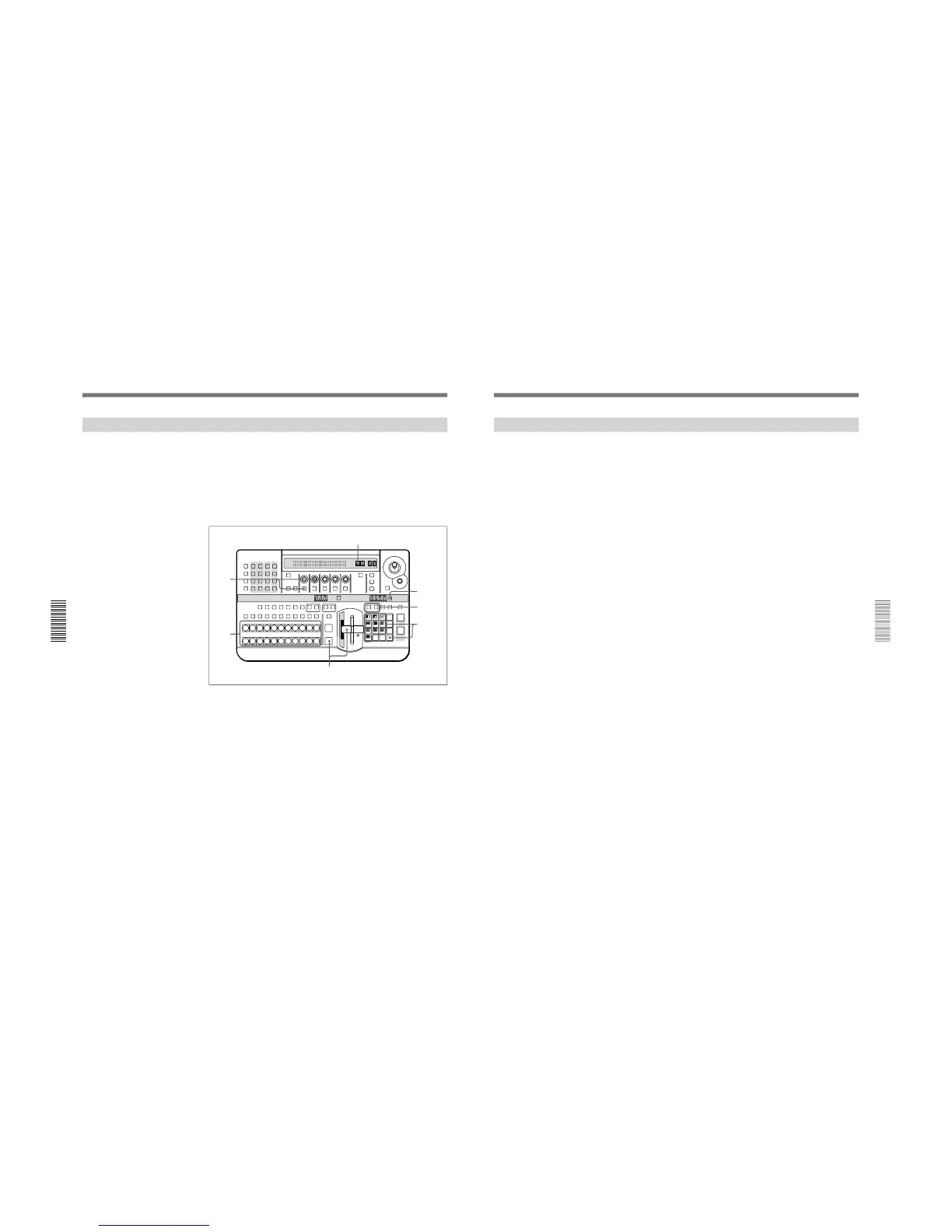

To execute a user program effect, use the following procedure. Except for
step 4, the procedure is the same as for executing a built-in effect by
specifying the pattern number.
1
Select the background and foreground images.
2
Press the SET button.
3
In the pattern/numeric keypad, enter the user program effect number
with buttons 0 to 9 and press ENTER.
The STATUS display window shows the number of key frames in the
effect.
4
If necessary, use F1 button and F2 knob to adjust the smoothness of
the transition.
5
Set the duration and direction of the transition as required.
6
Execute the effect with the fader lever or AUTO TRANS button.
LAST X
INS
RST
TITLE
12
EDITOR LUM LUM LUM
DSK EDGE
TRAIL
SHADOW
GPI CRK CRK BORDER BEVELD
EDGE
SET UP MASK MASK MASK SOFT
SHIFT CCR LIGHTING BORDERMATTES
LOCATION
LEARNEDIT
RECALL
HOLD
INPUT
INITIAL
PATTERN
ADJ
PAGE
F1 F2 F3 F4 F5
USER PGM
STATUS EDIT
SNAP SHOT
SET
PATTERN NUMBER
EFFECT
DSK
FTB
SET
TRANS RATE
789
456
123
0
DOWN UP
ENTER
FADE
TO
BLACK
P IN P
DSK
DEL
N/R REV DSK PVWDIRECT
RECALL
DIRECT
PATTERN
CCR TITLE 1
SOURCE
TITLE 2
SOURCE
DSK
FILL
SUPER BG FRGD 2 MEMORY FRAME FREEZ MIX EFFECT
BACKGROUND
BLACK MEMORY INT
VIDEO
TITLE
123 45678
CUT
AUTO
TRANS
AUXILIARY
BLACK
MEMORY
INT
VIDEO
12345678
FOREGROUND
BLACK
MEMORY
INT
VIDEO
12345678
PATTERN/KEY PAD
5
4
3,5
2
6
1
Chapter 4 Advanced Operations
Chapter 4 Advanced Operations
4-19
Deleting All User Program Effects
To delete all user program effects, use the following procedure.
1
Press the SET UP button.
The setup menu appears.
2
Press the PAGE button, to display page 6/8.
3
Press the F4(USRPGM) button, to set it to “ON”.
4
Press the F5(EXEC) button.
A confirmation message appears.
5
To go ahead and delete all user program effects, press F3(OK); to
cancel press F5(CANCEL).
When you press F3, all of the saved user program effects are deleted.
