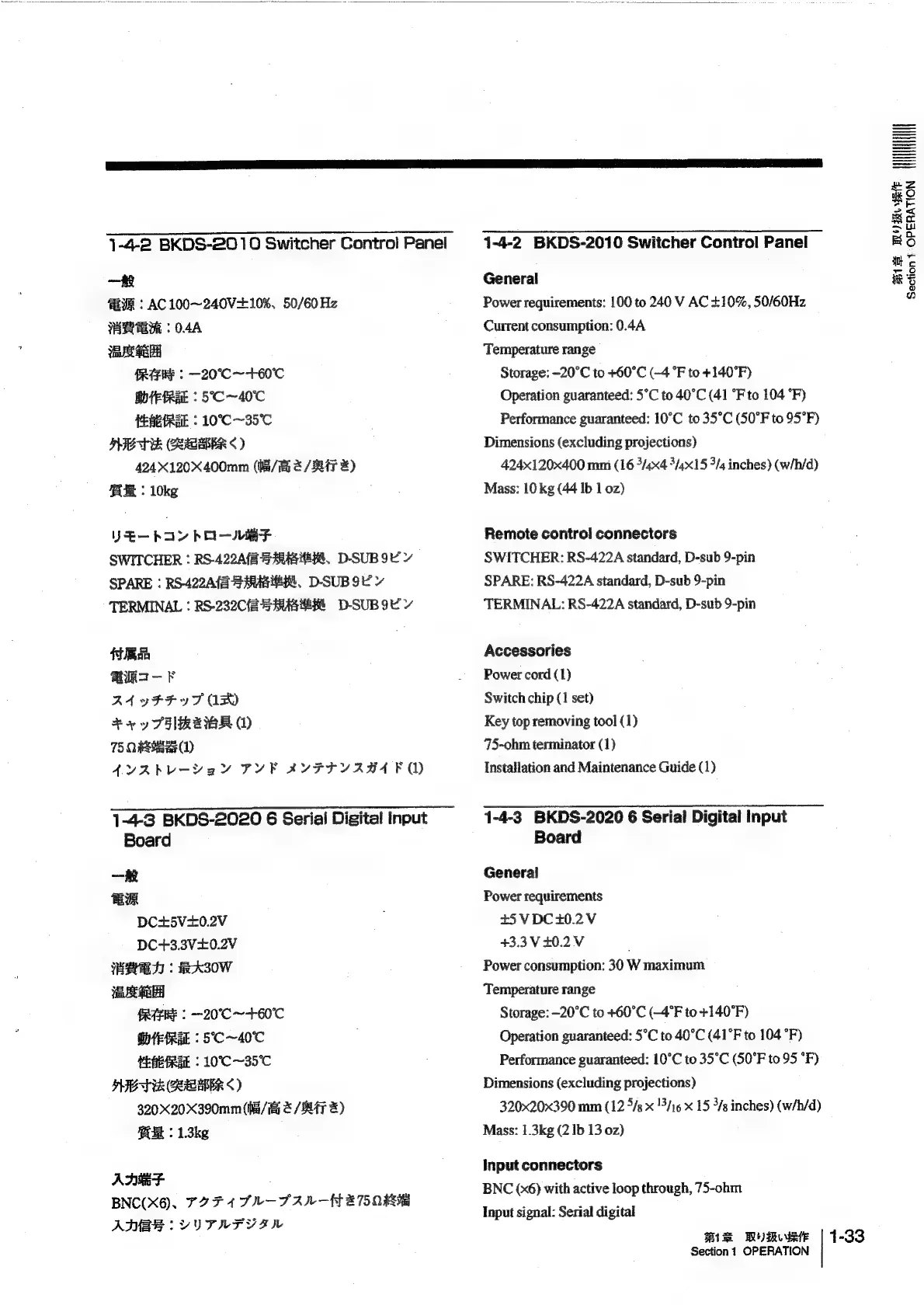

1-4-2 BKDS-2010 Switcher Control Panel
General
Power requirements: 100 to 240 V AC 10%, 50/60Hz
Current consumption: 0.4A
Temperature range
Storage: -20°C to +60°C (—4 °F to +140°F)
Operation guaranteed: 5°C to 40°C (41 °F to 104 °F)
Performance guaranteed: 10°C to 35°C (50°F to 95°F)
Dimensions (excluding projections)
424x120x400 mmi (16 3/4x4 7/415 7/4 inches) (w/h/d)
Mass: 10 kg (44 Ib 1 0z)
Remote control connectors
SWITCHER: RS-422A standard, D-sub 9-pin
SPARE: RS-422A standard, D-sub 9-pin
TERMINAL: RS-422A standard, D-sub 9-pin
Accessories
Power cord (1)
Switch chip (1 set)
Key top removing tool (1)
75-ohm terminator (1)
Installation and Maintenance Guide (1)
1-4-3 BKDS-2020 6 Serial Digital input
Board
General
Power requirements
+5 VDC10.2V
+3.3V20.2V
Power consumption: 30 W maximum
Temperature range
Storage: -20°C to +60°C (-4"F to +140°F)
Operation guaranteed: 5°C to 40°C (41°F to 104 *F)
Performance guaranteed: 10°C to 35°C (50°F to 95 °F)
Dimensions (excluding projections)
320x20x390 mm (12 7/s x 3/16 x 15 3/s inches) (w/h/d)
Mass: 1.3kg (2 1b 13 02z)
Input connectors
BNC (x6) with active loop through, 75-ohm
Input signal: Serial digital
