2-4
DCR-HC51E/HC52/HC52E/HC53E/HC54/HC54E_L2

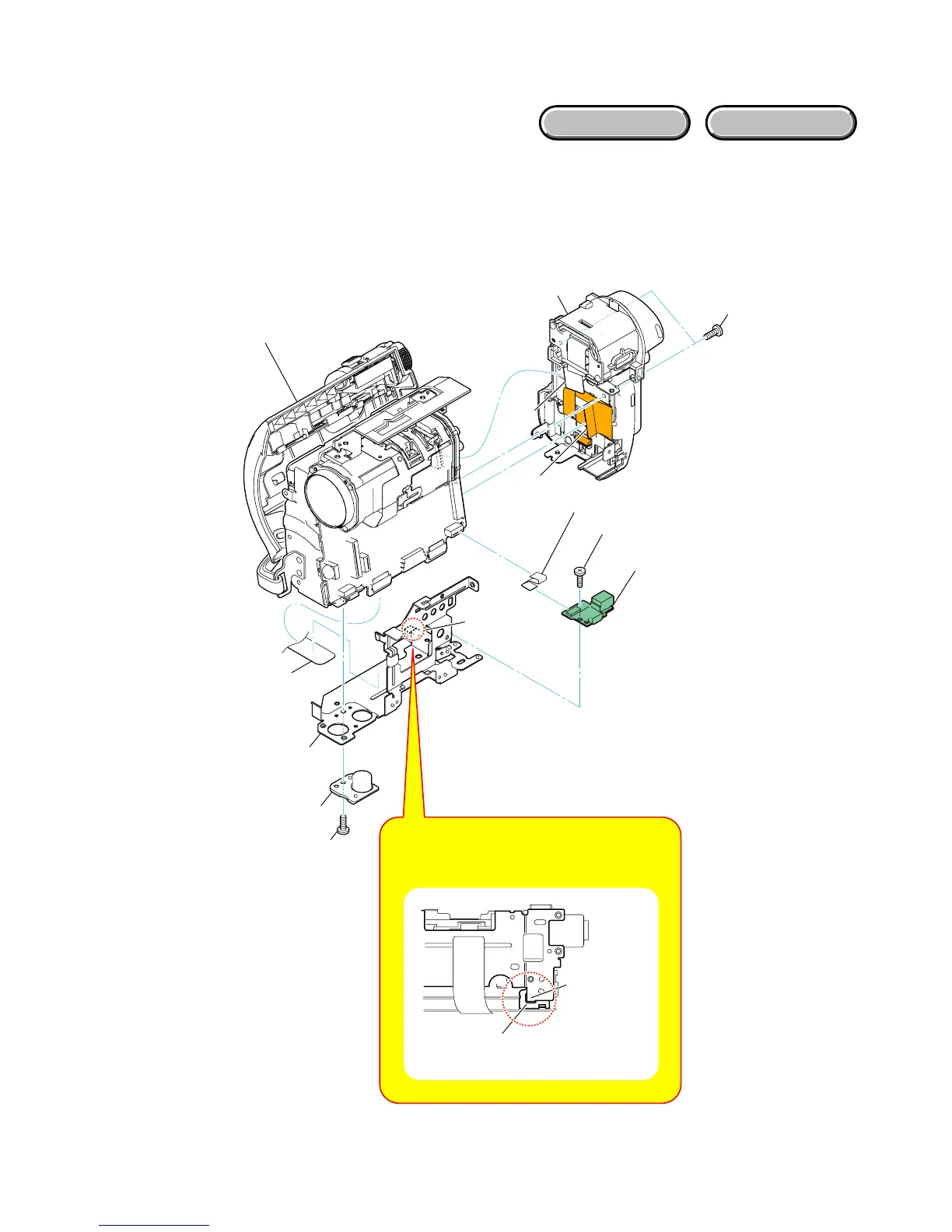

2-2-2. BOTTOM FRAME SECTION
Follow the disassembly in the numerical order given.
1 BT-EVF Section (1-1 to 1-3)
2 JK-367 Board (2-1 to 2-7)
EXPLODED VIEW
HARDWARE LIST
Cabinet (L) Section
(See Page 2-5)
1 BT-EVF Section
1-2
1-3
1-1 (#2)
2-4
2-6
2-2
2-3 (#1)
2-1
2-5 (Claw)
2 JK-367 Board
2-7 (#3)
Note:On installation of the bottom frame,
insert the claw of the bottom frame
to the hole of the MD frame.
Claw
(Bottom Frame)
Hole
(MD Frame)
