5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-HC51E/HC52/HC52E/HC53E/HC54/HC54E_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
1 2-899-764-21 CABINET (L)
2 3-271-259-01 CABINET (UPPER (2122))
3 2-899-771-11 KNOB (212), NS
4 1-833-206-11 CABLE, FLEXIBLE FLAT (FFC-085)
5 2-899-716-01 RETAINER, MICROPHONE
6 2-899-717-01 CUSHION, MICROPHONE
7 X-2186-671-1 PANEL (2122) ASSY, F (HC51E/HC52/HC52E)
7 X-2186-798-1 PANEL (2132) ASSY, F (HC53E/HC54/HC54E)
MIC901 1-542-712-11 MICROPHONE UNIT
#1 2-635-562-11 SCREW (M1.7) (Black)
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)

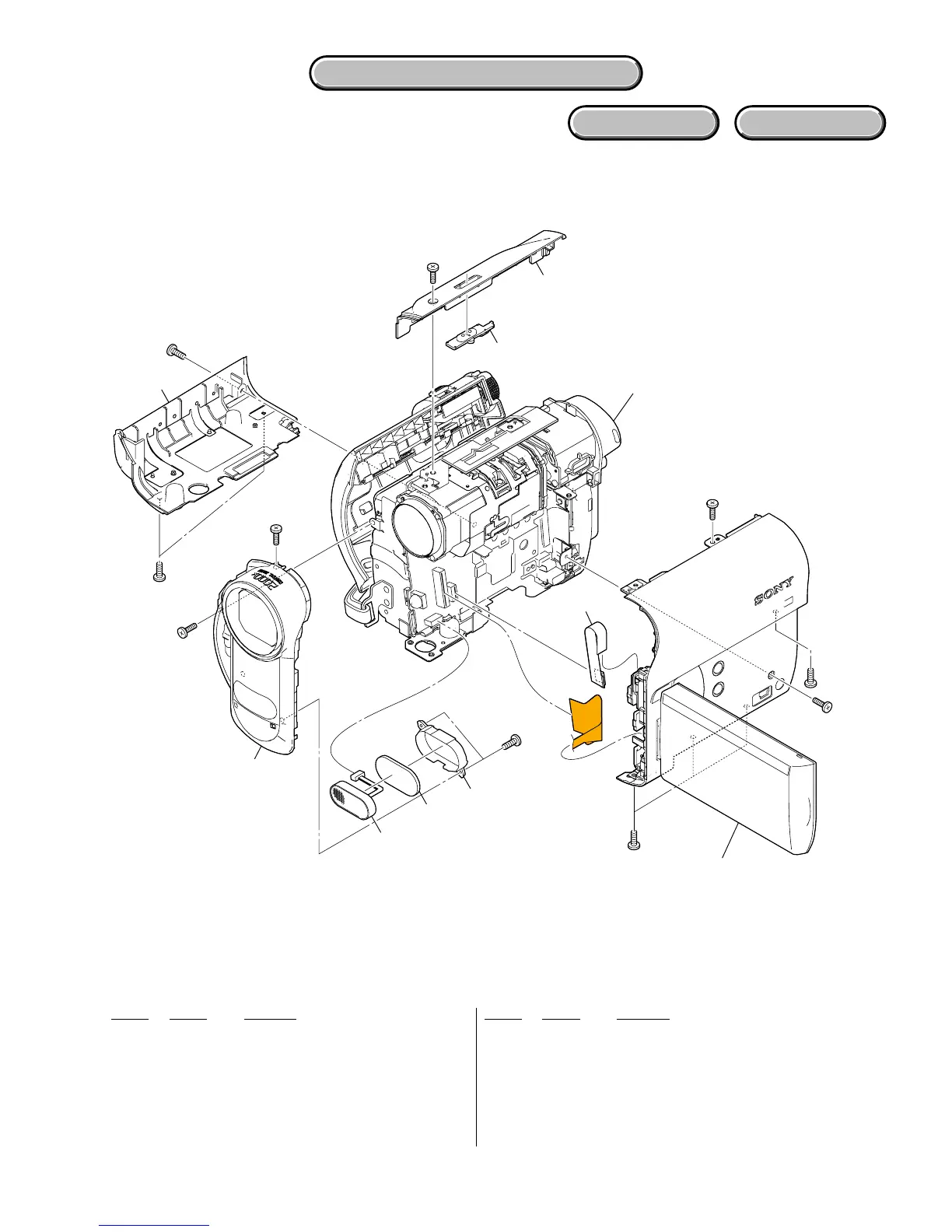

5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
7
1
#2
#2
#2
#1
#1
#2
#2
#2
#2
#12
2
3
5
6
4
Bottom Frame Section
(See Page 5-3)
Cabinet (R) Section
(See Page 5-5)
MIC901
