2-2-4. CABINET (R) SECTION
Follow the disassembly in the numerical order given.
1 CF-111 Board (1-1 to 1-7)
2 LCD Panel Block (2-1 to 2-4)

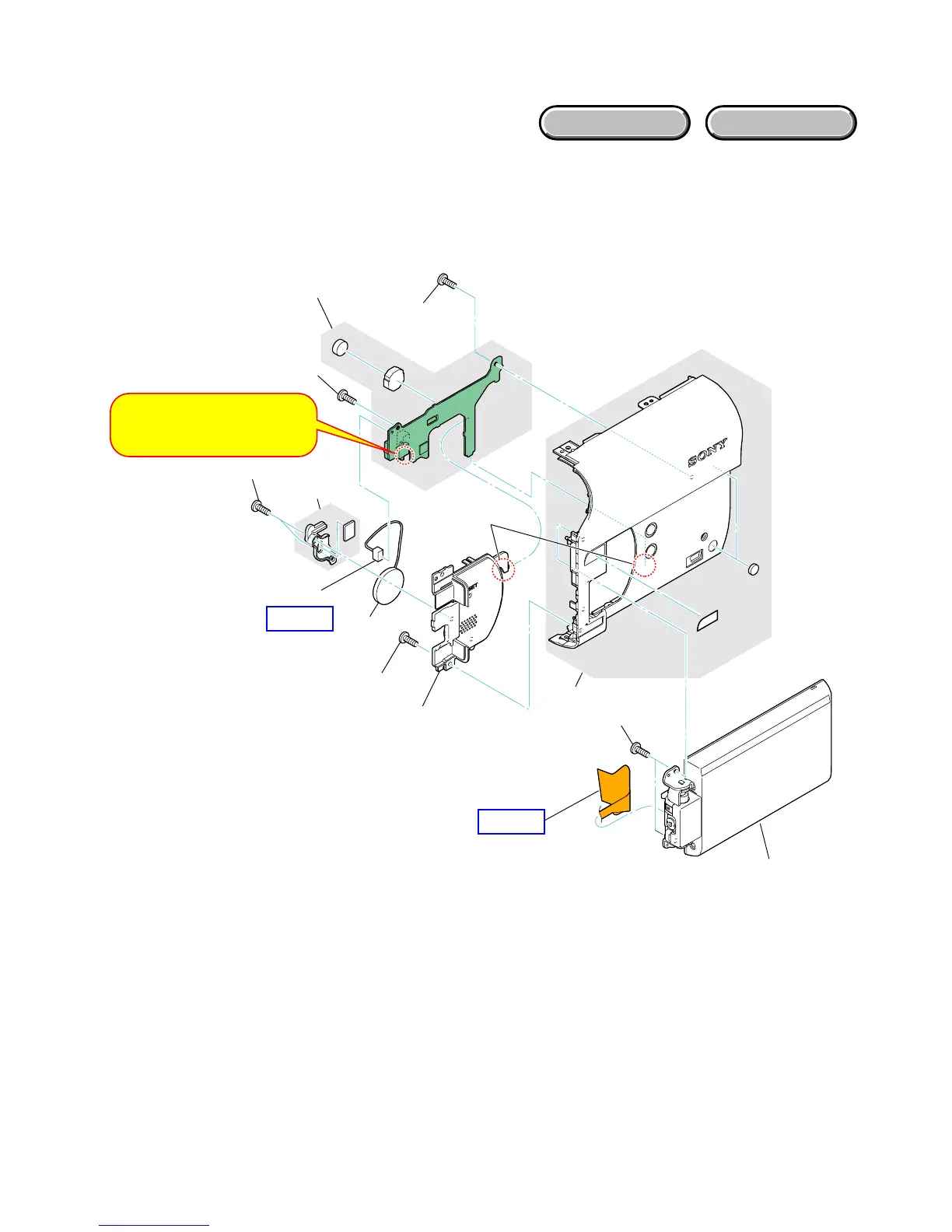

EXPLODED VIEW
HARDWARE LIST
1 CF-111 Board
1-1
1-4
1-5 (#12)
2-2
2-1 (#12)
2-3 (#12)
1-7
(Claw)
2 LCD Panel
Block
1-2 (#12)
1-6 (#12)
Note:On installation of the CF-111
board, adjust the position of
the Panel Open/Close switch.
1-3
2-4
HELP02
HELP03
