Quick Reference
138
Quick Reference

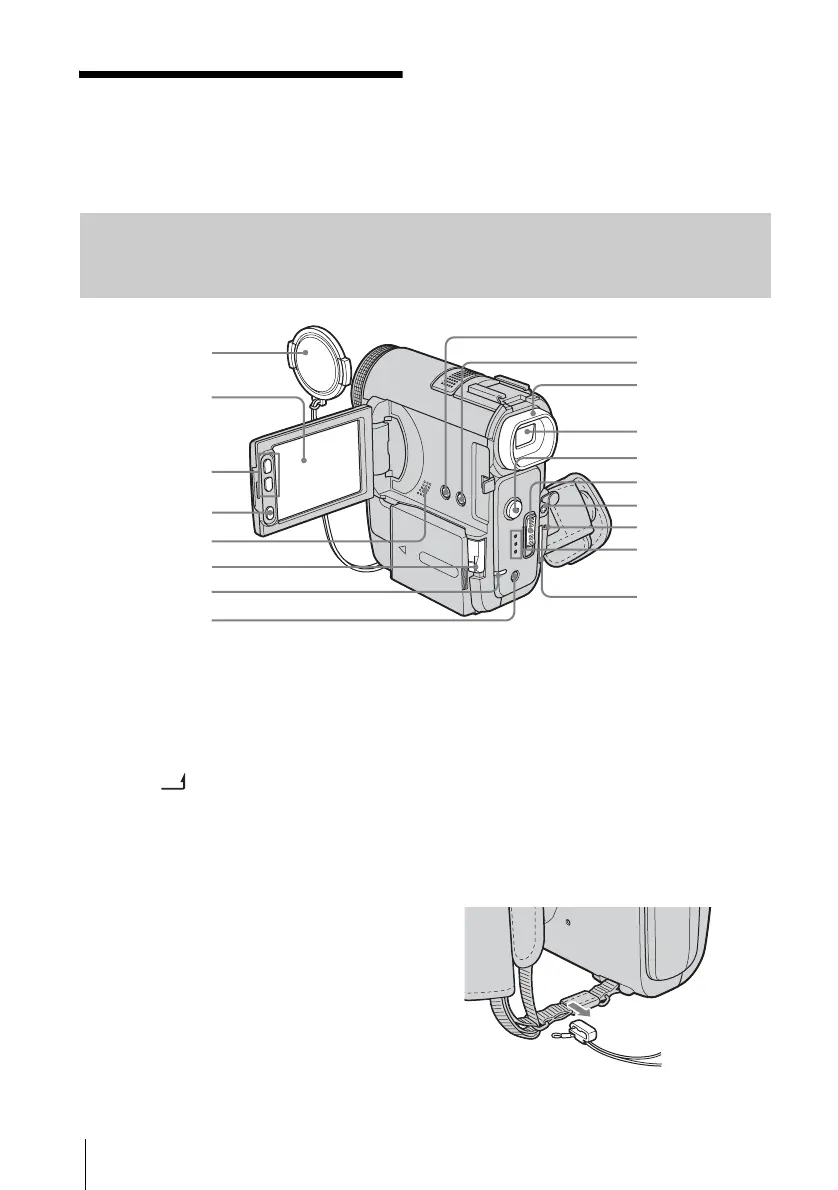

Identifying parts and
controls
Camcorder
A Lens cap (p. 26, 31)
B LCD/Touch panel screen (p. 2, 20)
C Zoom buttons on LCD frame (p. 28)
D REC START/STOP button (p. 26, 51)
E Speaker
F BATT
(battery release) lever (p. 16)
G CHARGE lamp (p. 16)
H EASY button (p. 36, 55)
I LCD BACKLIGHT button* (p. 20)
J DISPLAY/BATT INFO button (p. 17)
K Eyecup (p. 135)
L Viewfinder (p. 2, 20)
M POWER switch (p. 19)
N MIC (PLUG IN POWER) jack (red)/
MIC jack cover (p. 105)
This jack works as an input jack for an
external microphone as well as a power-
supply jack for a plug-in-power
microphone. When the external
microphone is connected, it takes
precedence.
O Access lamp (p. 23, 128)
P CAMERA-TAPE, CAMERA-
MEMORY, PLAY/EDIT mode lamps
(p. 19)
Q “Memory Stick Duo” slot (p. 23)
* This button is not available during Easy Handycam
operation (z mark on the camcorder).
To replace the lens cap
2
3
1
6
5
7
4
qa
9
q;
qs
qd
qf
qg
qh
qj
4
