Sony HBD-E770W User Manual

HBD-E770W
11
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

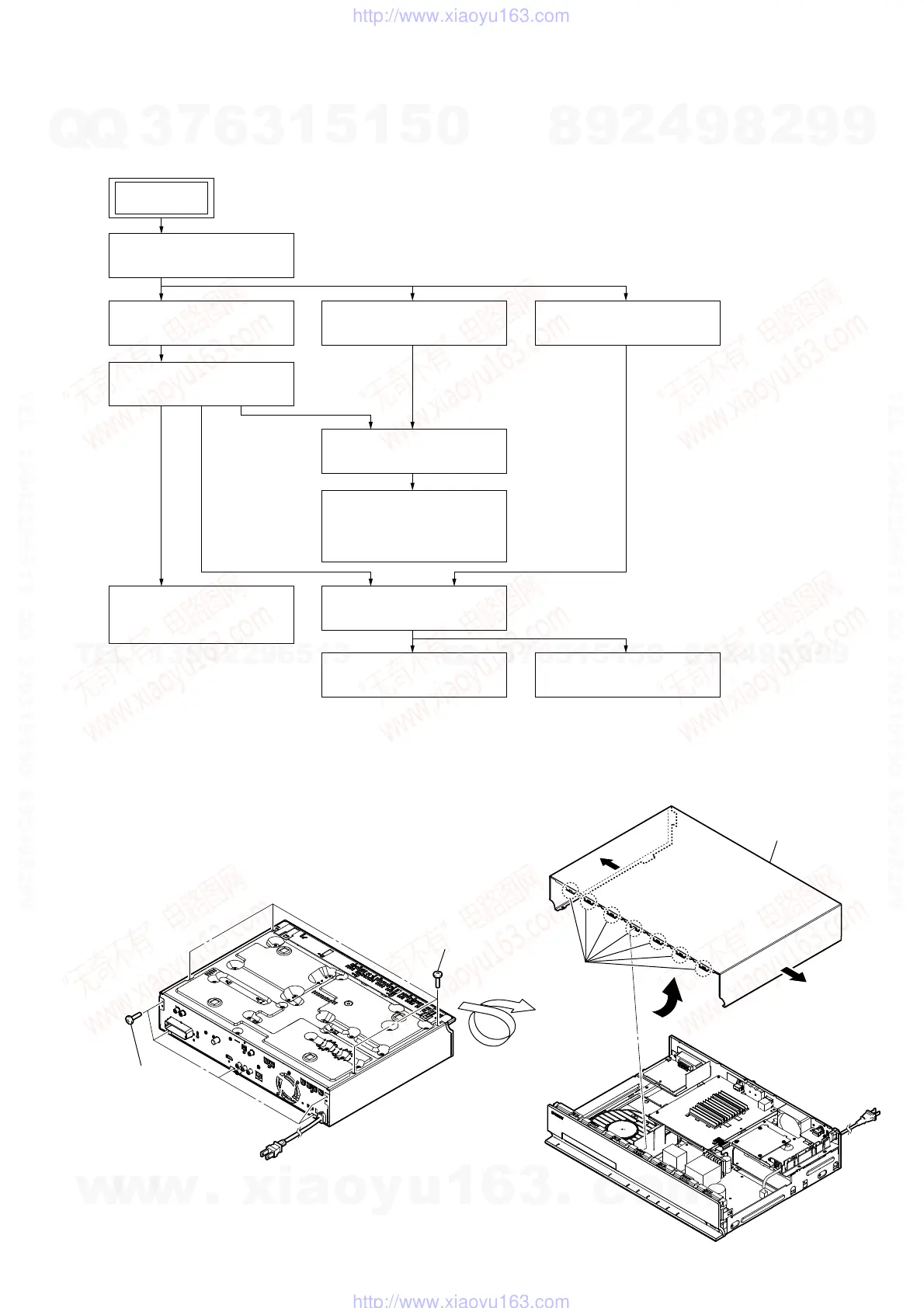

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE (EZ)
SET
2-3. MB-134 BOARD
(Page 12)
2-4. BRACKET (MB) BLOCK
(Page 13)
2-9. BACK PANEL BLOCK
(Page 15)
2-5. FUSE (F901),
POWER BOARD
(Page 13)
2-2. CASE (EZ)
(Page 11)
2-6. FRONT PANEL BLOCK
(Page 14)
2-10. MAIN BOARD
(Page 16)
2-11. AUDIO BOARD
(Page 16)
2-8. INCLUDE BOARD
(Page 15)
2-7. BD DRIVE (BPX-5)
(Page 14)
2-12. OPTICAL DEVICE
(KEM-460AAA),
WIRE (FLAT TYPE)
(Page 17)
1 four screws
(BV3)
6 case (EZ)
5 seven hooks
3
3
4
2 five screws
(BV/RING)
– Bottom view –
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
