Sony HCD-D1 Service Manual

NOTE:
@ -XX, -X mean standardized parts, so
they may have some difference from the
original one.
® The construction parts of an assembled
part are indicated with a collation
number in the remark column.
SECTION 8
EXPLODED VIEWS
@ Items marked “ * ”are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
The components identified by
mark \ or dotted line with mark
are critical for safety.
Replace only with part number
specified.
® Abbreviation
HK : Hong Kong
@ Hardware ( # mark) list and accessories
and packing materials are given in the
last of this parts list.
SP : Singapore

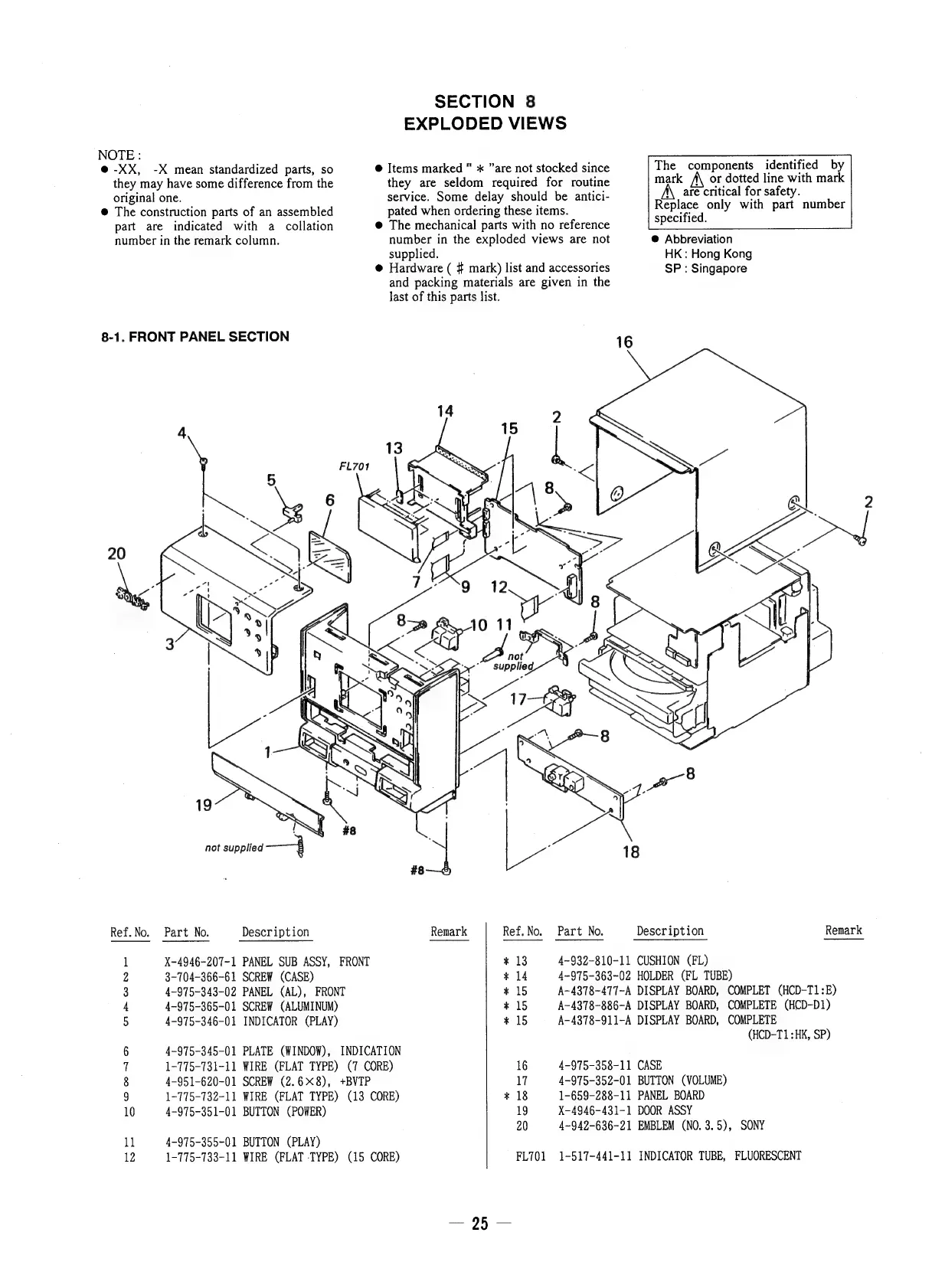

8-1. FRONT PANEL SECTION
not supplied —f
#8
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
1 X-4946-207-1 PANEL SUB ASSY, FRONT * 13 4-932-810-11 CUSHION (FL)
2 3-704-366-61 SCREW (CASE) * 14 4-975-363-02 HOLDER (FL TUBE)
3 4-975-343-02 PANEL (AL), FRONT * 15 A-4378-477-A DISPLAY BOARD, COMPLET (HCD-T1:E)
4 4-975-365-01 SCREW (ALUMINUM) * 15 A-4378-886-A DISPLAY BOARD, COMPLETE (HCD-D1)
5 4-975-346-01 INDICATOR (PLAY) * 15 A-4378-911-A DISPLAY BOARD, COMPLETE
(HCD-T1:HK, SP)
6 4-975-345-01 PLATE (WINDOW), INDICATION
1 1-775-731-11 WIRE (FLAT TYPE) (7 CORE) 16 4-975-358-11 CASE
8 4-951-620-01 SCREW (2.68), +BVTP 17 4-975-352-01 BUTTON (VOLUME)
9 1-775-732-11 WIRE (FLAT TYPE) (13 CORE) * 18 1-659-288-11 PANEL BOARD
10 4-975-351-01 BUTTON (POWER) 19 X-4946-431-1 DOOR ASSY
20 4-942-636-21 EMBLEM (NO. 3.5), SONY
ll 4-975-355-01 BUTTON (PLAY)
12 1-775-733-11 WIRE (FLAT TYPE) (15 CORE) FL701 1-517-441-11 INDICATOR TUBE, FLUORESCENT
