Sony HCD-D1 Service Manual

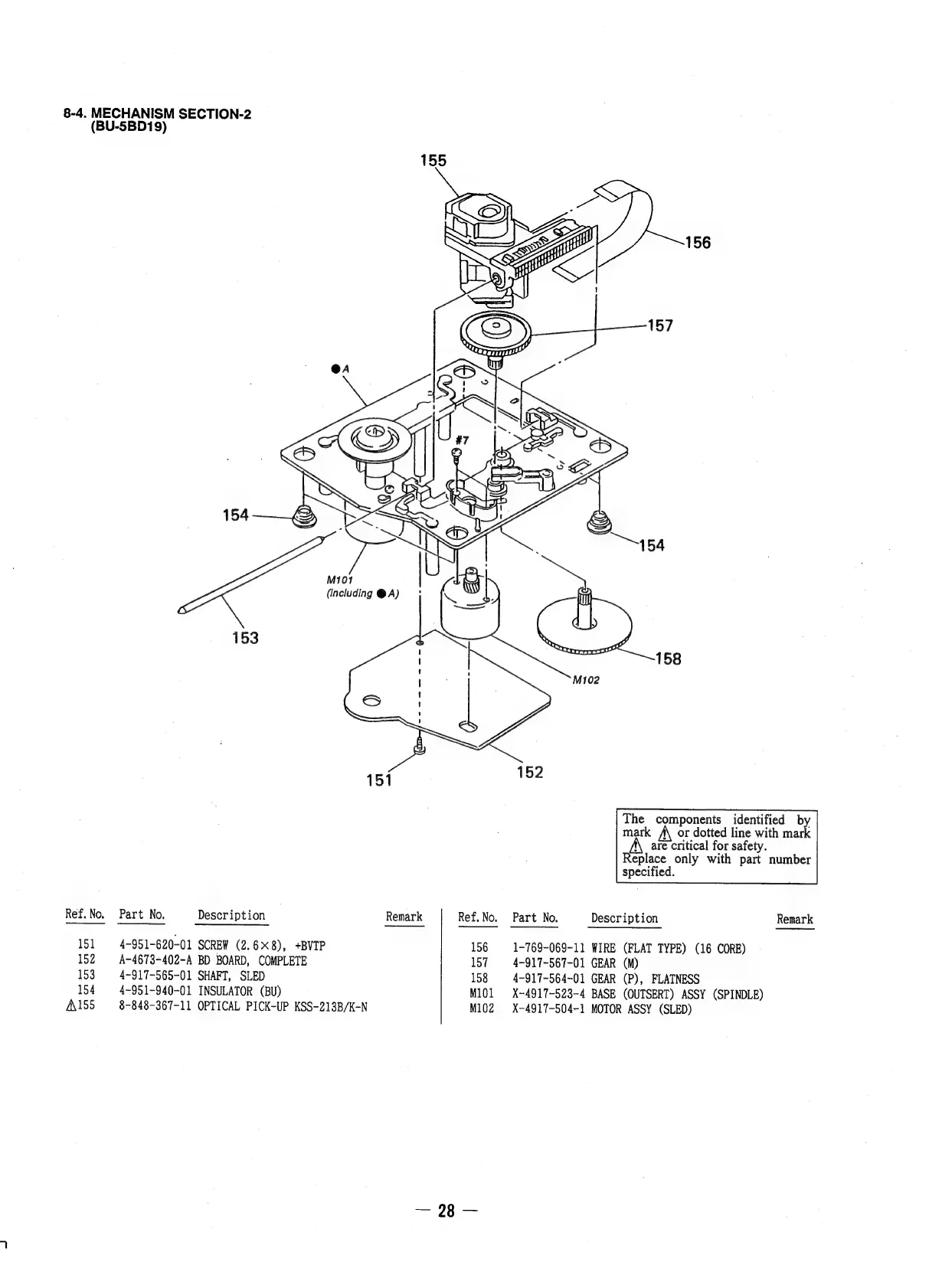

8-4. MECHANISM SECTION-2
(BU-5BD19)
154
153
151
Ref.No. Part No. Description
151 4-951-620-01 SCREW (2.68), +BVIP
152 A-4673=402-A BD BOARD, COMPLETE
153 4~917-565-01 SHAFT, SLED
154 4-951-940-01 INSULATOR (BU)
A155 8-848-367-11 OPTICAL PICK-UP KSS-213B/K-N
Remark
Ref. No.
156
157
158
M101
M102
Part No.
156
158
152
The components identified by
mark A\ or dotted line with mark
are critical for safety.
Replace only with part number
specified.
Description
Remark
1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
4-917-567-01 GEAR (M)
4-917-564-01 GEAR (P), FLATNESS
X-4917-523-4 BASE (OQUTSERT) ASSY (SPINDLE)
X-4917-504-1 MOTOR ASSY (SLED)
