Sony HCD-D1 Service Manual

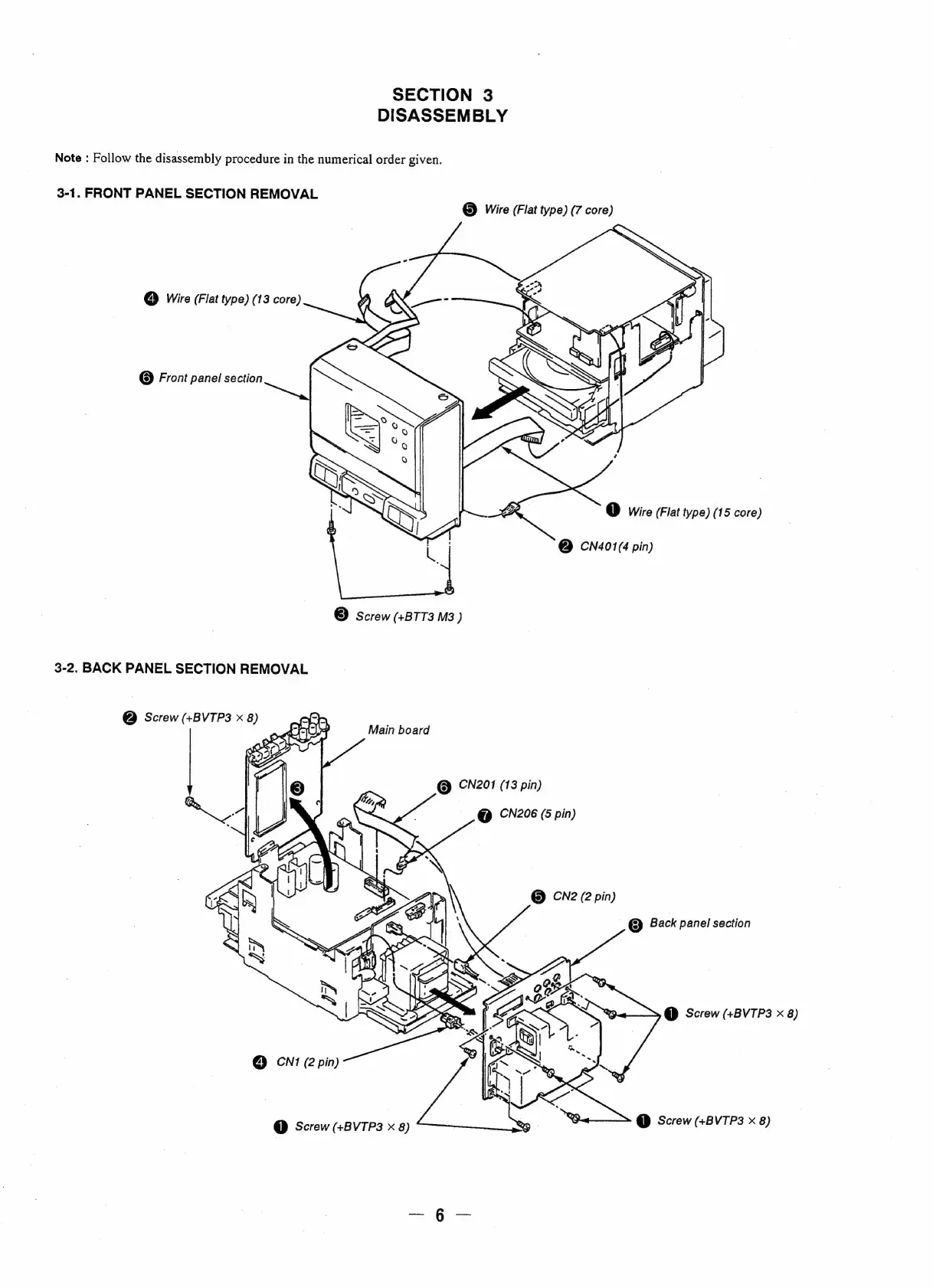

SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. FRONT PANEL SECTION REMOVAL
© Wire (Flat type) (7 core)
@ Wire (Flat type) (13 core)
@ Front panel section
O Wire (Flat type) (15 core)
@ CN401(4 pin)
© screw (+BTT3 M3)
3-2. BACK PANEL SECTION REMOVAL
Main board
6] CN201 (13 pin)
@ ©N206 (5 pin)
© C2 (2 pin)
@ Back panel section
@ Screw (+BVTP3 x 8)
@ CN1 (2 pin)
@
Screw
(+BVTP3
x
8)
@
Screw
(+BVTP3
x
8)
