Sony HCD-D1 Service Manual

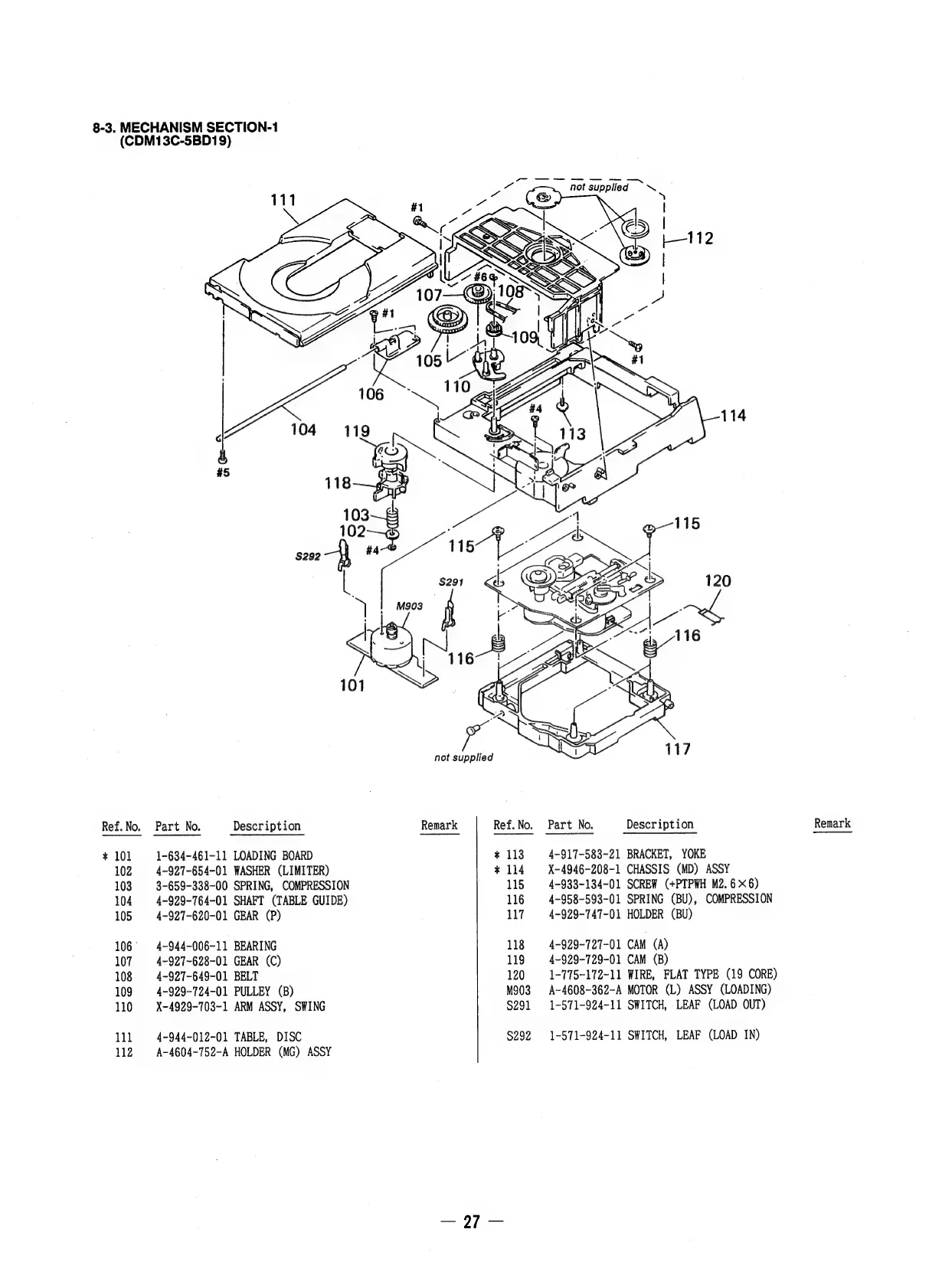

8-3. MECHANISM SECTION-1
(CDM13C-5BD19)
Ref. No.
* 101
102
103
104
105
106°
107
108
109
110
111
112
Part No.
not supplied
Description
1-634-461-11 LOADING BOARD
4~927-654-01 WASHER (LIMITER)
3-659-338-00 SPRING, COMPRESSION
4-929-764-01 SHAFT (TABLE GUIDE)
4~927-620-01 GEAR (P)
4-944-006-11 BEARING
4-927-628-01 GEAR (C)
4-927-649-01 BELT
4-929-724-01 PULLEY (B)
X-4929-703-1 ARM ASSY, SWING
4~944-012-01 TABLE, DISC
A-4604-752-A HOLDER (MG) ASSY
Remark
Ref. No.
* 113
* 114
115
116
117
118
119
120
M903
$291
9292
Part No.
Description Remark
4-917-583-21 BRACKET, YOKE
X-4946-208-1 CHASSIS (MD) ASSY
4-933~134-01 SCREW (+PTPWH M2. 6 x6)
4-958-593-01 SPRING (BU), COMPRESSION
4-929-747-01 HOLDER (BU)
4-929-727-01 CAM (A)
4-929-729-01 CAM (B)
1-775-172-11 WIRE, FLAT TYPE (19 CORE)
A-4608-362-A MOTOR (L) ASSY (LOADING)
1-571-924-11 SWITCH, LEAF (LOAD OUT)
1-571-924-11 SWITCH, LEAF (LOAD IN)
