17
HCD-DX155/DX255

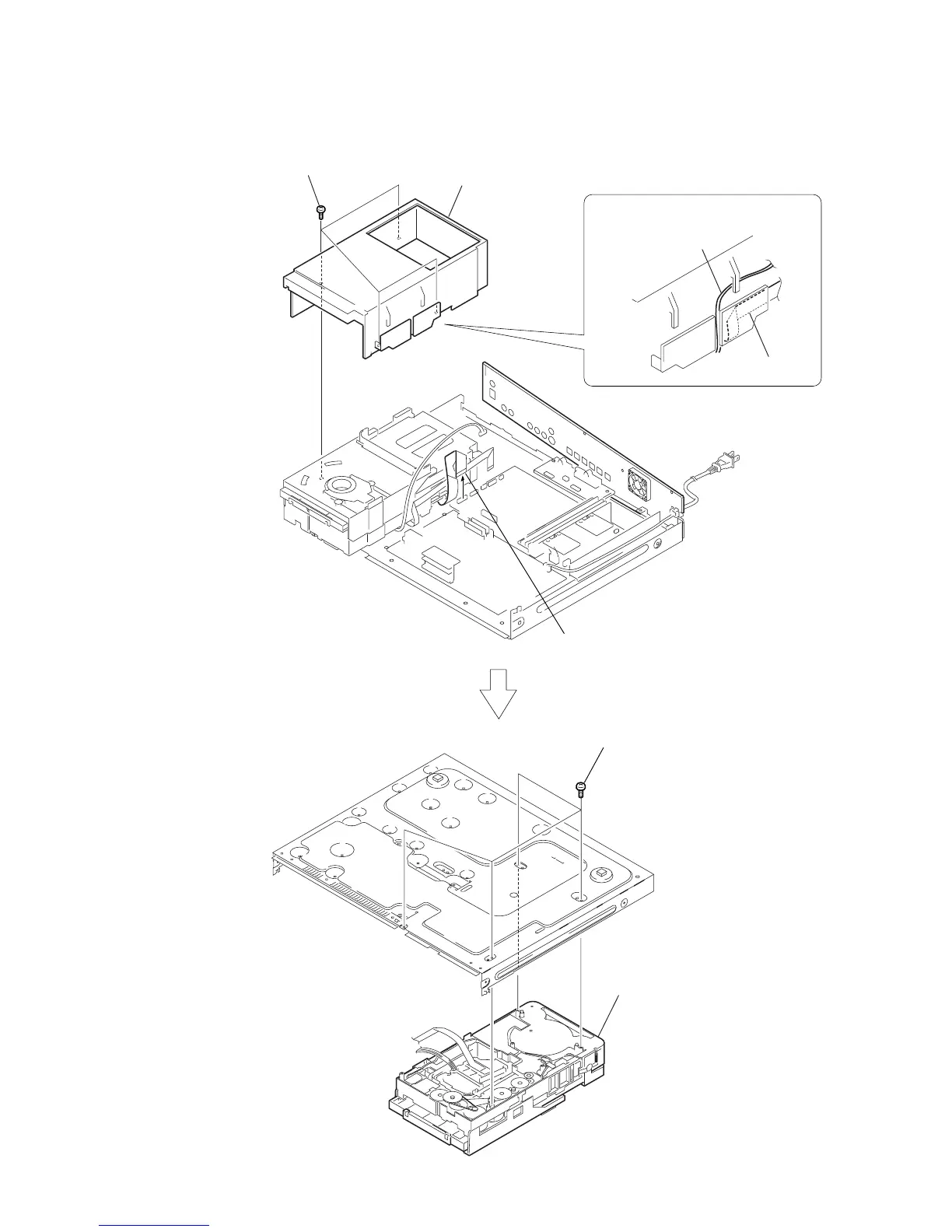

3-9. DVD MECHANISM DECK (CDM81C-DVBU101)
4
MD COVER
3
four
screws (+BV 3)
2
Remove the harness and flexible cable.
flexible cable
harness
1
wire (flat type) 21core (CN508)
5
four
screws
(+BVTP 3
×
10)
6
DVD mechanism deck
(CDM81C-DVBU101)
