HCD-DX155/DX255

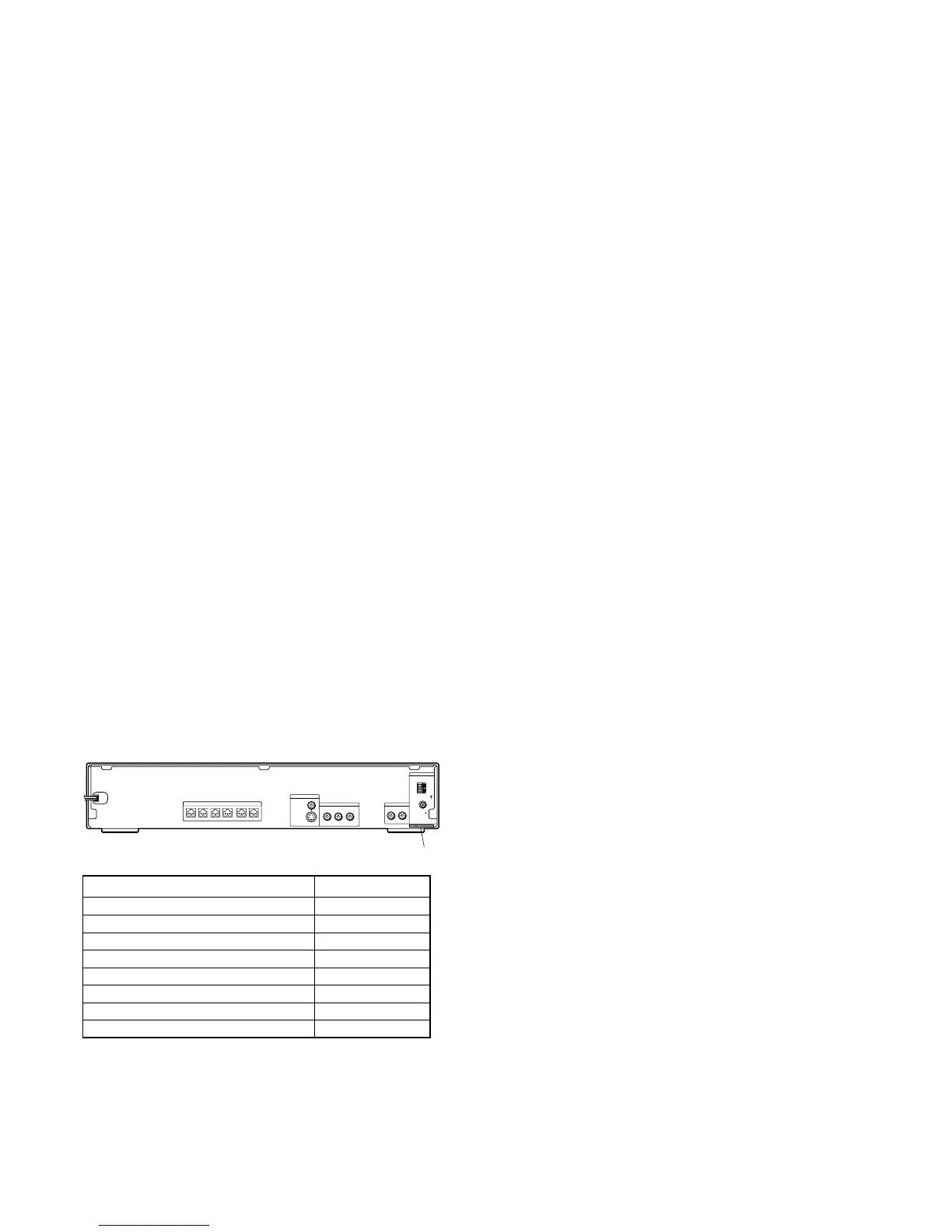

MODEL IDENTIFICATION
– Rear Panel –
Model Part No.
DX155 : US model 2-661-240-0[]
DX255 : US model 2-661-240-1[]
DX155 : SP model 2-661-240-2[]
DX155 : MX model 2-661-240-3[]
DX155 : CND model 2-661-240-4[]
DX255 : CND model 2-661-240-5[]
DX155 : AUS model 2-661-240-6[]
DX155 : E3 model 2-661-240-7[]
•Abbreviation
AUS: Australian model
CND : Canadian model
E3 : 240V AC area in E model
MX : Mexican model
SP : Singapore model
*Depending on the sound field settings and the source,
there may be no sound output.
Inputs
TV/VCR (AUDIO IN) Sensitivity: 450/250 mV
AUDIO IN/MIC Sensitivity: 250/125 mV
Outputs (Analog)
Phones Accepts low-and high-
impedance headphones.
DVD system
Laser Semiconductor laser
(DVD: λ = 650 nm)
(CD: λ = 790 nm)
Emission duration:
continuous
Signal format system
North American, Latin, and Mexican models:
NTSC
Other models: NTSC/PAL
Tuner section
System PLL quartz-locked digital
synthesizer system
FM tuner section
Tuning range
North American models: 87.5 – 108.0 MHz
(100 kHz step)
Other models: 87.5 – 108.0 MHz
(50 kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Middle Eastern models: 531-1,602 kHz (with the
interval set at 9 kHz)
Asian models: 531-1,602 kHz (with the
interval set at 9 kHz)
530-1,710 kHz (with the
interval set at 10 kHz)
North American and Latin American models:
530-1,710 kHz (with the
interval set at 10 kHz)
531-1,710 kHz (with the
interval set at 9 kHz)
Antenna (aerial) AM loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Outputs V
S VIDEO:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
IDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
P B /C B , P R /C R : 0.7 Vp-p
75 ohms
Other models:
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference)
RMS output power, 10 %
THD
Front: 143 W + 143 W
(with SS-TS52)
Center*: 143 W
(with SS-CT51)
Surround*: 143 W + 143
W
(with SS-TS51)
Subwoofer*: 285 W
(with SS-WS52B)
General
Power requirements
North American and Mexican models:
120 V AC, 60 Hz
Latin American models: 110 – 240 V AC, 50/60 Hz
Other models: 220 – 240 V AC, 50/60 Hz
Power consumption On: 140 W (Latin
American models of
DX155), 150 W
(Mexican and other models
of DX155), 160 W (DX255)
Standby: 0.3 W (at the
Power Saving mode)
Dimensions (approx.) 430 × 86 × 418 mm
(17 × 3
1
/2 × 16
3
/4 inches)
(w/h/d) incl. projecting
parts
Mass (approx.) 5.0 kg (11 lb 1 oz)
Design and specifications are subject to change
without notice.
COAXIAL
AM
FM
75
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER WOOFER
COMPONENT VIDEO OUT
TV/VCR
MONITOR OUT
ANTENNA
(DVD ONLY )
YPB/CB PR/CR
RLAUDIO IN
VIDEO
(DVD ONLY )
S VIDEO
Parts No.
