Sony HCD-ECL5 Service Manual

HCD-ECL5
13

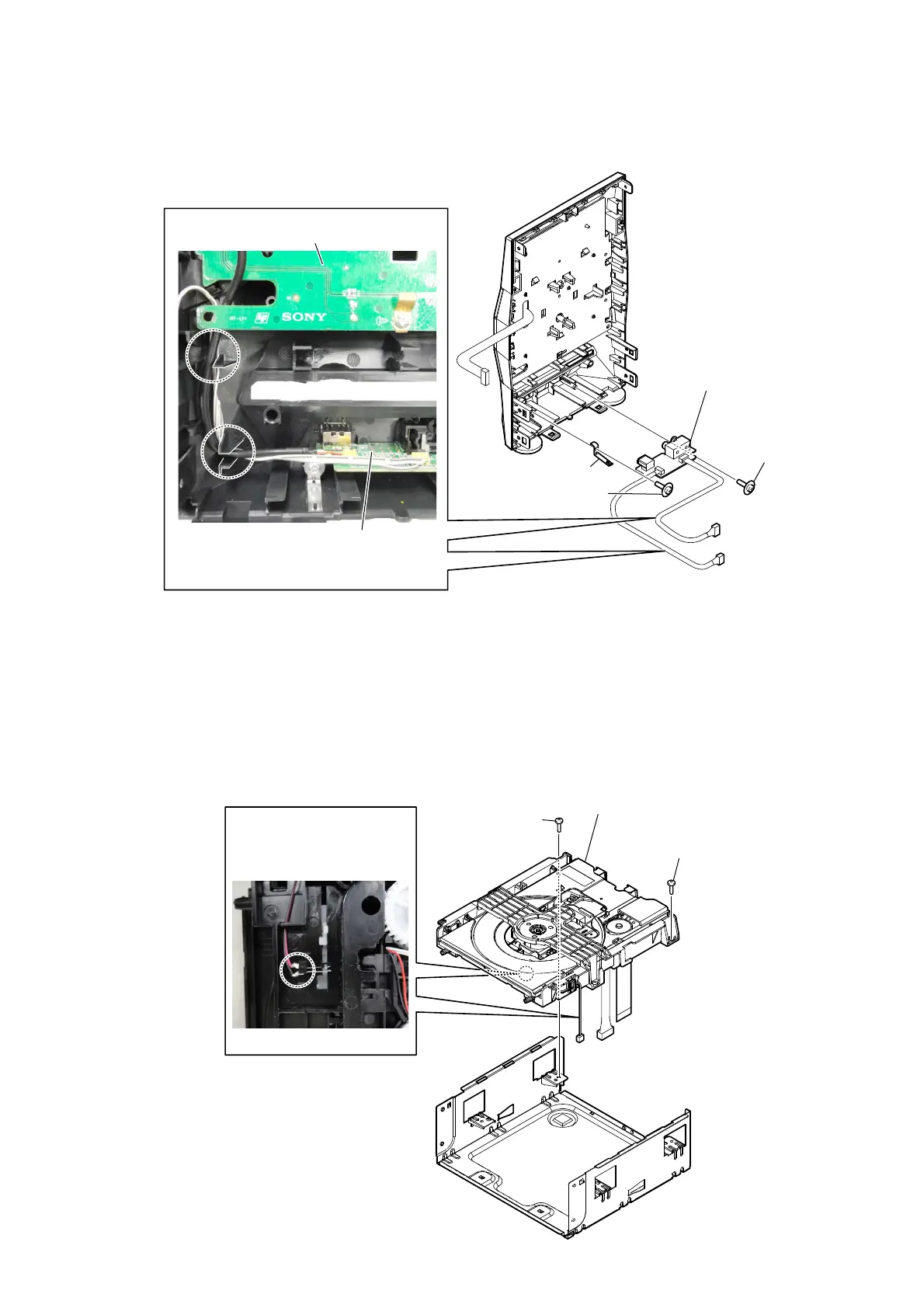

2-10. USB BOARD
2-11. LOADER WITH FFC (TDL-5) (CDM1)
3 USB board
– Front panel block rear view –
 Wire setting
FRONT board
USB board
– Front panel block rear view –
2 ground plate
1 USB PWB screw
(2.6 u 8)
1 USB PWB screw
(2.6 u 8)
2 loader with FFC (TDL-5)
(CDM1)
– Bottom view –
1 screw
(silver 3 u 8)
1 screw
(silver 3 u 8)
Note:
The wire is soldered to the
terminal of the switch.
Be careful so that not cut
or bend the terminal.
