Sony HCD-ECL5 Service Manual

HCD-ECL5
7
Note: Follow the disassembly procedure in the numerical order given.

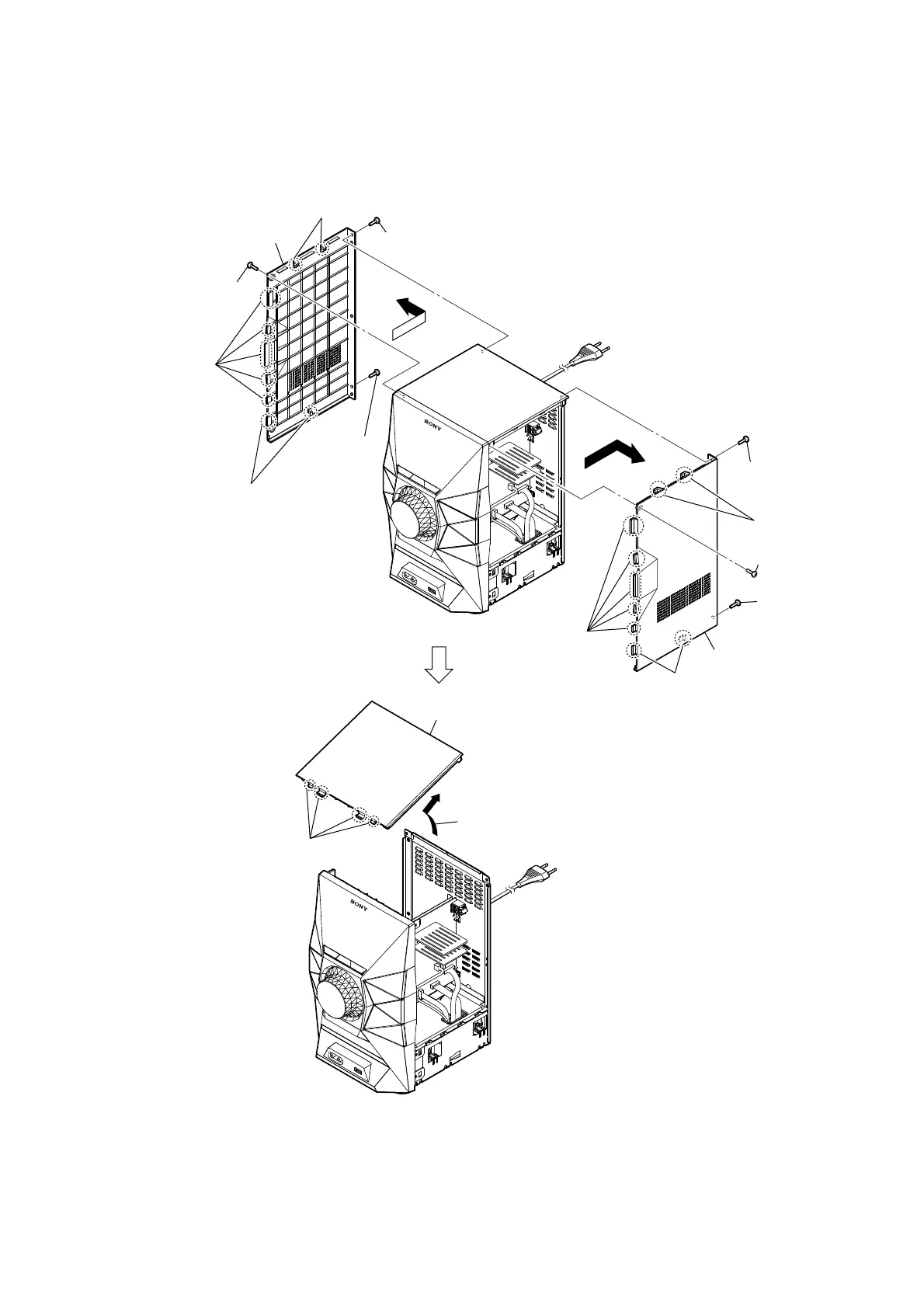

2-2. SIDE COVER, TOP COVER ASSY
2 two claws
2 five claws
3
3
6 Remove the top cover assy
in the direction of an arrow.
7 top cover assy
2 five claws
4 right side cover
4 left side cover
5 four claws
2 two claws
2 two claws
2 two claws
1 rear screw
(black 3 u 8)
1 rear screw
(black 3 u 8)
1 rear screw
(black 3 u 8)
1 rear screw
(black 3 u 8)
1 rear screw
(black 3 u 8)
1 rear screw
(black 3 u 8)
