Sony HCD-ECL5 Service Manual

HCD-ECL5
9

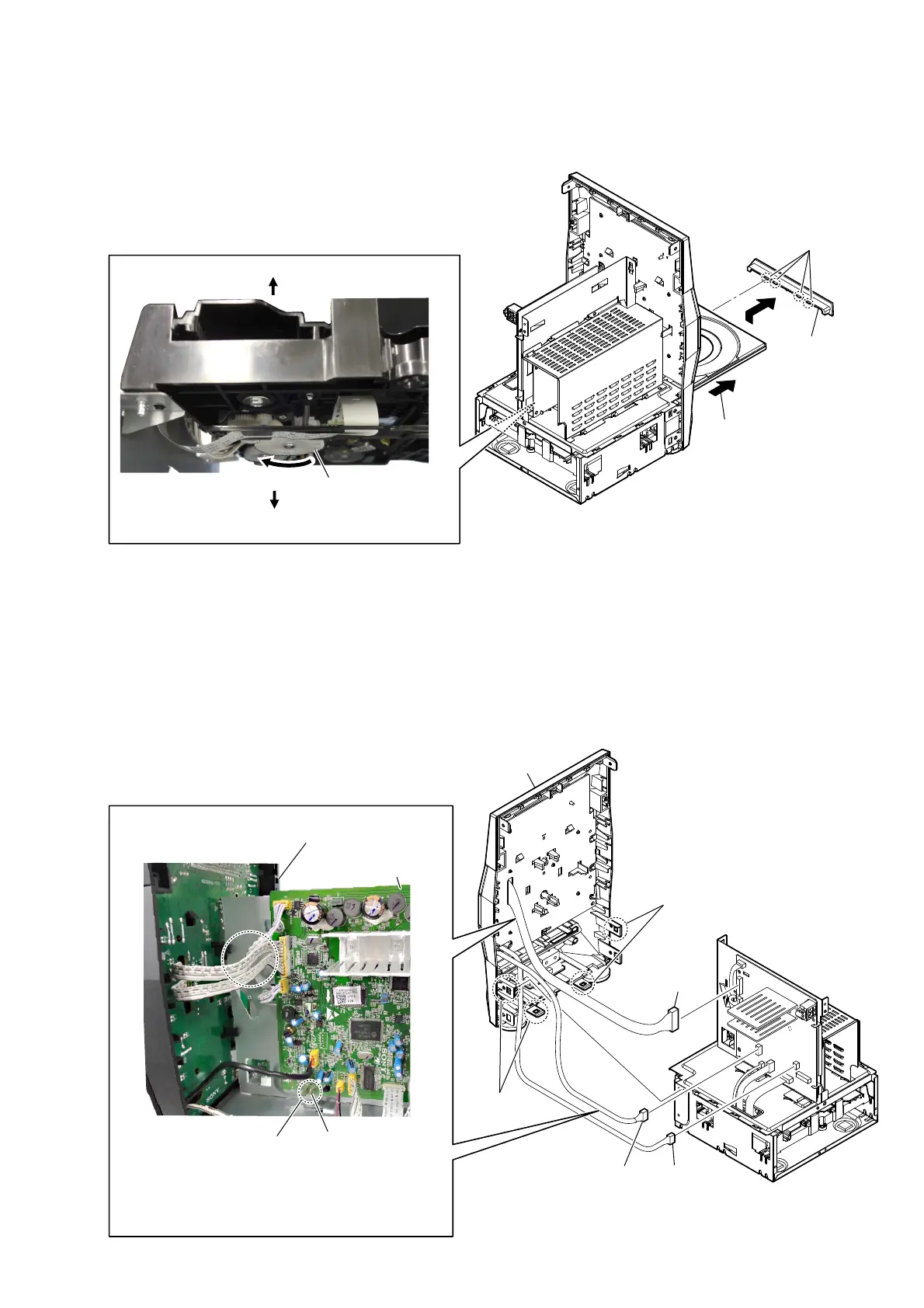

2-5. FRONT PANEL BLOCK
2-4. CD DOOR
3 four claw
s
– Rear view –
1 Turn the traverse gear in
the direction of an arrow.
bottom side
top side
– Rear view –
4 CD door
2 Pull out the disc tray.
4 two claws
5
front panel block
– Rear right view –
 Wire setting
MAIN board
front panel block
4 two claws
3 connector
(XP15)
2 connector
(XP7)
1 connector
(XP19)
– Right view –
resistor
Note:
When installing the wire,
be careful not to touch
the resistor.
