HCD-ECL5
8

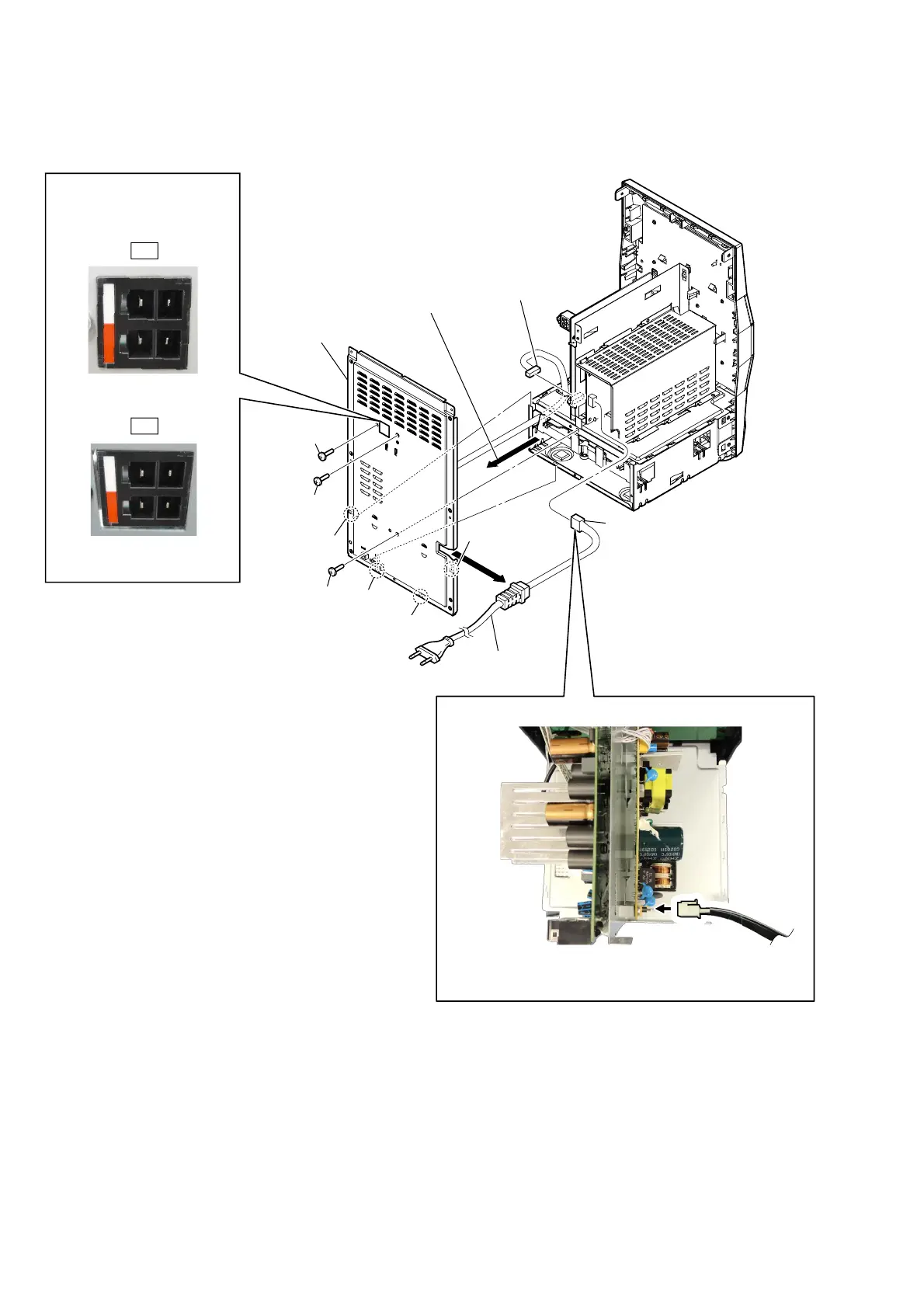

2-3. POWER CORD (AC1), REAR PANEL BLOCK
4 connector
(XP16)
6 claw
6 claw
8 rear panel block
7 Remove the rear panel block
in the direction of an arrow.
– Rear view –
6 claw
Note 2:
When installing the rear
panel block, check that
jacks are properly secured.
2
1 power cord connector
(CON501)
3 power cord
(AC1)
6 claw
5 screw
(silver 3 u 8)
5 screw
(silver 3 u 8)
5 screw
(silver 3 u 8)
OK
NG
Jacks are fitted to
the surface.
Jacks has been
depressed.
Power cord setting
– Top view –
Note 1:
When installing the power cord (AC1),
check the direction of connector.
To Next Page
