Sony HCD-FR1 User Manual

49
HCD-FR1/FR8/FR9

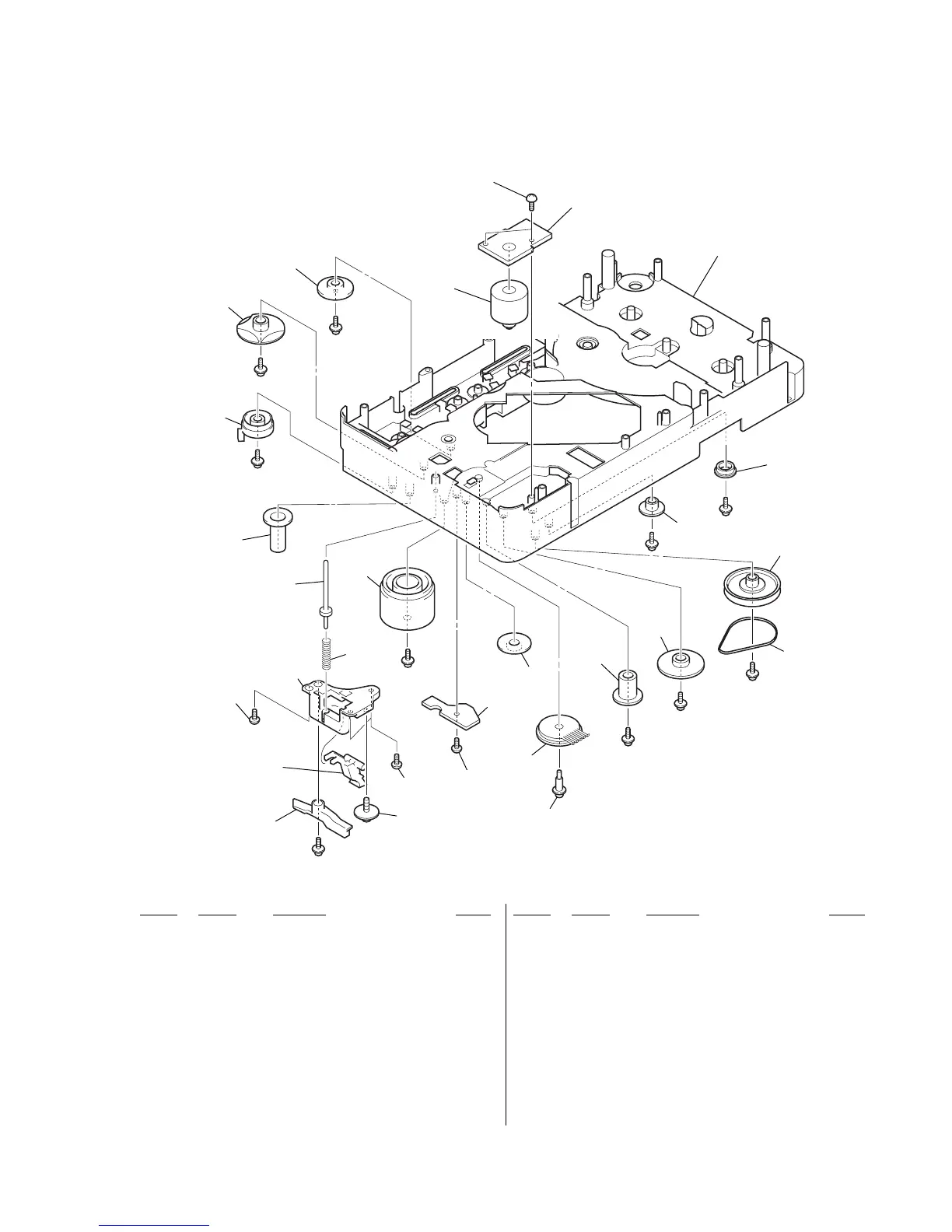

4-9. MECHANISM DECK SECTION-6
(CDM69-DVBU16)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
551 4-239-693-01 CAM (GEAR)
552 1-685-004-11 SENSOR BOARD
553 4-239-696-01 GEAR (EJECT LOCK)
554 4-239-695-02 CAM (EJECT LOCK)
555 4-240-018-01 GEAR (MODE 4)
556 4-240-019-01 GEAR (MODE 5)
557 4-239-700-01 GEAR (MODE 2)
558 4-239-683-01 PULLEY (MODE DECELERATION)
559 4-239-682-01 BELT (MODE)
560 4-239-688-01 GEAR (MODE 3)
561 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING
562 4-239-684-01 GEAR (MODE 1)
563 4-951-620-01 SCREW (2.6X8), +BVTP
564 4-239-692-01 CAM (BU U/D)
565 4-239-694-01 GEAR (MODE CAM)
566 4-241-731-01 SHUTTER (A), LEVER
567 4-241-732-01 SHUTTER (B), LEVER
568 4-241-733-01 BASE (SHUTTER)
569 4-241-734-01 SHAFT (SHUTTER)
570 4-241-735-01 SPRING (SHUTTER), COMPRESSION
571 4-227-899-01 SCREW (DIA.12), FLOATING
M761 A-4735-953-A MOTOR (STOCKER) ASSY (MODE)
S771 1-477-300-11 ENCODER, ROTARY (MODE)
#7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
555
556
557
562
560
558
559
563
551
552
563
563
571
563
566
567
568
569
570
561
564
554
565
553
#7
#7
#7
#7
#7
#7
#7
#7
S771
#7
#7
not supplied
not supplied
M761
