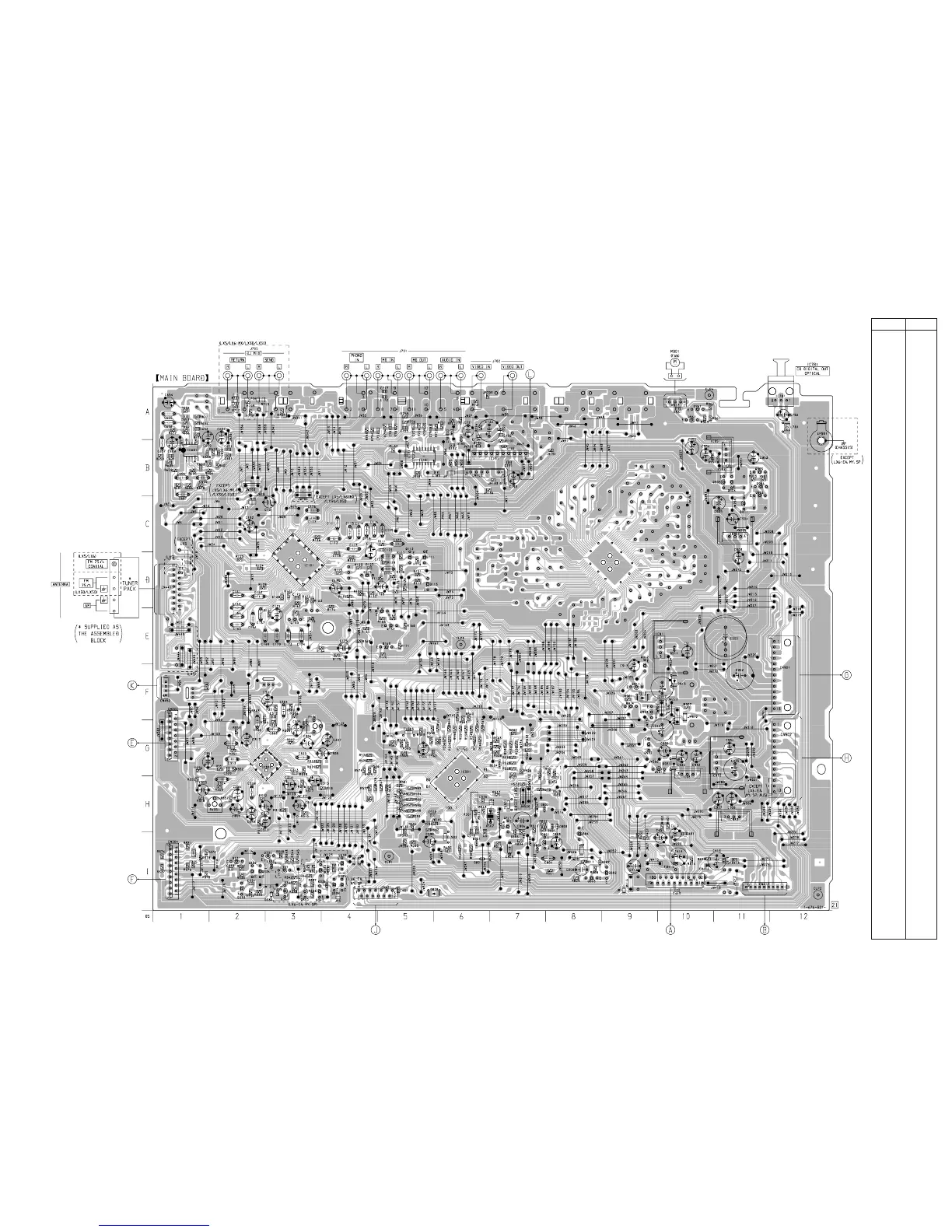

4-10. PRINTED WIRING BOARD – MAIN Board – • See page 11 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D191 B-7
D192 B-7
D193 A-6
D194 B-6
D333 I-3
D334 I-3
D335 I-4
D336 I-4
D501 I-6
D534 G-7
D801 I-6
D802 H-7
D803 H-8
D804 I-7
D805 H-8
D806 H-7
D807 H-8
D808 I-6
D911 E-10
D912 F-9
D913 F-10
D931 G-10
D951 B-10
IC101 D-3
IC181 B-5
IC191 B-7
IC301 G-2
IC501 H-6
IC601 B-1
IC781 A-12
IC801 I-7
IC901 C-11
IC911 E-10
IC931 G-10
IC932 G-11
IC932 G-12
IC933 H-11
IC951 B-11
Q111 D-5
Q112 D-5
Q113 D-5
Q115 D-4
Q161 E-5
Q162 E-5
Q163 E-5
Q165 E-3
Q331 I-2
Q332 I-2
Q333 I-2
Q334 I-2
Q335 I-4
Q336 I-3
Q337 I-3
Q338 I-4
Q339 I-4
Q340 I-3
Q341 I-3
Q342 I-3
Q343 I-3
Q801 H-7
Q802 H-9
Q803 H-8
Q804 I-8
Q901 C-11
Q902 B-11
Q903 B-11
Q904 B-11
Q905 B-11
Q906 B-11
Q911 F-9
Q912 F-9
Q913 F-9
Q914 F-9
Q931 G-10
Q932 G-9
Q961 A-10
Q962 A-10
(Page 26)
(Page 16)
(Page 18)
(Page 30)
(Page 32)
(Page 32)
(Page 14)(Page 12)
(Page 24)
