24
24

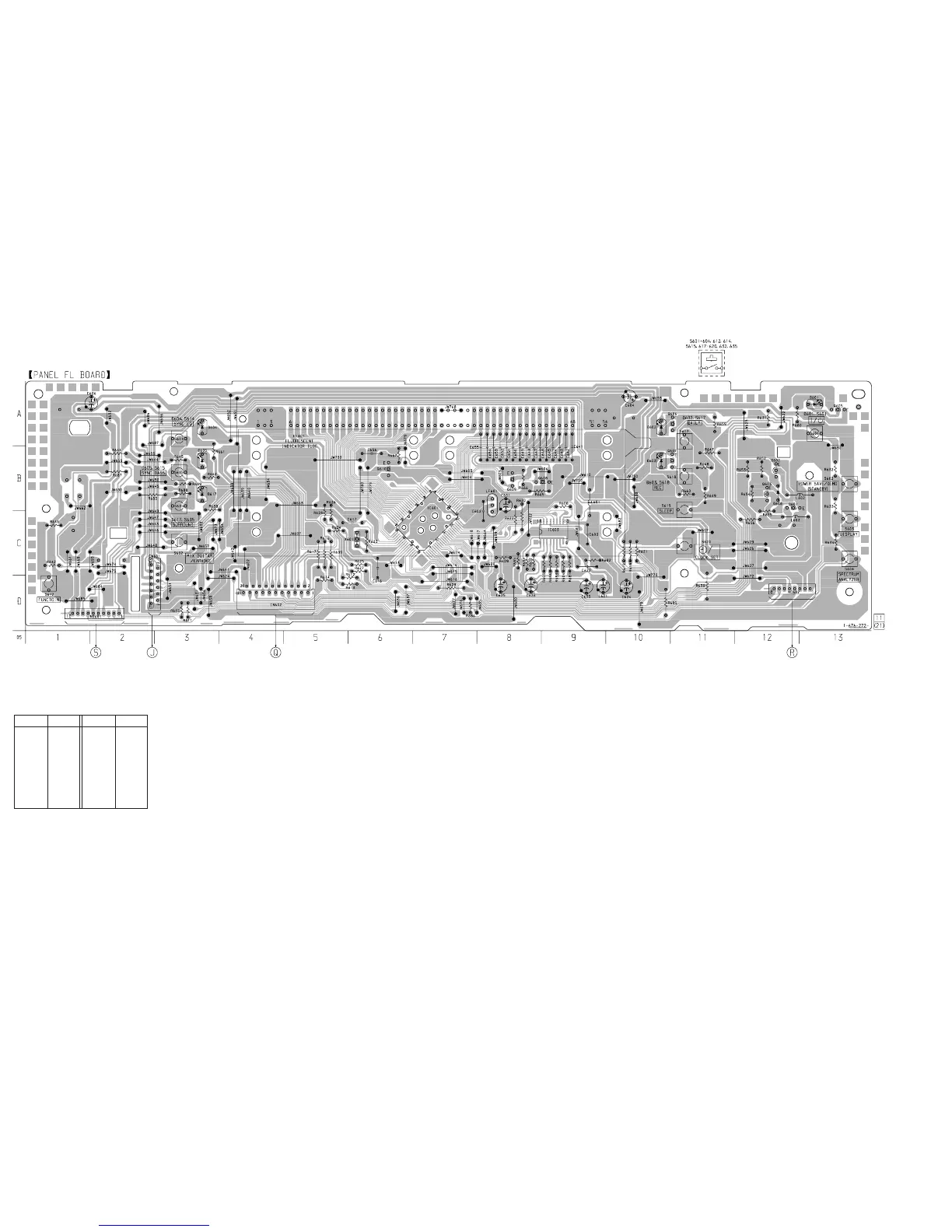

HCD-LX5/LX6/LX30/LX50
4-14.
PRINTED WIRING BO
ARD – P
ANEL FL Board –
•
See page 11 for Circuit Boards Location.
•
Semiconductor Location
Q601
B-12
Q602
B-12
Q603
B-12
Q605
A-13
Q606
A-11
Q607
B-11
Q608
B-9
Q609
B-8
Q610
B-6
Ref.
No.
Location
Ref.
No.
Location
D601
A-13
D602
A-10
D603
B-10
D604
A-3
D605
B-3
D608
B-12
D617
B-3
IC601
C-7
IC603
C-9
(Page 28)
(Page 19)
(Page 26)
(Page 28)
23
25
Table of Contents
1 Servicing Notes
3
Table of Contents
3
2 General
4
Location of Controls
4
Setting the Time
6
3 Disassembly
7
4 Diagrams
11
Note for Printed Wiring Boards and Schematic Diagrams
11
Printed Wiring Board - BD Board
12
Schematic Diagram - BD Board
13
Printed Wiring Boards - CD MOTOR Section
14
Schematic Diagram - CD MOTOR Section
15
Printed Wiring Board - AUDIO Board
16
Schematic Diagram - AUDIO Board
17
Printed Wiring Board - LEAF SW Board
18
Schematic Diagram - LEAF SW Board
18
Printed Wiring Board - MAIN Board
19
Schematic Diagram - MAIN Board (1/3)
20
Schematic Diagram - MAIN Board (2/3)
21
Schematic Diagram - MAIN Board (3/3)
22
Printed Wiring Board - PANEL FL Board
24
Schematic Diagram - PANEL FL Board
25
Printed Wiring Board - PANEL VR Board
26
Schematic Diagram - PANEL VR Board
27
Printed Wiring Boards - TC-A/TC-B/CD-L/ CD-L2/CD-R/CD-R2 Boards
28
SCHEMATIC DIAGRAM - TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards
29
Printed Wiring Boards - FRONT INPUT/ HEADPHONE/MIC Boards
30
SCHEMATIC DIAGRAM - FRONT INPUT/HEADPHONE/MIC Boards
31
Printed Wiring Board - PA Board
32
Schematic Diagram - PA Board
33
Printed Wiring Boards - TRANS/SUB TRANS
34
(LX5/LX30/LX50) Boards
34
Schematic Diagram - TRANS/SUB TRANS (LX5/LX30/LX50) Boards
35
Audio Board
37
Main Board
37
5 Exploded Views
38
6 Electrical Parts List
46
