HCD-LX5/LX6/LX30/LX50
• Semiconductor
Location
Ref. No. Location
D401 G-4
D402 C-2
D405 A-1
D406 B-1
D801 F-4
D802 E-5
D803 E-6
D804 G-2
D805 E-3
D831 I-8
D833 I-5
D834 I-5
D835 I-5
D836 I-5
D841 I-3
D842 I-2
D843 I-3
D844 I-3
D851 F-4
D852 E-5
D853 I-7
D902 F-9
D903 G-9
D904 G-9
D905 G-9
D906 H-10
D907 G-8
D908 G-9
D909 G-9
D910 G-8
D911 I-9
D912 I-8
D913 I-10
IC801 D-4
IC901 I-10
Q401 C-1
Q402 C-1
Q431 F-8
Q432 G-8
Q433 G-8
Q434 G-7
Q437 G-8
Q439 G-8
Q801 F-3
Q803 F-6
Q804 F-6
Q805 H-3
Q831 F-2
Q832 F-2
Q833 G-2
Q834 F-3
Q851 F-4
Q855 H-3
Q901 G-10
Q902 H-9
Q903 I-10
Q904 I-8
Q905 I-8
Q906 I-10
Q907 I-10
Q908 I-9

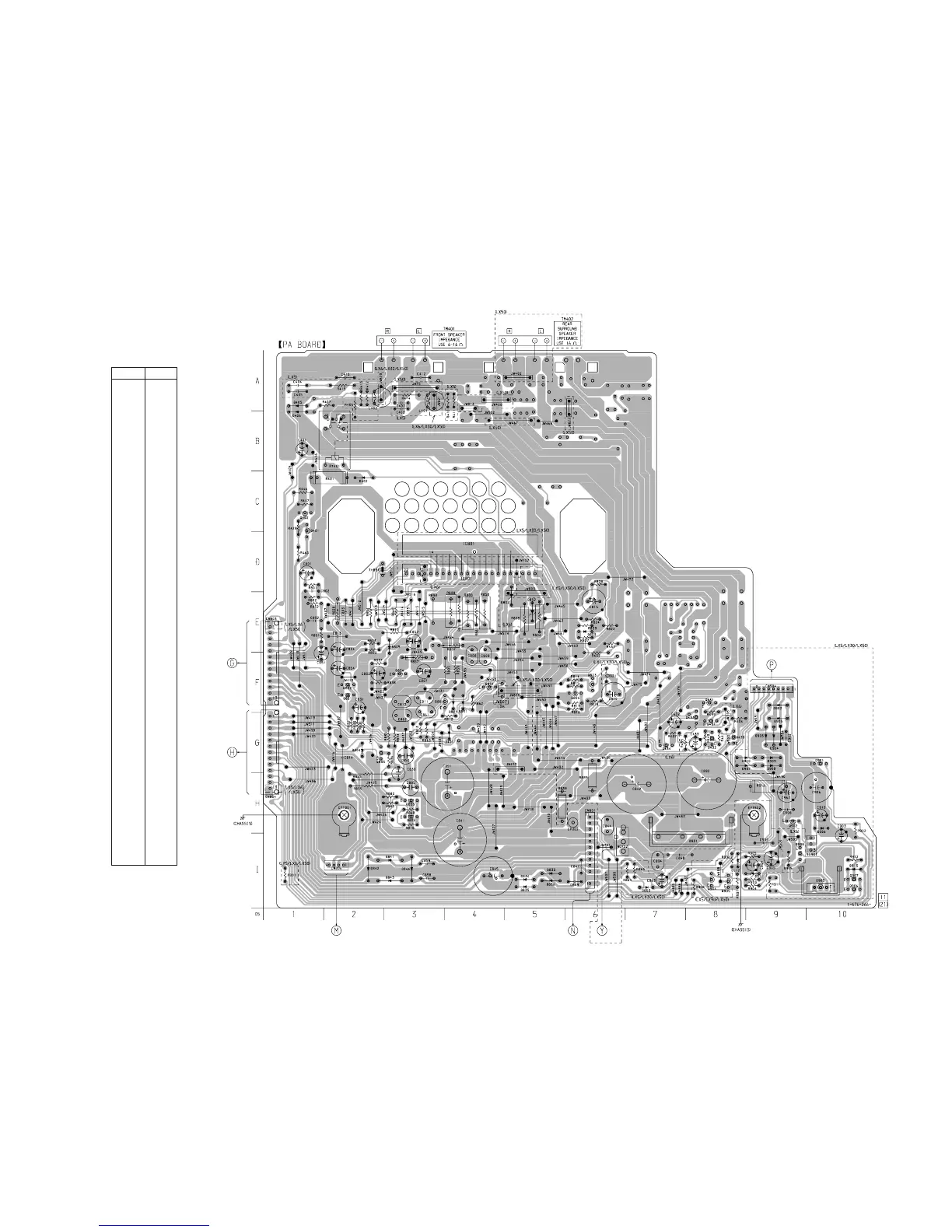

4-22. PRINTED WIRING BOARD – PA Board – • See page 11 for Circuit Boards Location.
(Page 19)
(Page 19)
(Page 30)
(Page 34)
(Page 34)
(Page 34)
