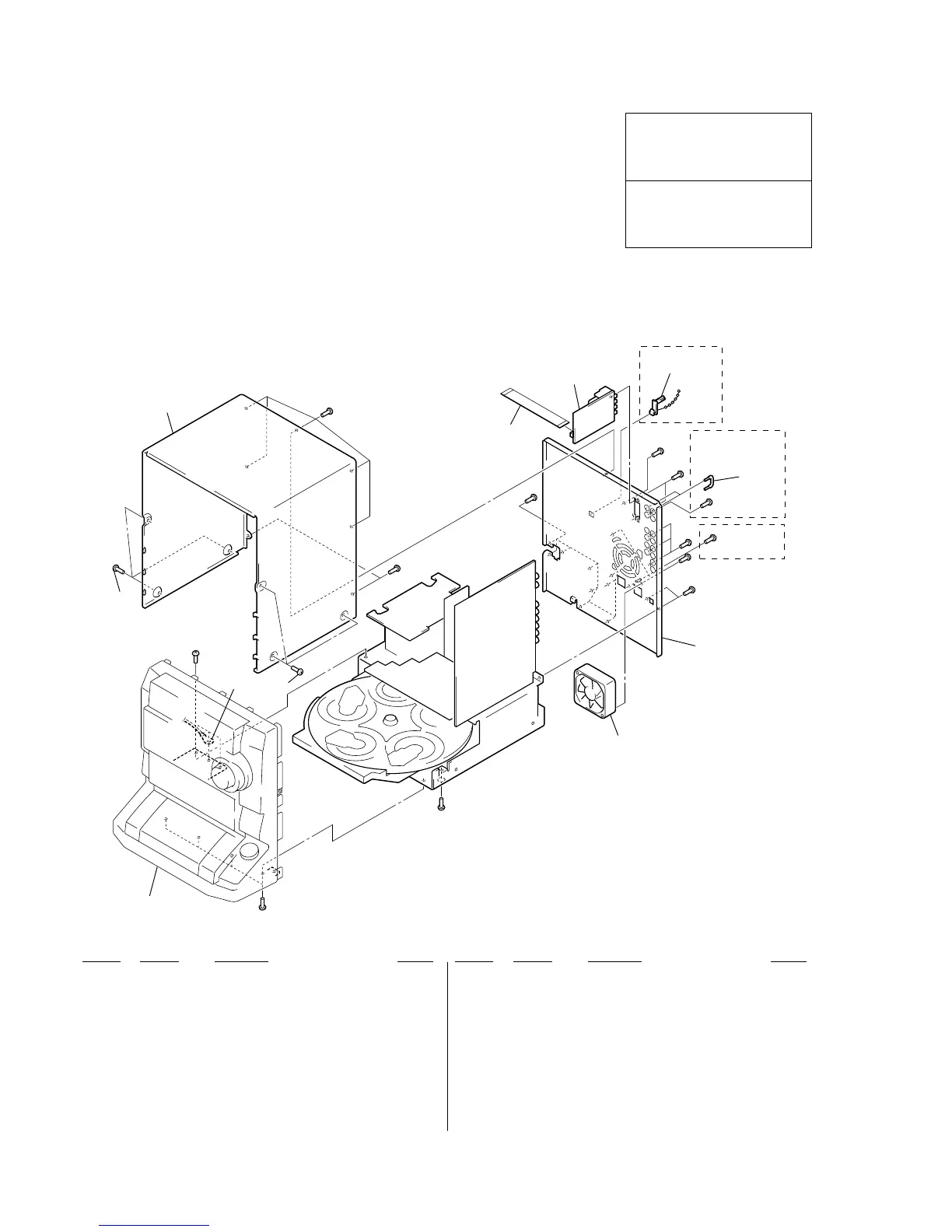

(1) CASE, BACK PANEL SECTION
SECTION 5
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AR : Argentine model
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SP : Singapore model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-214-777-51 CASE
2 3-363-099-01 SCREW (CASE 3 TP2)
3 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (LX5) (15cm)
3 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
(LX6/LX30/LX50) (15cm)
4 1-693-484-11 TUNER (FM/AM) (LX6: E)
4 1-693-486-11 TUNER (FM/AM) (LX30/LX50)
4 1-693-488-11 TUNER (FM/AM)
(LX6: EA, MY, SP, MX, AR, AUS)
4 1-693-490-11 TUNER (FM/AM) (LX5)
5 4-956-370-12 BAND, PLUG FIXED (UK)
6 1-535-706-21 PLUG, JUMPER (LX5/LX6: MX/LX30/LX50)
7 4-225-528-01 PANEL, BACK (LX50: US)
7 4-225-528-11 PANEL, BACK (LX30)
7 4-225-528-21 PANEL, BACK (LX5)
7 4-225-528-31 PANEL, BACK (LX6: E, AR)
7 4-225-528-41 PANEL, BACK (LX6: EA, MY, SP, MX, AUS/
LX50: CND)
M901 1-763-072-11 FAN, D.C.
2
2
1
#1
#3
#3
#3
M901
#3
#3
#3
#3
#3
#3
#3
#2
#3
LX50
LX5/LX6: MX/
LX30/LX50
UK
not
supplied
Front panel
7
6
5
4
3
To Next Page
