HCD-GX355/GX555/RG270/RG475/RG575
11
1
connector
(CN906)
2
connector
(CN903)
3
connector
(CN901)
5
connector
(CN041)
6
two screws (B3)
7
two screws (B3)
8
back panel section
4
wire (flat type) (15 core)
(CN381)

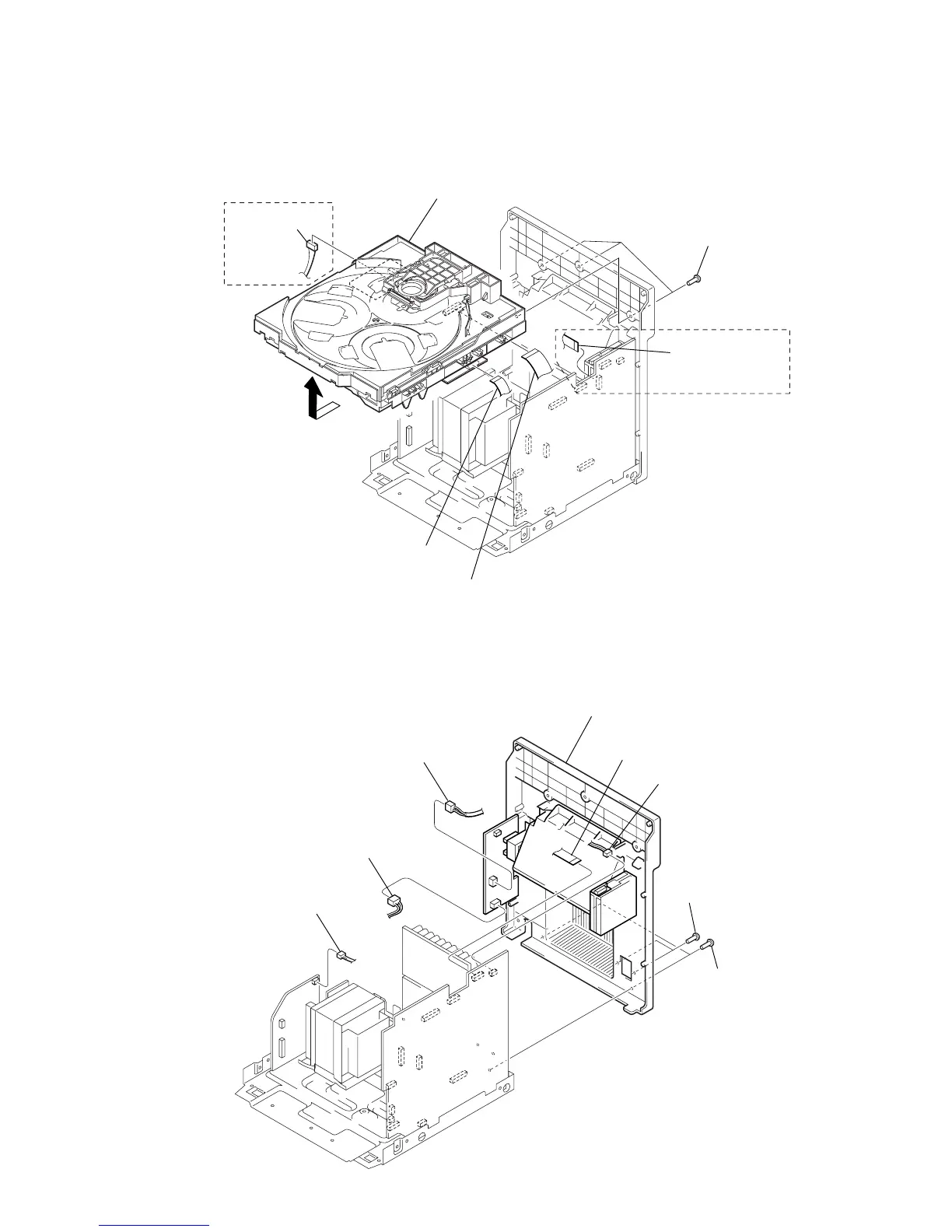

3-6. CD MECHANISM DECK
(CDM74KFS-F1BD81C (EXCEPT MX MODEL)/CDM74KFS-F1BD84 (MX MODEL))
3-7. BACK PANEL SECTION
(MX)
(MX)
1
three screws (B3)
3
wire (flat type) (13 core) (CN701)
6
connector
(CN1004)
7
CD mechanism deck
(CDM74KFS-F1BD81C (except MX)/CDM74KFS-F1BD84 (MX))
4
wire (flat type) (27 core) (CN201) (Except MX)
wire (flat type) (31 core) (CN201) (MX)
5
wire (flat type)
(13 core) (CN331)
2
•
Abbreviation
MX : Mexican model
Ver. 1.1
