Sony HCD-RG270 Service Manual

68
HCD-GX355/GX555/RG270/RG475/RG575

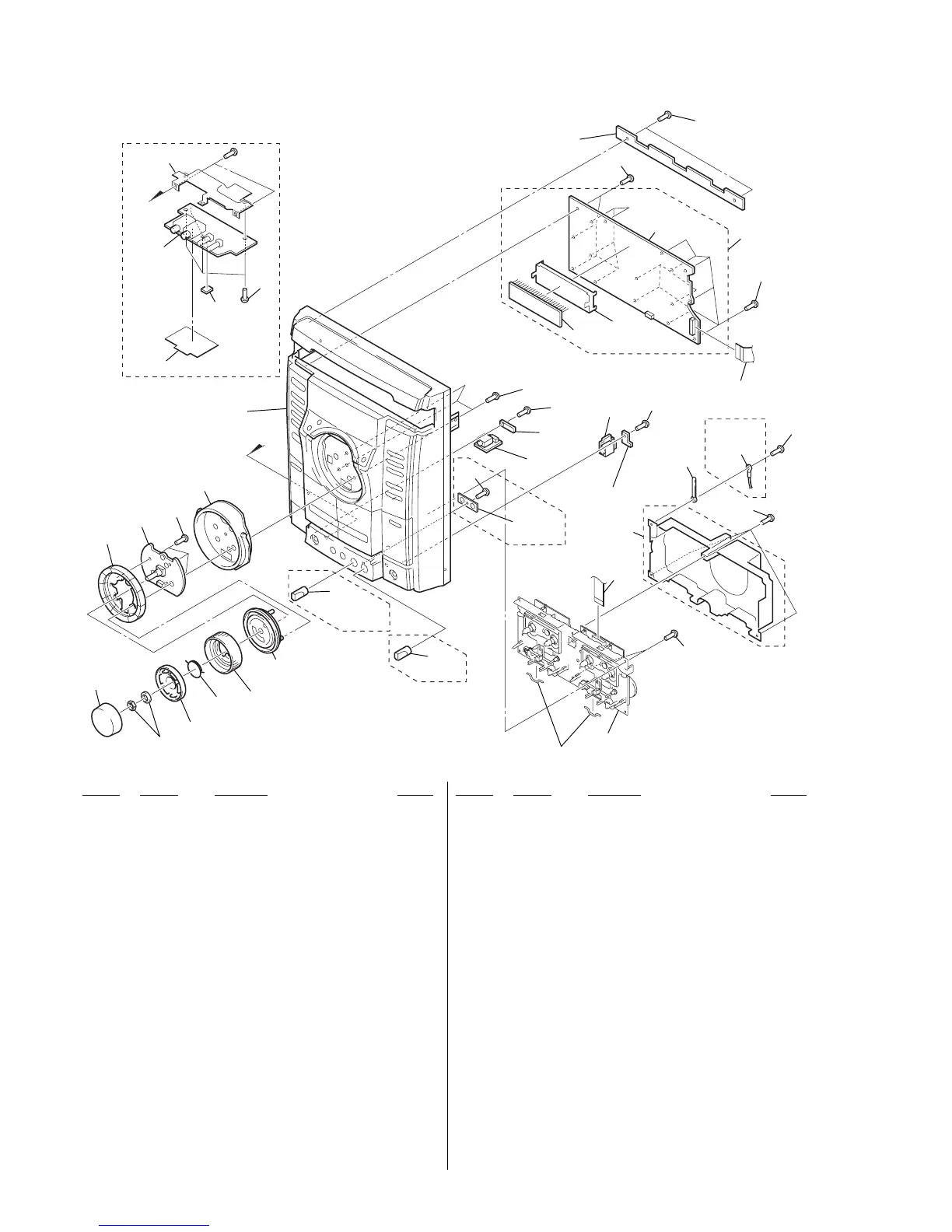

7-3. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-252-214-01 KNOB, VOLUME
102 2-348-884-01 RING (JOG)
103 2-348-875-11 KNOB (JOG)
104 2-586-559-01 KNOB (MIC) (E2, E51, MX, AR, SP)
105 A-1093-874-A VOL BOARD, COMPLETE
(GX355/RG270/GX555/RG475)
105 A-1093-878-A VOL BOARD, COMPLETE (RG575)
106 2-348-870-01 KEY (PLAY) (ALBUM –, ALBUM +, m, M,
l – EQ + L – TUNING +,
EQ BAND, N, X, x)
107 2-348-874-01 COVER (CENTER)
108 X-2067-233-1 WINDOW (CENTER) ASSY
(GX555/RG475/RG575)
108 X-2067-234-1 WINDOW (CENTER) ASSY (GX355/RG270)
109 4-951-620-01 SCREW (2.6X8), +BVTP
110 A-1094-194-A MIC BOARD, COMPLETE (RG270: E2, E51, AR)
110 A-1094-196-A MIC BOARD, COMPLETE (RG270: MX)
110 A-1094-199-A MIC BOARD, COMPLETE (RG575: E2, E51, AR)
110 A-1094-200-A MIC BOARD, COMPLETE (RG575: MX)
111 A-1093-848-A PANEL BOARD, COMPLETE (GX555/RG475)
111 A-1093-850-A PANEL BOARD, COMPLETE (GX355/RG270:
AEP, UK, EE, RU, E2, E3, E51, EA, AR, AUS)
111 A-1093-851-A PANEL BOARD, COMPLETE (RG270: MX)
111 A-1093-855-A PANEL BOARD, COMPLETE (RG575: MX)
111 A-1116-669-A PANEL BOARD, COMPLETE
(RG575: E2, E51, AR, SP)
112 2-348-856-01 FL GUIDE
113 1-829-003-11 WIRE (FLAT TYPE) (19 CORE)
114 A-1094-028-A AUDIO IN BOARD, COMPLETE
(GX355/RG270/GX555/RG475)
114 A-1094-031-A AUDIO IN BOARD, COMPLETE (RG575)
115 A-1094-404-A HEADPHONE BOARD, COMPLETE
(GX355/RG270/GX555/RG475)
115 A-1094-407-A HEADPHONE BOARD, COMPLETE (RG575)
116 1-828-973-11 WIRE (FLAT TYPE) (13 CORE)
117 4-951-620-01 SCREW (2.6X8), +BVTP (EXCEPT MX)
117 4-951-620-11 SCREW (2.6X8), +BVTP (MX)
118 1-796-485-51 DECK, MECHANICAL (CWM43FF13)
119 4-252-223-01 SPRING, KNOB
120 4-233-372-02 FOOT (FELT) (E2, E51, AR, MX)
122 3-254-142-01 SCREW (B3), (+) BV TAPPING
123 2-632-080-01 SHEET (MIC), SHIELD (E2, E51, AR, MX)
FL701 1-518-976-31 INDICATOR TUBE, FLUORESCENT
#3 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
101
106
105
109
108
109
109
111
122
102
119
103
107
104
104
not
supplied
(E2, E51, AR, MX)
key section
not
supplied
PANEL
board
FL701
not
supplied
not
supplied
(MX)
(EXCEPT MX)
not
supplied
not
supplied
not
supplied
109
112
113
109
114
115
109
109
116
109
118
117
not
supplied
117
not supplied
(MX)
(E2, E51, AR,
SP, MX)
110
109
120
123
(E2, E51, AR, MX)
not supplied
#3
Ver. 1.2
