92
HCD-X1

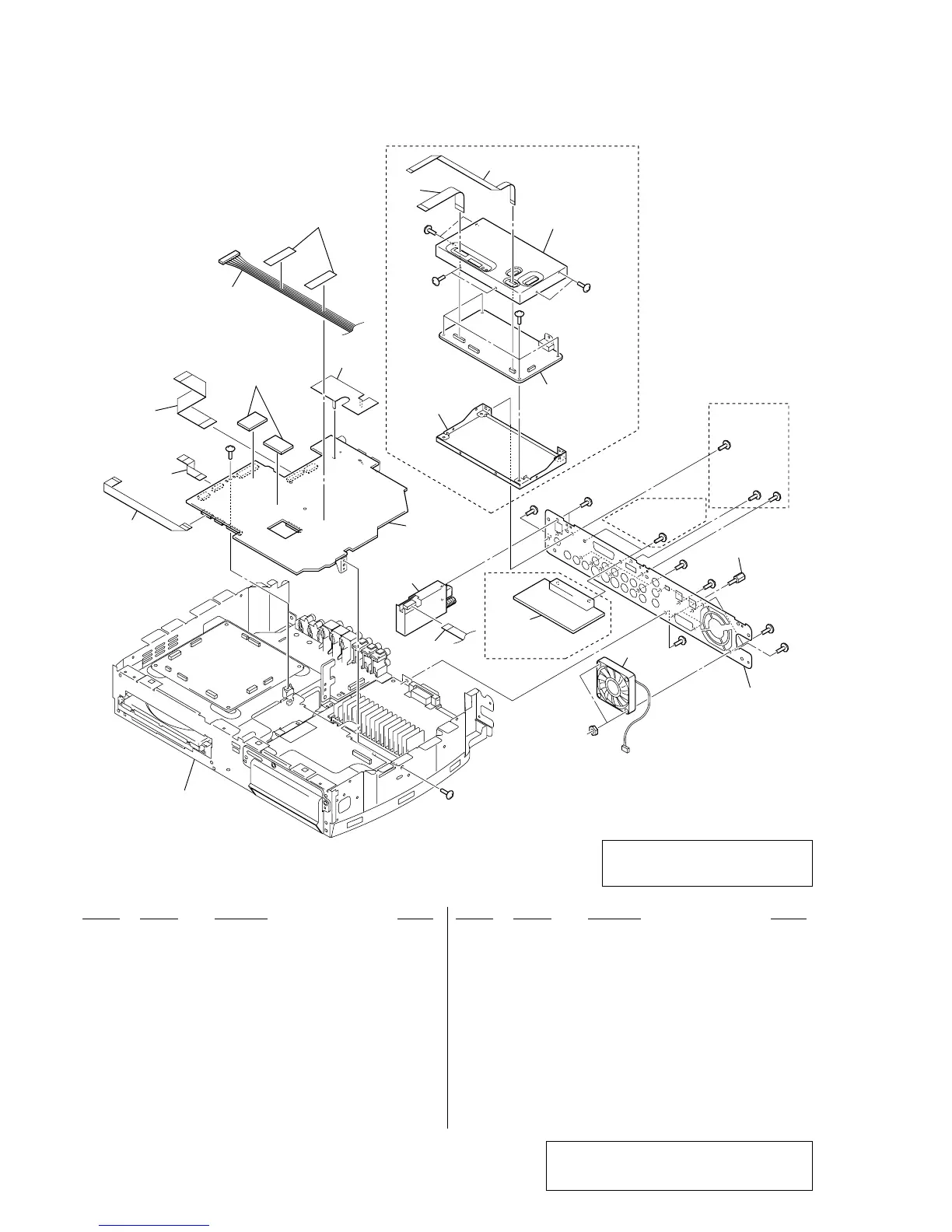

7-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-1107-205-A MAIN BOARD, COMPLETE (US, CND)
101 A-1107-206-A MAIN BOARD, COMPLETE (AEP, UK)
101 A-1107-207-A MAIN BOARD, COMPLETE (RU)
101 A-1108-015-A MAIN BOARD, COMPLETE (SP)
102 1-828-190-51 WIRE (FLAT TYPE) (12 CORE) (US, CND)
103 A-1124-330-A SCART BOARD, COMPLETE (AEP, UK, RU)
104 1-693-669-11 TUNER UNIT (TM-10CE) (AEP, UK, RU)
104 1-693-671-11 TUNER UNIT (TM-10E) (SP)
104 1-693-672-11 TUNER UNIT (TM-10U) (US, CND)
105 1-828-320-11 WIRE (FLAT TYPE) (11 CORE)
106 1-828-316-11 WIRE (FLAT TYPE) (11 CORE)
107 1-827-731-11 WIRE (FLAT TYPE) (11 CORE) (AEP, UK, RU)
107 1-828-957-11 WIRE (FLAT TYPE) (9 CORE) (US, CND, SP)
108 1-828-359-11 WIRE (FLAT TYPE) (19 CORE)
109 1-828-266-51 WIRE (FLAT TYPE) (28 CORE) (US, CND)
110 3-378-109-12 CUSHION, SARANET
◊ 111 A-1124-106-A MIB01 BOARD, COMPLETE (for SERVICE)
(US, CND)
M450 1-787-331-11 FAN, D.C.
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-684-023-04 N 3, TYPE 2
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
#5 7-682-151-01 SCREW +P 3X14
#6 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
101
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#6
#3
#4
#5
not supplied
not
supplied
not supplied
not supplied
not supplied
POWER-AMP board,
chassis section
M450
supplied with
CN300
not supplied
102
(US, CND)
(US, CND)
(AEP, UK, RU)
(AEP, UK, RU)
103
104
105
106
107
108
109
110
111
Ver. 1.2
◊ Please refer to "NOTE OF HANDLING THE MIB01
BOARD (Part No. A-1124-106-A)" on the service
note (Page 6) for handling of this board.
Note: If the wire (flat type) was replaced,
fold it same as the wire (flat type)
before replacement.
To Next Page
