14
Overview / Using the CD-ROM manual / Specifications
Overview
The HDCU2000/2500 Camera Control Unit is connected to a
Sony HD-series high-definition video camera. It carries out
signal processing and provides an interface for external
equipment.
Using the CD-ROM
manual
The manual can be read on a computer with Adobe Reader
installed.
You can download Adobe Reader free from the Adobe
website.
1 Open the index.html file in the CD-ROM.
2 Select and click on the manual that you want to read.
Note
If you have lost or damaged the CD-ROM, you can purchase
a new one from your Sony dealer or Sony service counter.
Specifications
HDCU2000
General
Power supply 100/120/220-240 V AC, 50/60 Hz
(To change to a different power supply,
contact a Sony service or sales
representative.)
Current consumption 5.4 A (max.)
Inrush current (1)Maximum possible inrush current at
initial switch-on (Voltage changes caused
by manual switching):
57 A peak, 15 A r.m.s. (240V AC)
(2)Inrush current after a mains interruption
of five seconds (Voltage changes caused at
zero-crossing):
42 A peak, 12 A r.m.s. (240V AC)
Operating temperature +5°C to +40°C (+41°F to 104°F)
Storage temperature –20°C to +60°C (–4°F to 140°F)
Mass Approx. 17.5 kg (38 lb 9 oz)

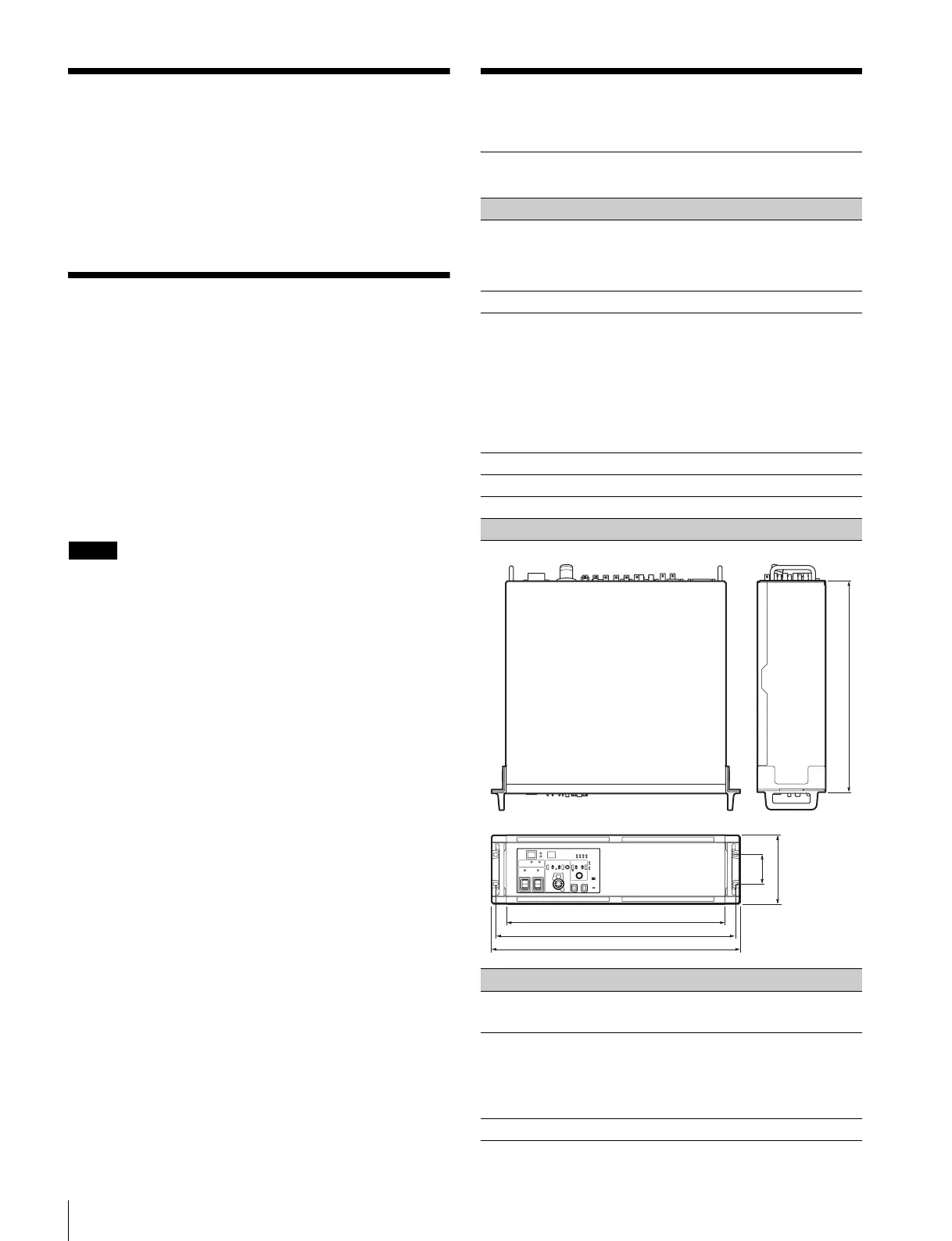

Dimensions (Unit: mm (inches))
Input/Output connectors
CAMERA Optical fiber connector (1)
240 V AC power supply
INTERCOM/TALLY/
PGM
D-sub 25-pin connector (1)
• INTERCOM (PROD/ENG), 4W/RTS/CC,
0 dBu
• PGM, 2 systems, 0 dBu/–20 dBu
• TALLY (R, G, Y)
RCP/CNU 8-pin multi-connector (1)
424 (16
3
/
4
)
410.0 (16
1
/
4
)
52.7 (2
1
/
8
)
465 (18
3
/
8
)
481 (19)
133 (5
1
/
4
)
To Next Page
