16
Specifications
Design and specifications are subject to change without
notice.
HDCU2500
Related devices
HDC2000/2500 series Color Video Camera
RCP-1000 series Remote Control Panel
MSU-1000 series Master Setup Unit
CNU-700 Camera Command Network Unit
HZC-CSM10 Camera System Management Software
General
Power supply 100 to 240 V AC, 50/60 Hz
Current consumption 4.1 A (max.)
Standby power Approx. 5 W
Inrush current (1)Maximum possible inrush current at
initial switch-on (Voltage changes caused
by manual switching):
82 A peak, 9 A r.m.s. (240V AC)
(2)Inrush current after a mains interruption
of five seconds (Voltage changes caused at
zero-crossing):
15 A peak, 5 A r.m.s. (240V AC)
Operating temperature –10°C to +40°C (+14°F to 104°F)
Storage temperature –20°C to +60°C (–4°F to 140°F)
Mass Approx. 6.7 kg (14 lb 12 oz)

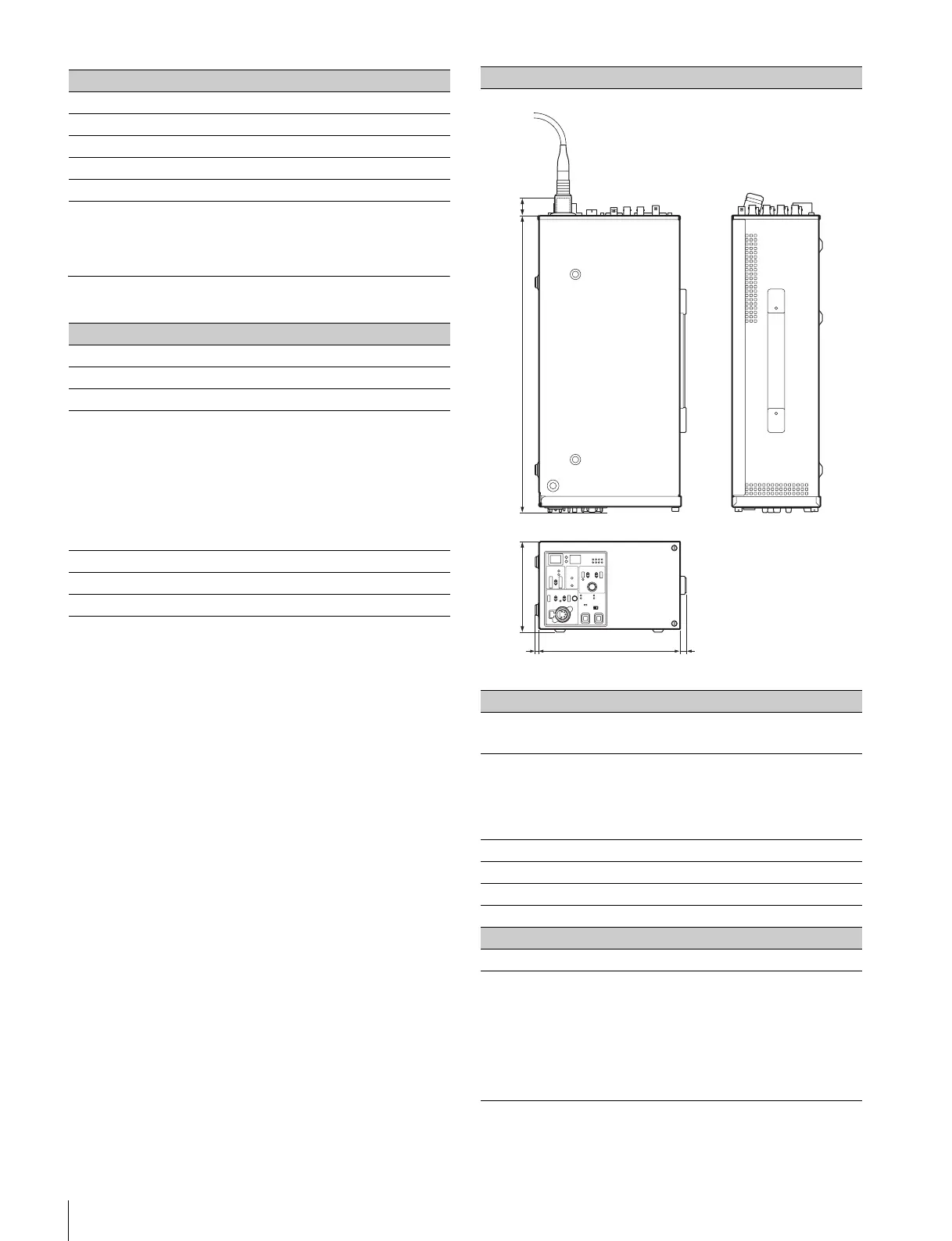

Dimensions (Unit: mm (inches))
Input/Output connectors
CAMERA Optical fiber connector (1)
180 V DC power supply
INTERCOM/TALLY/
PGM
D-sub 25-pin connector (1)
• INTERCOM (PROD/ENG), 4W/RTS/CC,
0 dBu
• PGM, 2 systems, 0 dBu/–20 dBu
• TALLY (R, G, Y)
RCP/CNU 8-pin multi-connector (1)
TRUNK A 12-pin (1)
LAN 8-pin (1)
NETWORK TRUNK 8-pin (1)
Input connectors
AC IN (1), 100 to 240 V AC
RET 1, 2, 3 BNC-type (3)
3G-SDI: SMPTE 424M/425M, 2.970 Gbps/
2.967 Gbps
HD-SDI: SMPTE 292M,
1.485 Gbps/1.4835 Gbps
SD-SDI: SMPTE 259M, 270 Mbps
VBS: 1.0 Vp-p, 75 ohms
HD CAMERA CONTROL UNIT
410 (16
1
/
4
)
200 (7
7
/
8
)
5 (
7
/
32
)
30 (1
3
/
16
)127 (5)
9 (
3
/
8
)
