When these boards are installed in the front and rear
expansion slots of the unit, the number of 3G/HD-SDI output
connectors increases by four. These can also be installed on
HDCU2000/2500’s expansion slots.
The format of SDI signals output via each upper/lower pair of
connectors on the HIF board can be set.
For details on installation, contact a Sony service or sales
representative.

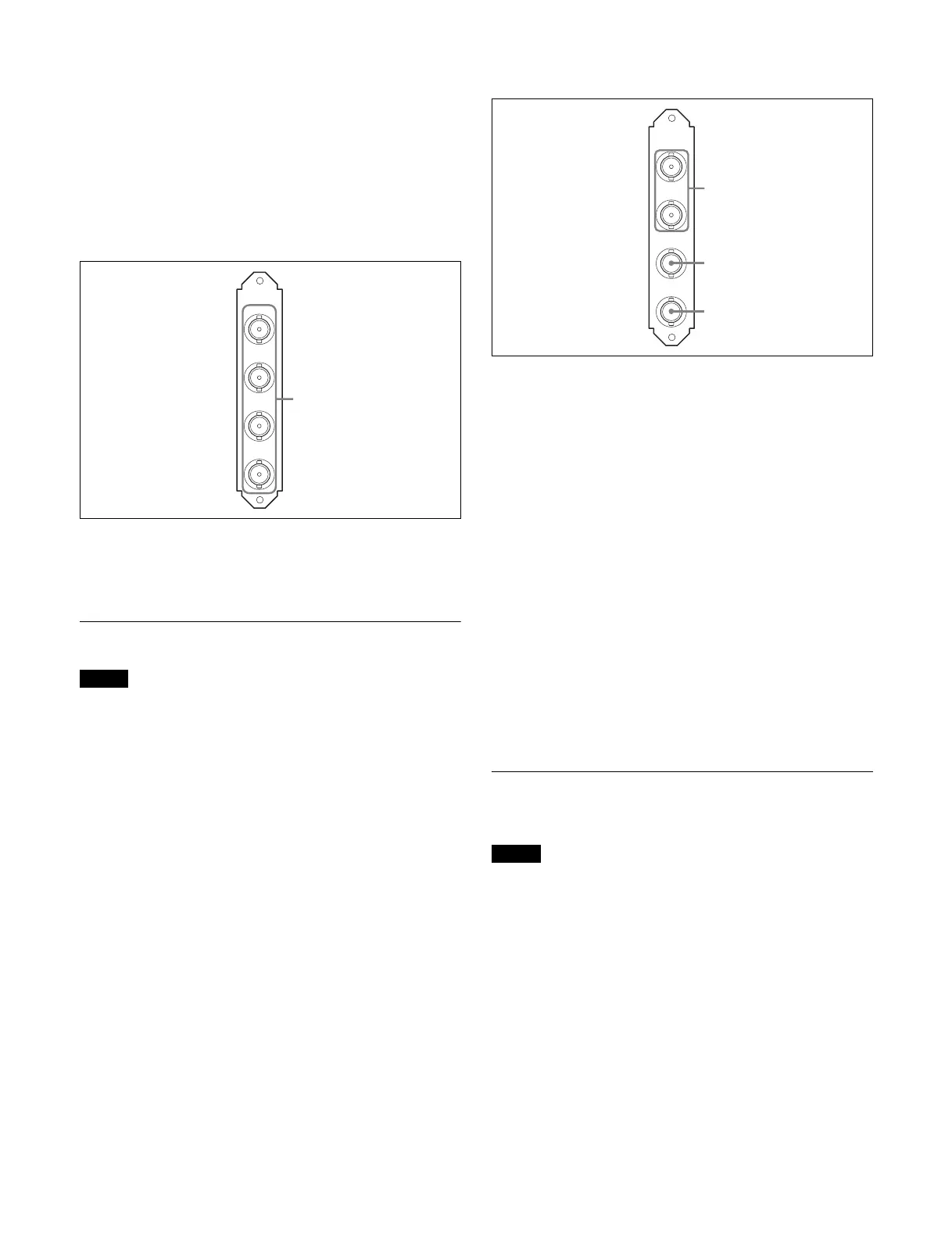

HIF-57 Board
a SDI OUT 1, 2, 3, 4 (3G/HD serial digital interface output
1-4) connectors (BNC-type)
The signal from the video camera may be output as four 3G-
SDI or HD-SDI signals.
HKCU1001 SD Encoder Unit (optional)
Note
To reduce the risk of electric shock, fire or injury, do not open
the cabinet. To adjust the internal settings, refer to qualified
service personnel.
The HKCU1001 consists of an EN-A front board and a VDA-A
rear board.
When these boards are installed in the front and rear
expansion slots of the unit, the unit outputs SD composite
signals, waveform monitor output signals, and picture monitor
output signals through the VDA-A board’s connectors.
For details on installation, contact a Sony service or sales
representative.
VDA-A Board
a VBS 1, 2 (composite video output 1, 2) connectors
(BNC-type)
The signal from the video camera may be output as two
analog composite signals.
b PIX OUT (picture monitor output) connector (BNC-
type)
Outputs the video signal for a picture monitor selected with the
PICTURE MONITOR button of an RCP-1000 series Remote
Control Panel or MSU-1000 series Master Setup Unit.
Character signals or marker signals can be superimposed on
the video signal output through this connector.
For details on these operations, refer to the Master Setup Unit
or Remote Control Panel manuals.
c WF OUT (waveform monitor output) connector (BNC-
type)
Outputs the video signal for a waveform monitor selected with
the WF MONITOR button of an RCP-1000 series Remote
Control Panel or MSU-1000 series Master Setup Unit.
For details on these operations, refer to the Master Setup Unit
or Remote Control Panel manuals.
HKCU1003 Multi Interface Unit
(optional)
Note
To reduce the risk of electric shock, fire or injury, do not open
the cabinet. To adjust the internal settings, refer to qualified
service personnel.
The HKCU1003 consists of an EN-B front board and three
VDA rear boards (A/B/C).
When the EN-B board and one of the VDA rear boards are
installed in the front and rear expansion slots of the unit, the
unit inputs or outputs the following signals.
• Outputs SD composite signals, waveform monitor output
signals, and picture monitor output signals through a VDA-
A board.
• Inputs/outputs the frame sequence signal when operating a
24P system through a VDA-B board.
1
3
2
4
SDI OUT
1
VDA-A
1
2
PIX
OUT
WF
OUT
VBS
1
2
3
To Next Page
