HDCU2500
HD/SD SDI OUTPUT
(MONI)
BNC-type (2)
HD-SDI: SMPTE ST292, 0.8 Vp-p,
75 ohms, 1.485 Gbps/1.4835 Gbps
SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 ohms,
270 Mbps
HD-SDI/SD-SDI and character ON/OFF
selectable
SYNC BNC-type (1)
HD: BTA-S001, tri-level sync, 0.6 Vp-p,
75 ohms
SD: composite sync, 0.3 Vp-p, 75 ohms
HD SYNC/SD SYNC selectable
HD TRUNK OUT BNC-type (1)
SMPTE ST292, 0.8 Vp-p, 75 ohms,
1.485 Gbps/1.4835 Gbps (Available only
when camera single link format is selected.)
Supplied accessories
Number plates (1 set)
Fuses (1 set)
Operation guide (1)
Operation manual (CD-ROM) (1)
Optional accessories
AC power cord:
USA and Canada: 1-551-812-XX
Other countries: 1-782-929-XX
Power cord plug holder
USA and Canada: 2-990-242-01
Other countries: 3-613-640-01
HKCU2040 4K/HDR Processor Board
HKCU2007 3G/HD SDI Output Expansion Unit
HKCU1001 SD Encoder Unit
HKCU1003 Multi Interface Unit
CCA-5-3 Connection Cable (3 meters/10 feet)
CCA-5-10 Connection Cable (10 meters/33 feet)
Expansion Board
Maintenance manual
Related devices
HDC2000/2500 series HD Color Camera
RCP-1000 series Remote Control Panel
MSU-1000 series Master Setup Unit
CNU-700 Camera Command Network Unit
HZC-CSM10 Camera System Management Software
General
Power supply 100 to 240 V AC, 50/60 Hz
Current consumption 4.1 A (max.)
Standby power Approx. 5 W
Operating temperature –10°C to +40°C (+14°F to 104°F)
Storage temperature –20°C to +60°C (–4°F to 140°F)
Mass Approx. 6.7 kg (14 lb 12 oz)

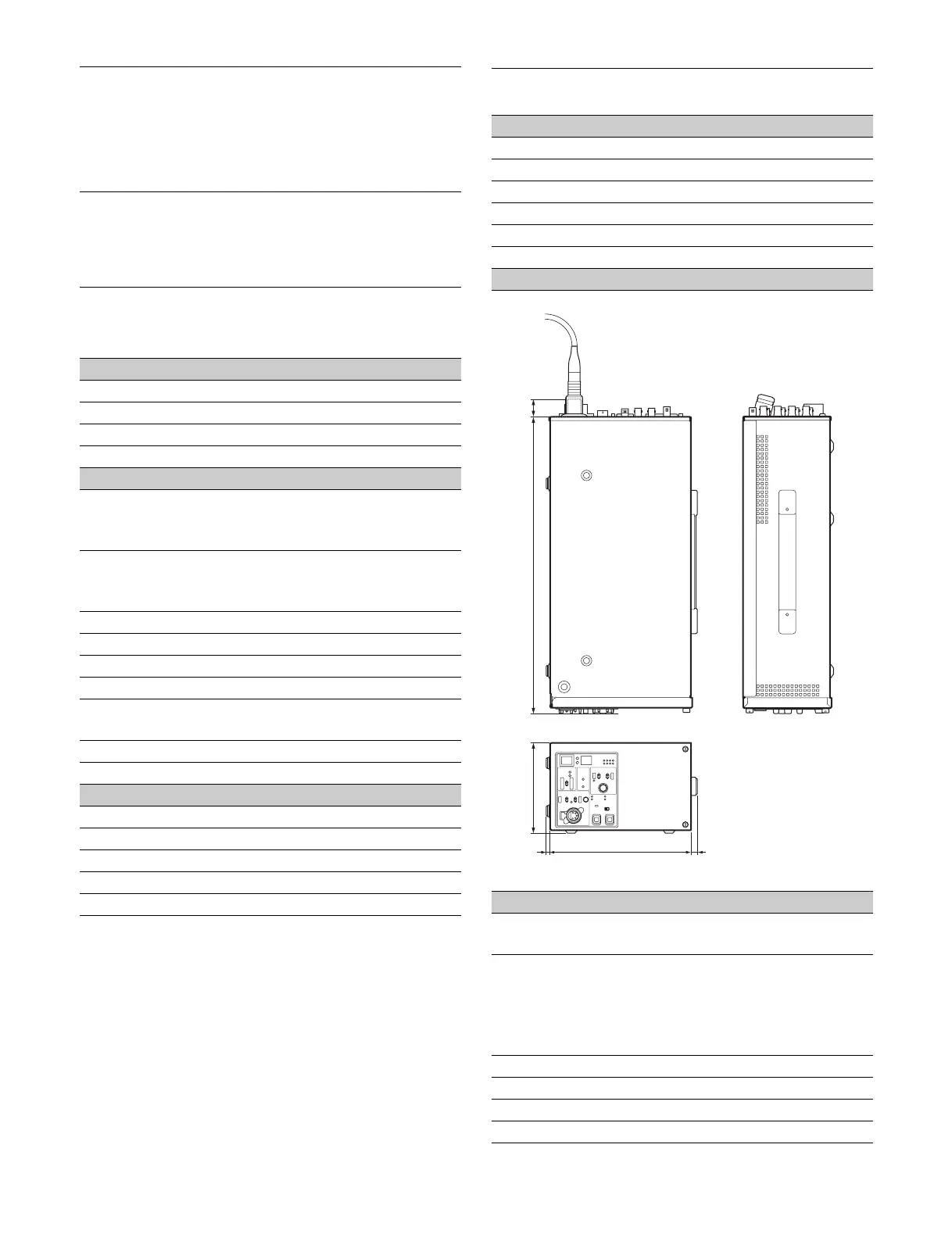

Dimensions (Unit: mm (inches))
Input/Output connectors
CAMERA Optical fiber connector (1)
180 V DC power supply
INTERCOM/TALLY/
PGM
D-sub 25-pin connector (1)
• INTERCOM (PROD/ENG), 4W/RTS/CC,
0 dBu
• PGM, 2 systems, 0 dBu/–20 dBu
• TALLY (R, G, Y)
•FLAG
RCP/CNU 8-pin multi-connector (1)
TRUNK A 12-pin (1)
LAN 8-pin (1)
NETWORK TRUNK 8-pin (1)
HD CAMERA CONTROL UNIT
410 (16
1
/
4
)
200 (7
7
/
8
)
5 (
7
/
32
)
30 (1
3
/
16
)127 (5)
9 (
3
/
8
)
