Sony HDCU2500 User Manual

21

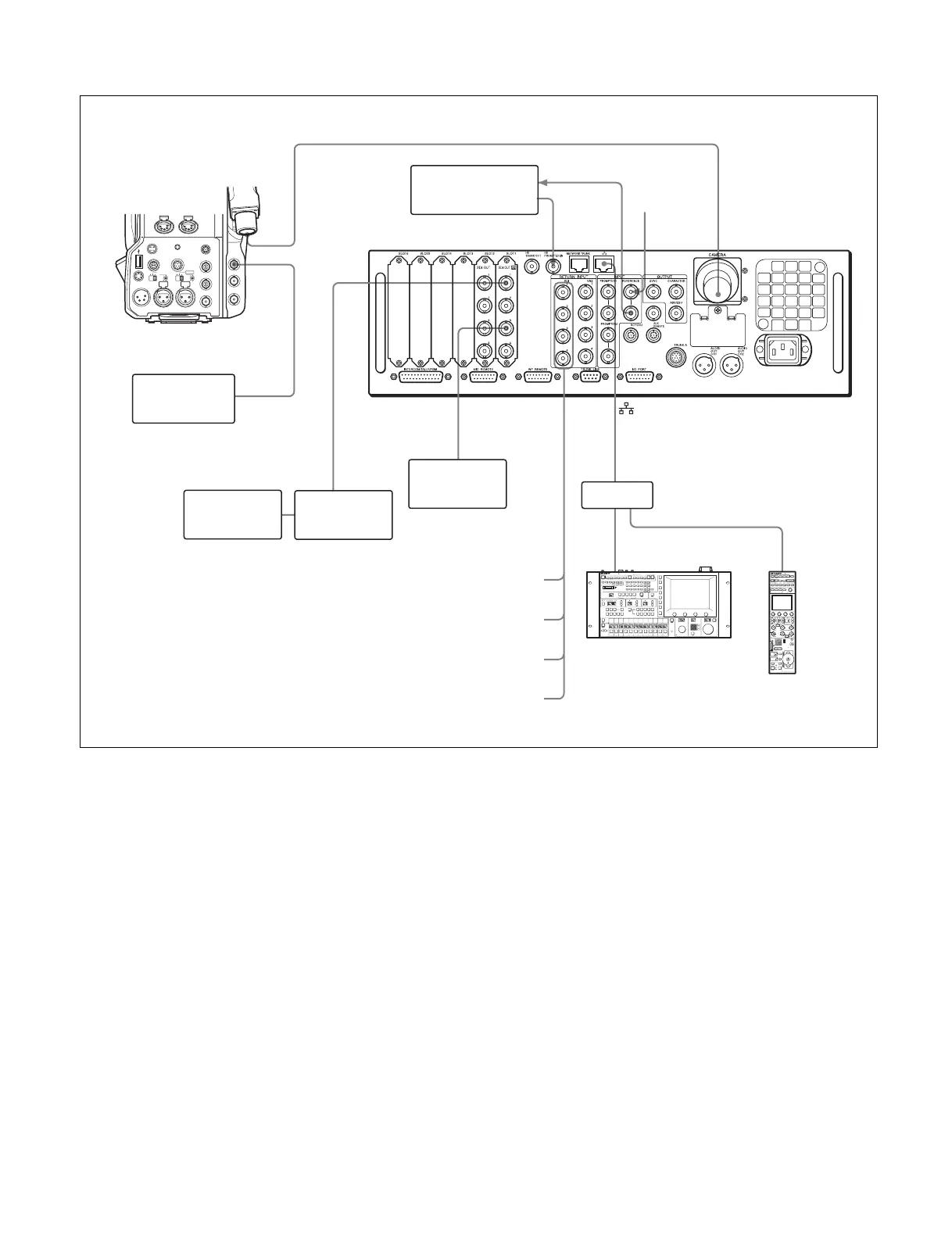

Connection example 2
Settings
Camera
MAINTENANCE menu, <SDI OUT> page:
Set SDI-1 OUT to HD PROMPTER.
Camera control unit
Format: Select a Dual Link format of 1080/59.94P or 1080/
50P.
INCOM
INTERCOM 1
PROD
LEVEL
REAR
FRONT
MIC
ON
OFF ENG
OFF
+48V
MIC
FRONT MIC
PROMPTER
/GEN
LOCK
RET CTRL
AUDIO IN
CH1 CH2
TEST
OUT
SDI
MONI
DC IN 10.5-17V
LINE
OFF
+48V
MIC
AES/EBU
LINE
INCOM
INTERCOM 2
EARPHONE
REMOTE
DC OUT
CRANETRACKER
PROD
LEVEL
REAR
FRONT
MIC
ON
OFF ENG
SDI OUT 3
(SLOT1)
SDI OUT 1
(SLOT1)
RETURN
INPUT
SDI 1-4
HD PROMPTER IN
SDI 1
CCU
CAMERA REFERENCE
HDC2500
HDCU2000
Optical fiber cable (High Bit Rate)
HD prompter source
(HD-SDI)
Prompter/
Floor monitor
VTR
Switcher
(3G-SDI)
Monitor
(3G-SDI)
Hub
Network cable
BNC cable (HD-SDI)
Reference
signal
MSU-1000/1500
Master Setup Unit
RCP-1500/1501/1530
Remote Control Panel
RET (SD-SDI/HD-SDI/3G-SDI)
RET (SD-SDI/HD-SDI/3G-SDI)
RET (SD-SDI/HD-SDI/3G-SDI)
RET (SD-SDI/HD-SDI/3G-SDI)
