1-3. METHOD OF COPING WITH SHIFT LENS ERROR
about 330 msec
Fig. 2
Change in output voltage of R5549 on the LD-241 board
Note: The length of low section will vary a little depending on the
conditions.
1-3-1. E : 62 : 02 [Abnormality of IC for Steadyshot] Occurred
Order Procedure
1 Turn the power OFF.
2
While measuring with an oscilloscope the output voltage of R5549 in the periphery of IC5501 on the LD-241 board, turn the
power ON to check that the output voltage immediately after the power on change as shown in Fig. 2.
3
If the output voltage change as shown in Fig. 2, replace the lens block (Note). If it does not change as shown in Fig. 2, inspect
the camera control circuit (IC1301 of VC-535 board) periphery.
Note: When the lens block was replaced, execute a necessary adjustment items referring to Service Manual, ADJ.
After the adjustment, make sure with the STEADYSHOT turned ON that the steadyshot functions appropriately in the
handheld operation.
Fig. 1

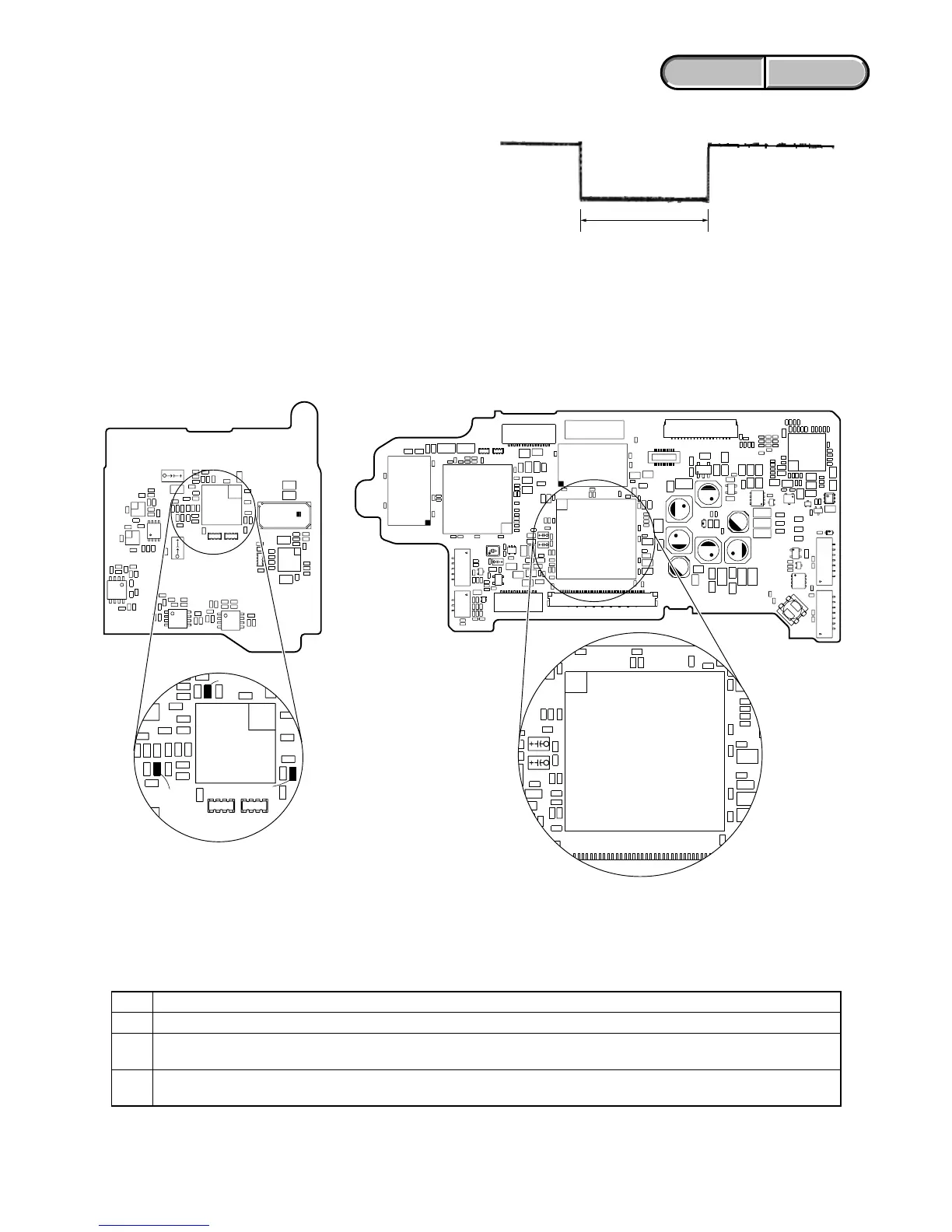

Measurement points on the LD-241 board and the VC-535 board
LD-241 BOARD (SIDE B) VC-535 BOARD (SIDE A)
