5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-CX11E/CX12/CX12E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
1 4-107-107-01 PLATE, L ORNAMENTAL (J)
1 4-107-107-11 PLATE, L ORNAMENTAL (EXCEPT J)
2 CAUTION TAPE (0716)
3 4-107-112-01 CABINET, HINGE (J)
3 4-107-112-11 CABINET, HINGE (EXCEPT J)

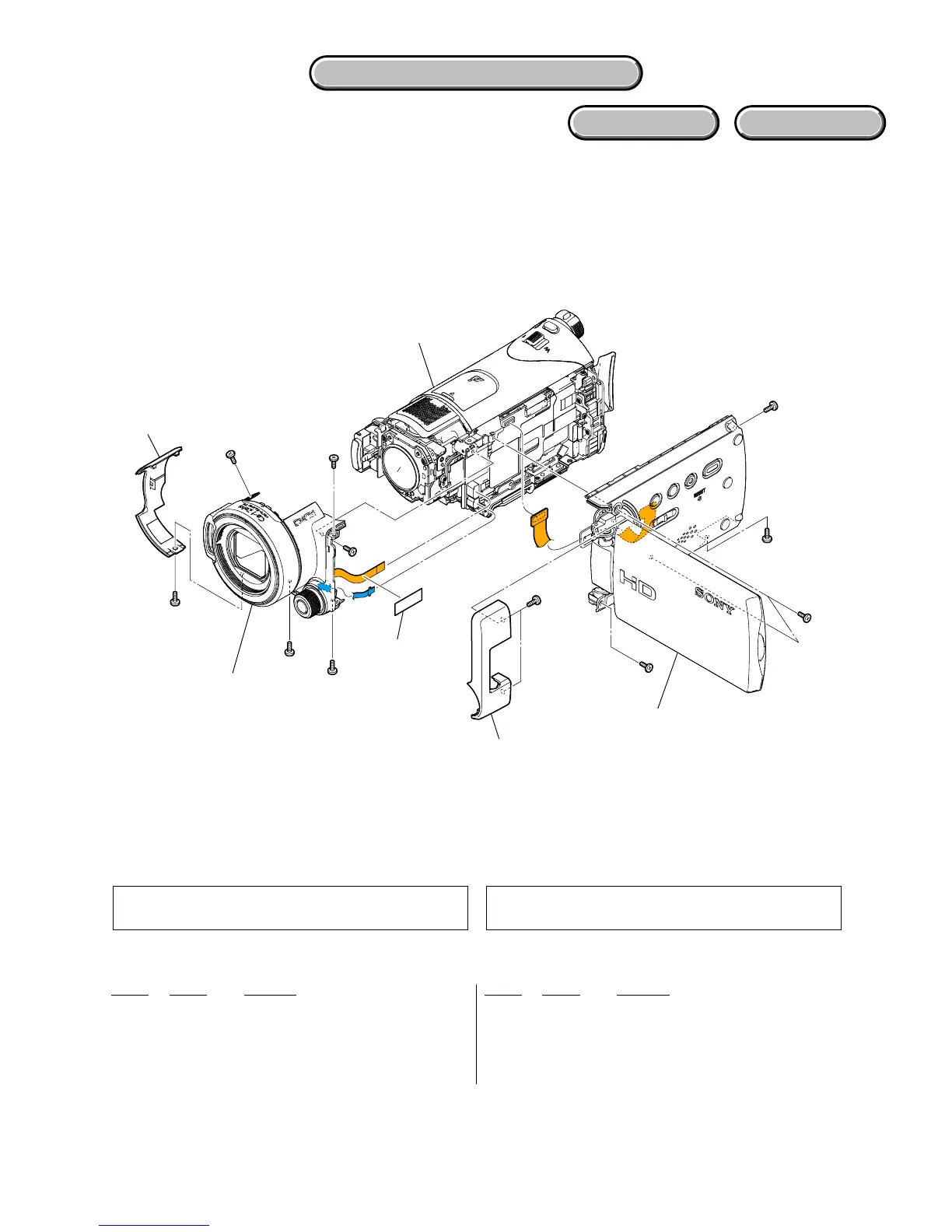

5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
HARDWARE LIST
#1 2-635-562-11 SCREW (M1.7) (Black)
#2 2-635-562-31 SCREW (M1.7) (Black)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
(7 x 16mm)
#2
#10
#2
#2
#2
#2
#2
#2
#2
#
#1
#14
#2
Main body section
(See page 5-6)
LCD panel section
(See page 5-4)
3
2
1
Front panel section
(See page 5-3)
注意： 2番は,T0.25ヒメロン(3-076-631-01)を切って使用して
ください。
CAUTION: For the part of 2, cut WOVEN (T0.25), FABRIC NON (3-
076-631-01) into the desired length and use it.
To Next Page
